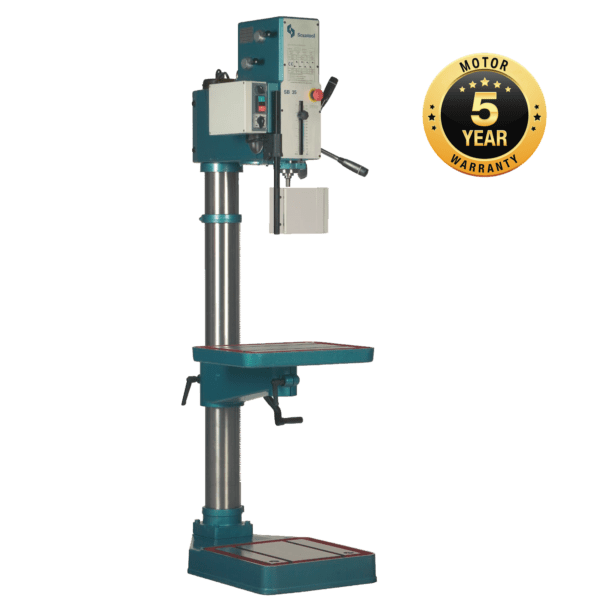

SB 40 Pillar Drill Gear Driven from Scantool

Product Code: 140603000

SCANTOOL offers a wide variety of top-quality European Gear Driven Pillar Drills models that have drilling capacities ranging from 1 mm to 40 mm. The extensive range of drill presses has a simple construction ensuring high quality, ease of operation, and long life. These industrial drills are designed for industrial use and in addition use top quality components only to guarantee a useful long life. The Scantool Pillar Drills from WorkshopPress.co.uk are competitively priced and designed to last. These models have a 5 Year Motor Guaranty, are CE certified, and come with a separate emergency stop.

    Specification Sheet Download Here
    SB40 Pillar Drill from WorkshopPress.co.uk by Scantool
    PRODUCT ENQUIRY
    • Description
    • Additional Info

    Technical specifications for SB 40 Pillar Drill Gear Driven from Scantool

    • Drive Mechanism: Gear Head
    • Automatic Feed: No
    • Max. drilling capacity: 42 mm
    • Max. spindle travel: 150 mm
    • Tapping Capacity: M16
    • Drill chuck: MT4
    • Column Diameter: 102 mm
    • Size of table: 405 x 505 mm
    • Table to Spindle Distance: 915 mm
    • Base to Spindle Distance: 350 mm
    • RPM: 75 to 3140
    • Number of Speeds – Spindle: 8
    • Number of Speeds – Motor: 2
    • Motor: 2.3 Hp
    • Power Requirement:
      400V, 50Hz, 3-Phase
    • Height: 1800 mm
    • Weight: 260 Kg
