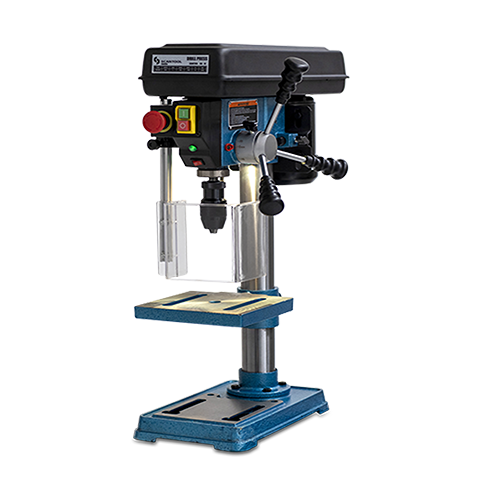

Scantool 13A • Benchtop Pillar Drill • 13 mm Capacity • V-Belt Driven
Please contact for prices
The Scantool 13A is a compact, high-quality benchtop pillar drill designed for maintenance workshops, educational facilities, fabrication shops and light industrial environments. Despite its compact footprint, the machine is equipped with a powerful 400W motor that provides reliable drilling performance across a wide range of materials.
Unlike many lightweight hobby machines, the Scantool 13A is built with durability and operator safety in mind. The machine features a keyless chuck for quick tool changes, an integrated work light for improved visibility and multiple safety systems including microswitch protection on both the chuck guard and belt cover.
With five spindle speeds ranging from 500 to 2500 rpm, the Scantool 13A provides excellent versatility for drilling operations in steel, aluminium, plastics and other engineering materials. Its stable construction, simple operation and robust design make it an excellent choice for schools, maintenance departments, workshops and general engineering applications.
Professional benchtop pillar drill with 13 mm drilling capacity, powerful 400W motor, 5 spindle speeds, keyless chuck, integrated work light and comprehensive safety features.
Specifications
- Model: Scantool 13A
- Article Number: 100761000
- Drilling Capacity: 13 mm
- Power Supply: 220V, 50Hz, 1-Phase
- Motor: 0.40 kW
- Drive: Belt Driven
- Speeds: 5
- Speed Range: 500-2500 rpm
- Chuck: 13 mm / B16
- Stroke: 50 mm
- Throat Depth: 130 mm
- Swing Capacity: 420 mm
- Table Size: 162 × 162 mm
- Base Size: 290 × 186 mm
- Maximum Table Load: 10 kg
- Floor / Bench: Bench
- Height: 730 mm
- Weight: 25 kg
Features
- Heavy-duty 400W motor.
- Keyless chuck supplied as standard.
- Integrated work light.
- Large chuck guard with safety microswitch.
- Spindle rotation indicator light.
- Belt cover fitted with safety switch.
- Stable cast construction.
- Simple and reliable operation.
- Suitable for workshop and educational environments.
- Manufactured using modern production methods.
Optional Equipment
- Drill Chuck Upgrades
- Keyless Drill Chucks
- Morse Taper Arbors
- Reduction Sleeves
- Machine Vices
- Cross-Slide Vices
- Twist Drill Sets
- Tapping Accessories
Pillar Drill Frequently Asked Questions
Find answers to common questions about drilling capacity, tapping, spindle tapers, drive systems, machine selection, installation and servicing.
Compact 5-speed bench drill press with Ø13 mm capacity, 230V power, and safety-focused design—perfect for hobby, school, and light-duty professional use.
