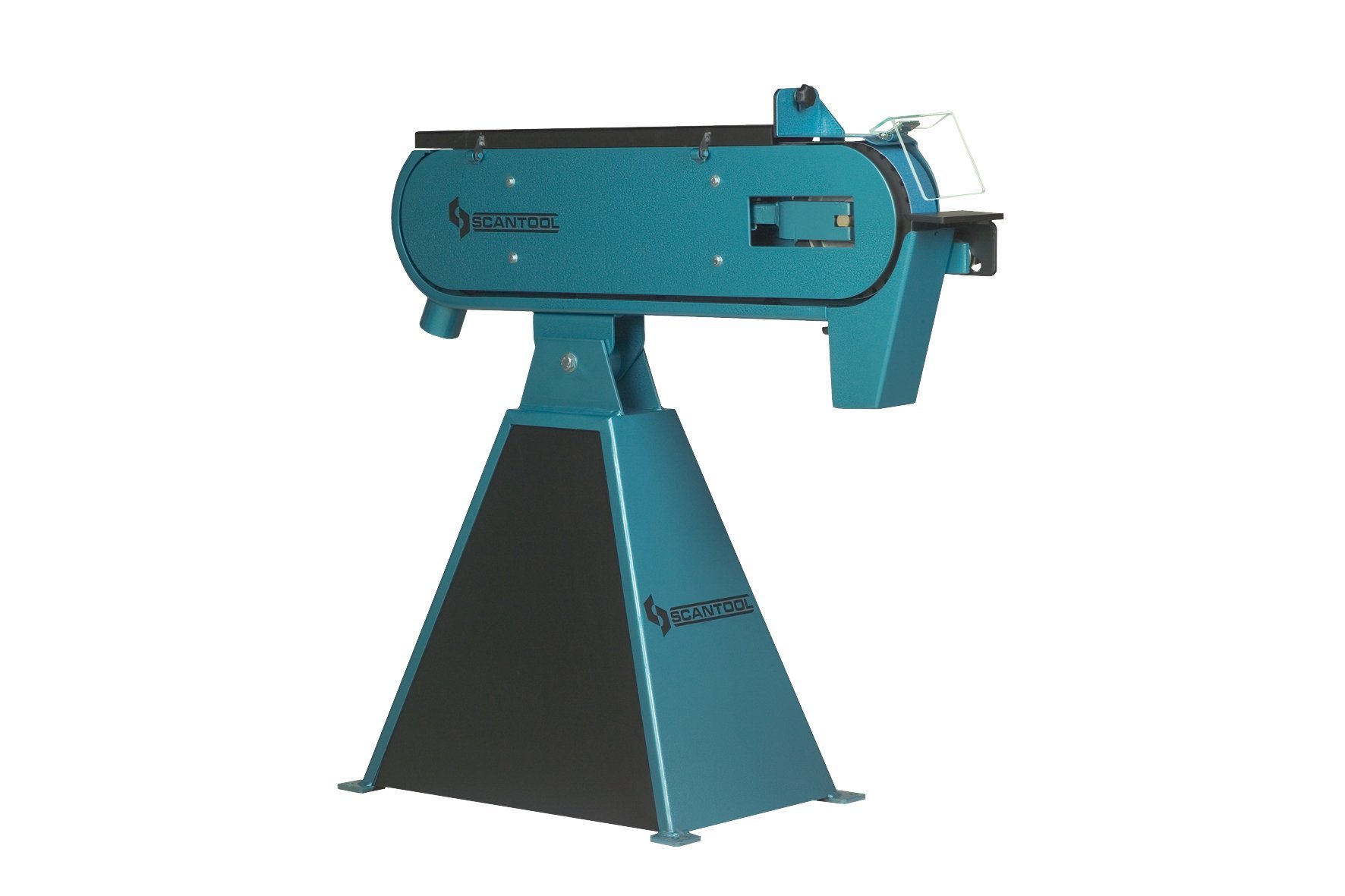

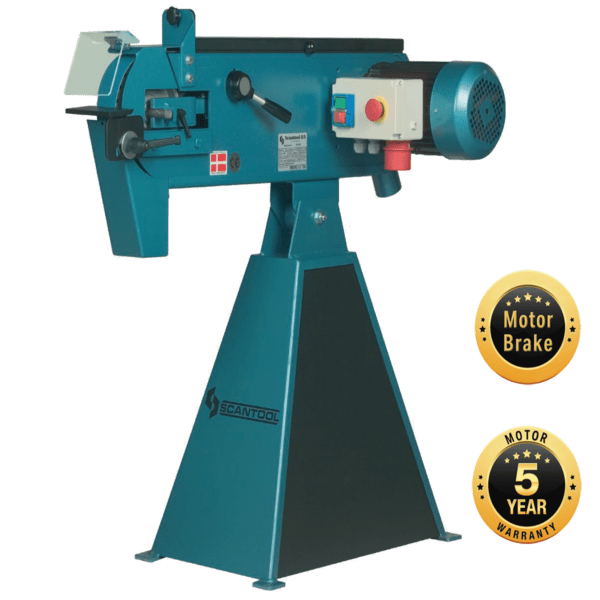

Scantool 50 Industrial Belt Grinder

Product Code: 430231120

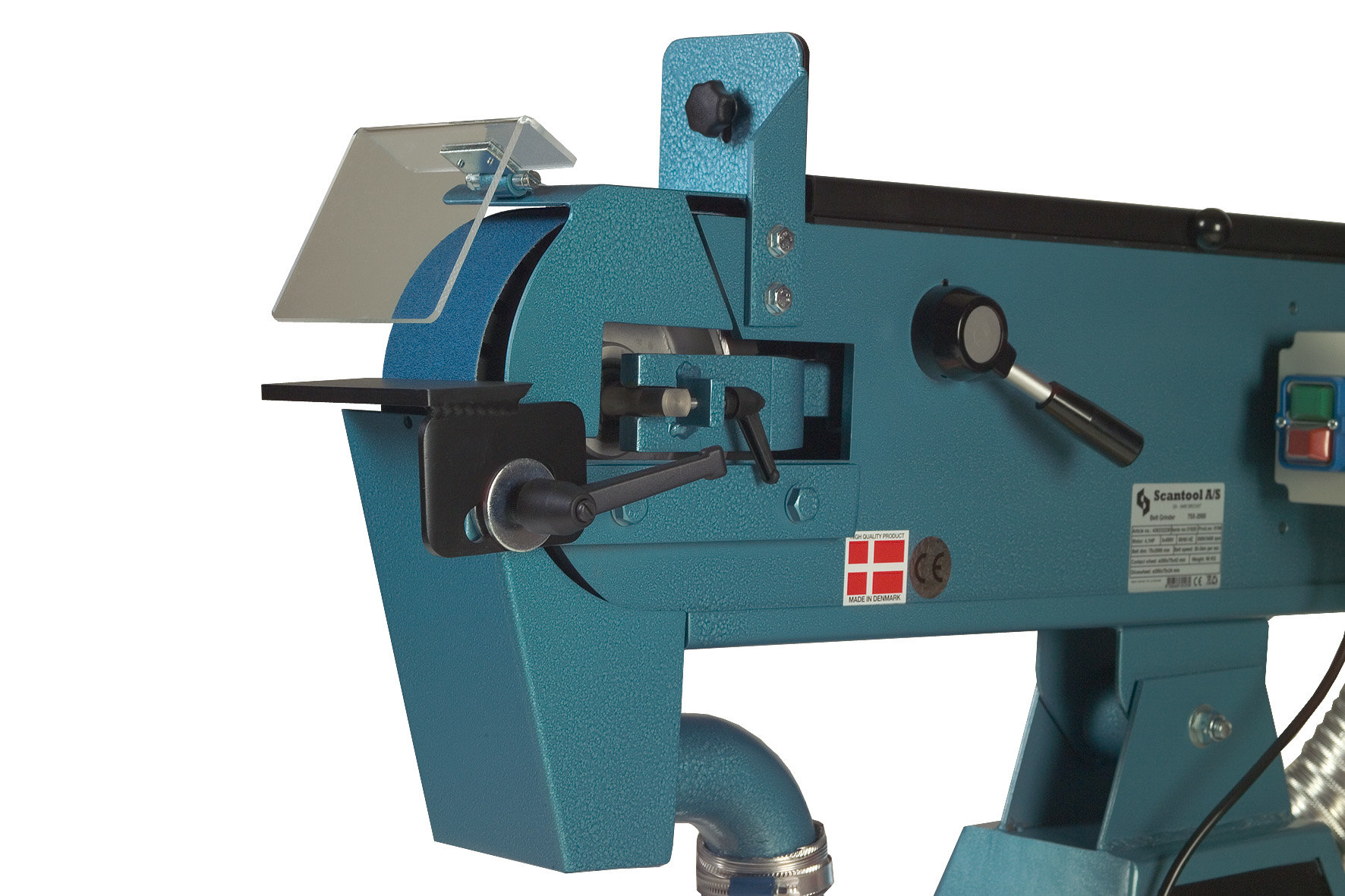

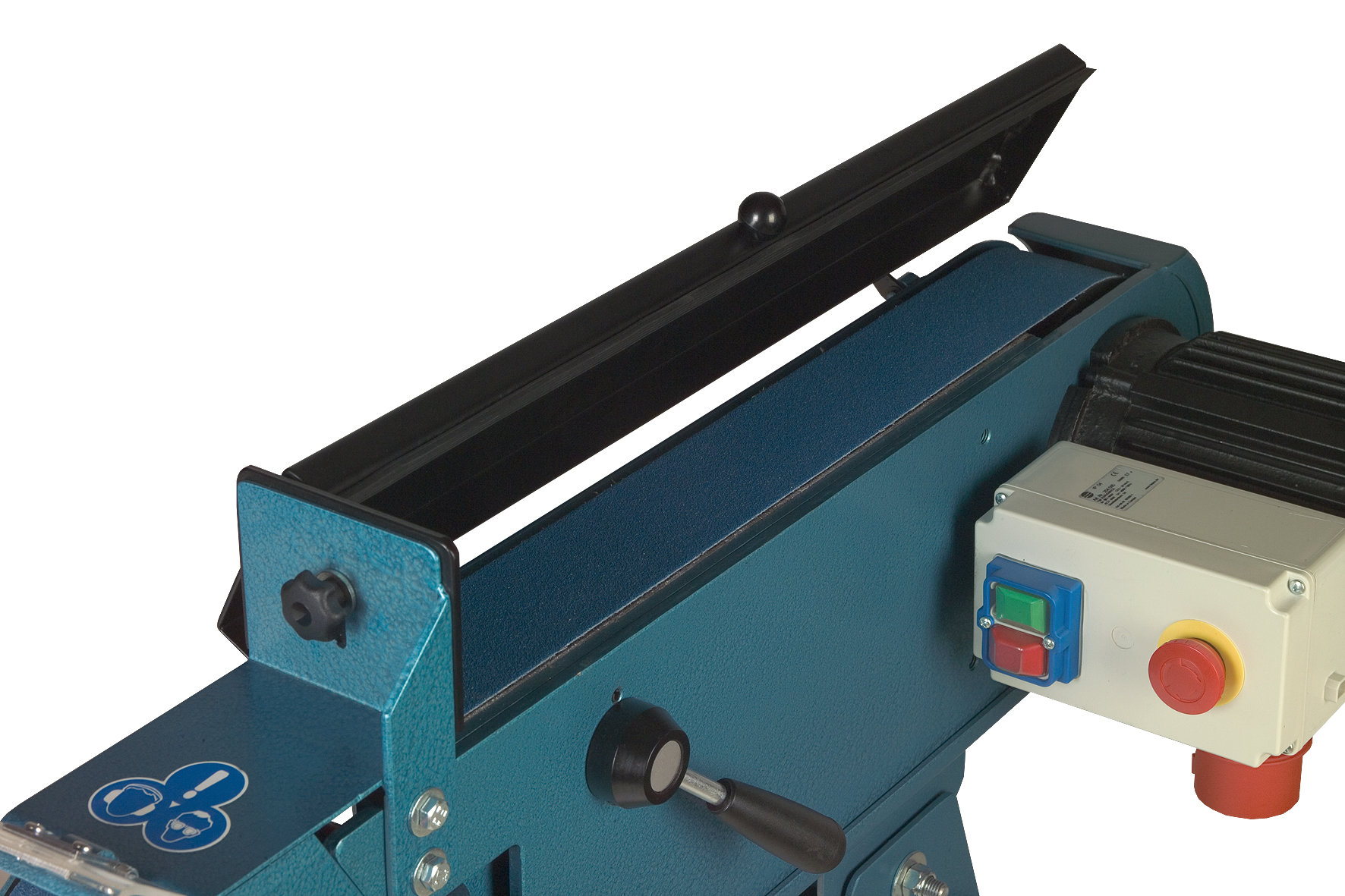

The Scantool 50 Industrial Belt Grinder comes with an adjustable tool rest along with a topside grinding surface that has a protective cover. The standard models come equipped with a port to assist with easy attachment of an optional Cyclone Dust Extraction Central Exhaust System. The 50 series Industrial Belt Grinders are equipped with a brake motor so ensuring you achieve maximum operator safety and in addition, it comes with an easily accessible emergency stop. As standard, it is outfitted with a detachable spark arrestor and an adjustable eye shield. All Scantool Industrial Belt Grinders are super reliable and are simple and practical to operate. An integrated belt travel adjustment ensures proper positioning of the belt and ensures a longer lifetime of the contact wheel. Being that the belt travel is adjustment is located near to the axle of the contact wheel makes easy for the operator to check the belt position before you start each grinding operation. Belt changes are a breeze due to the implementation of a quick belt release handle which enables the operator to change the grinding belt in just a few seconds and without using any tools. There is a large topside surface table and each belt grinder has an extra-large surface grinding table. These top-quality belt grinders have a large tilting radius allowing the operator to position the grinding head offers to an optimal working position. The contact wheels as a standard are delivered in 70 durometer. Harder or softer rubber wheels are available on request. All Scantool high-grade industrial belt grinders are built with only the best quality motors which enables us to offer a 5-year guarantee on the motor.

    Specification Sheet Download Here
    PRODUCT VIDEO
    Scantool 50 Industrial Belt Grinder from WorkshopPress.co.uk
    PRODUCT ENQUIRY
    • Description
    • Additional Info

    Technical specifications for Scantool 50 Industrial Belt Grinder

    • Grinding belt: 50 x 2000 mm
    • Voltage: 3-Ph 400V 50 Hz
    • Rpm: 3000
    • Contact Wheel size: 200 x 50 x 42 mm
    • Motor: 3.6 Hp
    • Grinding Table: 605 mm
    • Measurement. L x W x H: 1025 x 550 x 1000 mm
    • Weight: 70 Kg

    Belt Grinders

    Workshoppress.co.uk Belt Grinders for ferrous and non-ferrous metals[/caption]ool Industrial Belt Grinders are made for industrial purposes and all standard models come with an outlet to attach a central exhaust system. Scantool belt metal grinders are available with or without a powerful built-in double exhaust system (Systems with exhaust are designated by “X” at the end of the part number.) A dust bag is a standard accessory for all models. All grinding systems can be connected to the Scantool high-quality optional extra Scantool Cyclone Dust Collection System is designed to be the perfect solution for the trouble-free collection of dust. Grinding Systems with a standard Brake Motor provide you with maximum safety. All Scantool Industrial Grinding Systems are reliable, simple to use, offer practical operation, all adjustments are easy and quick to carry out including belt changeovers. All Belt Grinders from Scantool offer a 5-year guarantee on the motor.
