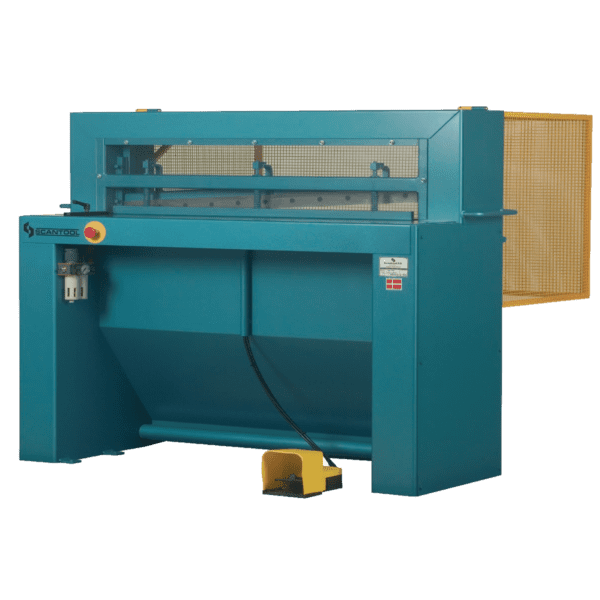

Scantool Pneumatic Guillotine Shear Model TSP-1300/2
Product Code: 530601800
The Scantool power shears are manufactured with an appropriate working height, self-lubricating guides, spherical ball bearings, and a large range of optional accessories is offered.
Scantool metal fabricating machines are manufactured in the EU with only the best materials and components.
Technical specifications for Scantool Pneumatic Guillotine Shear Model TSP-1300/2
Manual back gauge ✓
Capacity (mm) 1330×2,0
Cutting angle 3°
Cutting/min. 15
Machine height (mm) 1300
Machine length (mm) 1680
Machine width (mm) 1210
Net weight (kg) 310
Normal liter (air) per cycle 43
Pladeanslag (mm) 550
Side stop (mm) 200
Tank capacity (L) 80
Working width (mm) 1330
Features
Danish top quality and finish to the smallest details
Solid, compact welded steel construction
Operated pneumatically by a pedal
Cuts metal, plastic foil and other materials
Automatic sheet holder coated with neoprene rubber
Offers good visibility of the complete cutting length
The knives are made of strong tool steel, and are reversible which doubles the cutting surface
Has a sliding joint and the knife can be adjusted easily using the 6 Allen screws and counter nuts
Built in working light
Safety system according to CE Regulations
Emergency stop.
Working table with adjustable angle stop and safety stop.
Manual back gauge with millimetre gauge up to 550 mm.
Guillotine Shears
Guillotine Shears can be manually, electrically, or pneumatically powered and are designed to cut large pieces of sheet metal into smaller strips and shapes and cut in straight line. The capacity of metal guillotines shears vary greatly and their overall size and weight typically correlate with their top-end cutting capacity.
