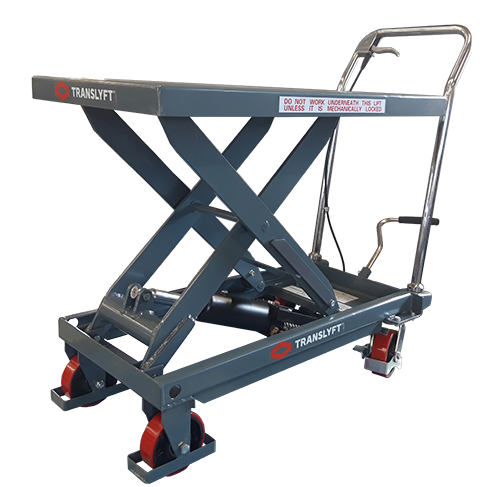

SZ350 • Mobile Foot Operated Lift Table • 350Kg Double scissor action

Product Code: PPC-Series-Safety-1-1

Lifting trolleys are perfect for simple cargo handling.

Lift trolleys travel from 595 to 940 mm and have a load capacity of 350 - 500 kg. The lifting trolleys come with large wheels at the front and easy-to-handle swivel wheels with brakes at the rear. A foot pump lets you safely and easily adjust the height.

The lifting trolleys are especially suitable for companies where lifting, transporting or adjusting the working height is an everyday challenge.

Optional guarding and light curtains can be added to your existing setup, enhancing operational safety without compromising efficiency. The light curtains are programmed to halt machine operation instantaneously upon detecting any foreign object, thereby minimizing the risk of accidents. For those seeking an extra layer of customization, bespoke table sizes are also available upon request.

Incorporating advanced safety features such as press guarding, these devices ensure that your machinery operates within the highest safety parameters, allowing you to focus on precision and productivity.

    • Description
    • Additional Info

    Technical specifications

    SZ350 • Mobile Foot Operated Lift Table • 350Kg Double scissor action

    Capacity 350Kg
    Platform 900mm Long x 512mm Wide
    Closed height: 360mm
    Travel: 940mm
    Raised Height: 1300mm
    Manual foot operated pump
    Hand trigger for accurate lowering
    High push handle
    CE marked and constructed to EN1570
    Pressure relief valve to prevent overload
    Two fixed and two swivel castors
    Rear castors fitted with foot operated brakes
    for stable loading and unloading

    CE marked and constructed to EN1570

    CE marked and constructed to EN1570
