USED – Pedrazzoli STERN 160 End Forming & Finishing Machine – As-Is or Refurbishment Project
Please contact for prices

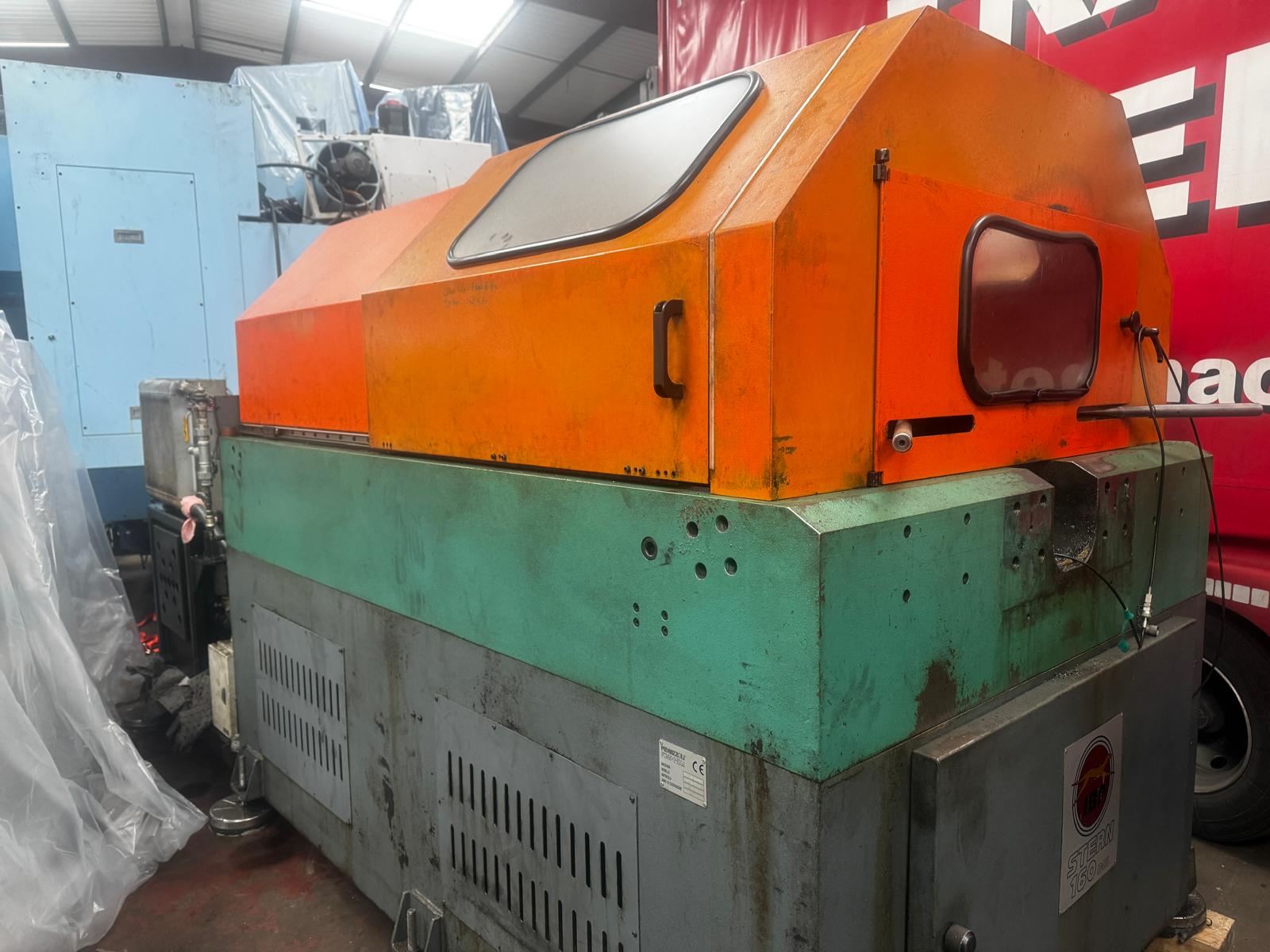

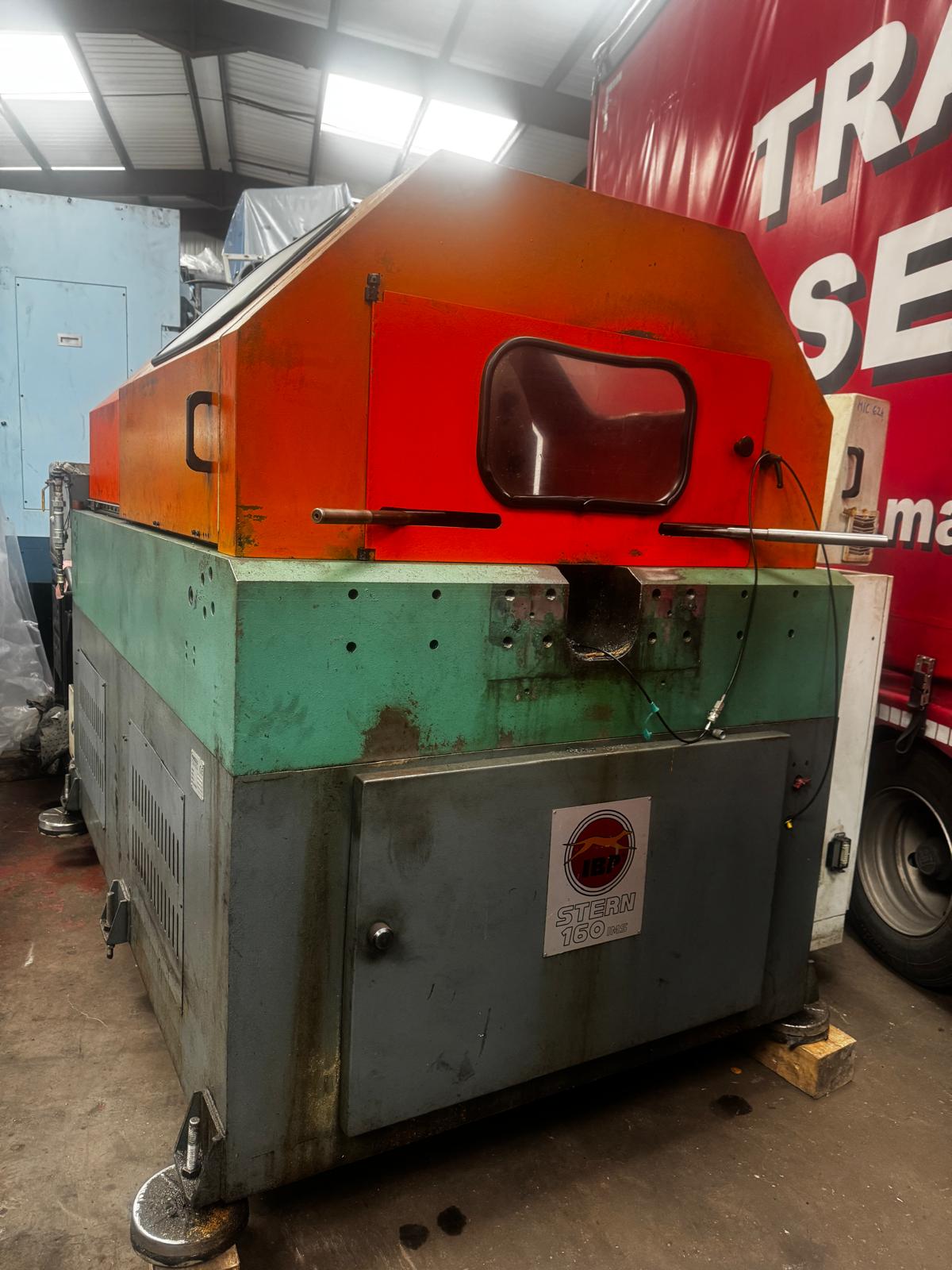

The Pedrazzoli STERN 160 IMS is a hydraulic tube end-forming machine equipped with a 12-position rotating tool drum, clamping assembly and FANUC Series 0i-MD control panel. This used machine was manufactured in 2011 and is available through The Workshop Press Company UK.
The machine is in running condition, although some components require refitting. It is offered either as-is in its current used condition or as a refurbishment project, with the scope of work and commercial terms to be agreed.

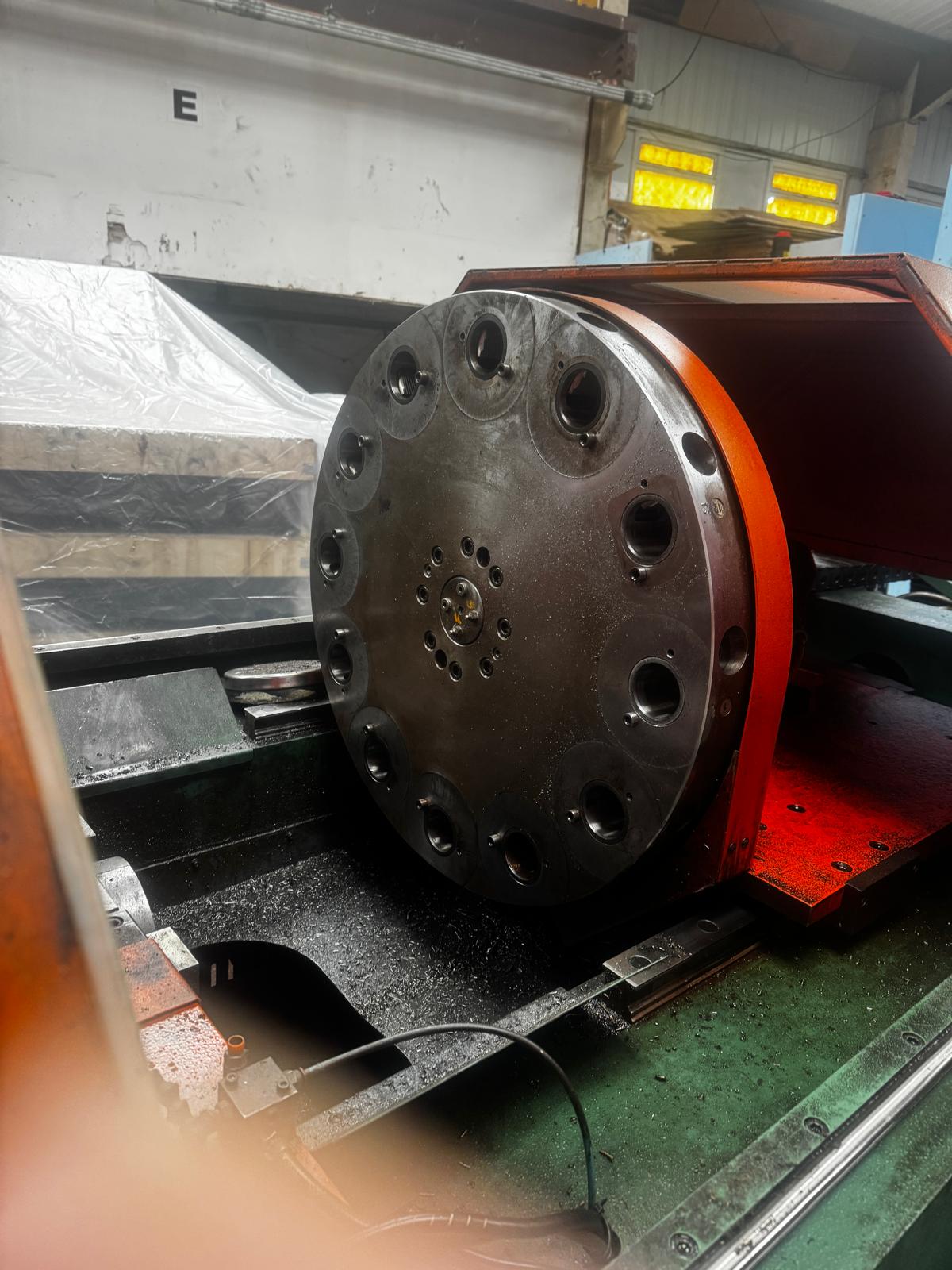

The rotating tool drum provides multiple tool positions for tube end-forming operations. Suitability for a particular component depends on the tube material, diameter, wall thickness, required operation and tooling configuration. Contact us to discuss your application, the equipment included and the work required.
Estimated new replacement cost: €350,000+ including tooling, depending on specification and tooling requirements. This is a Workshop Press estimate for a new machine with tooling, rather than the asking price of this used machine.
Price on application. Contact Workshop Press to discuss an as-is purchase or a refurbishment project.
Used 2011 Pedrazzoli STERN 160 IMS hydraulic tube end-forming machine with FANUC control and a 12-position rotating tool drum. Running condition, with some components requiring refitting. Available as-is or as a refurbishment project. Price on application.
Specifications
- Manufacturer: Pedrazzoli IBP

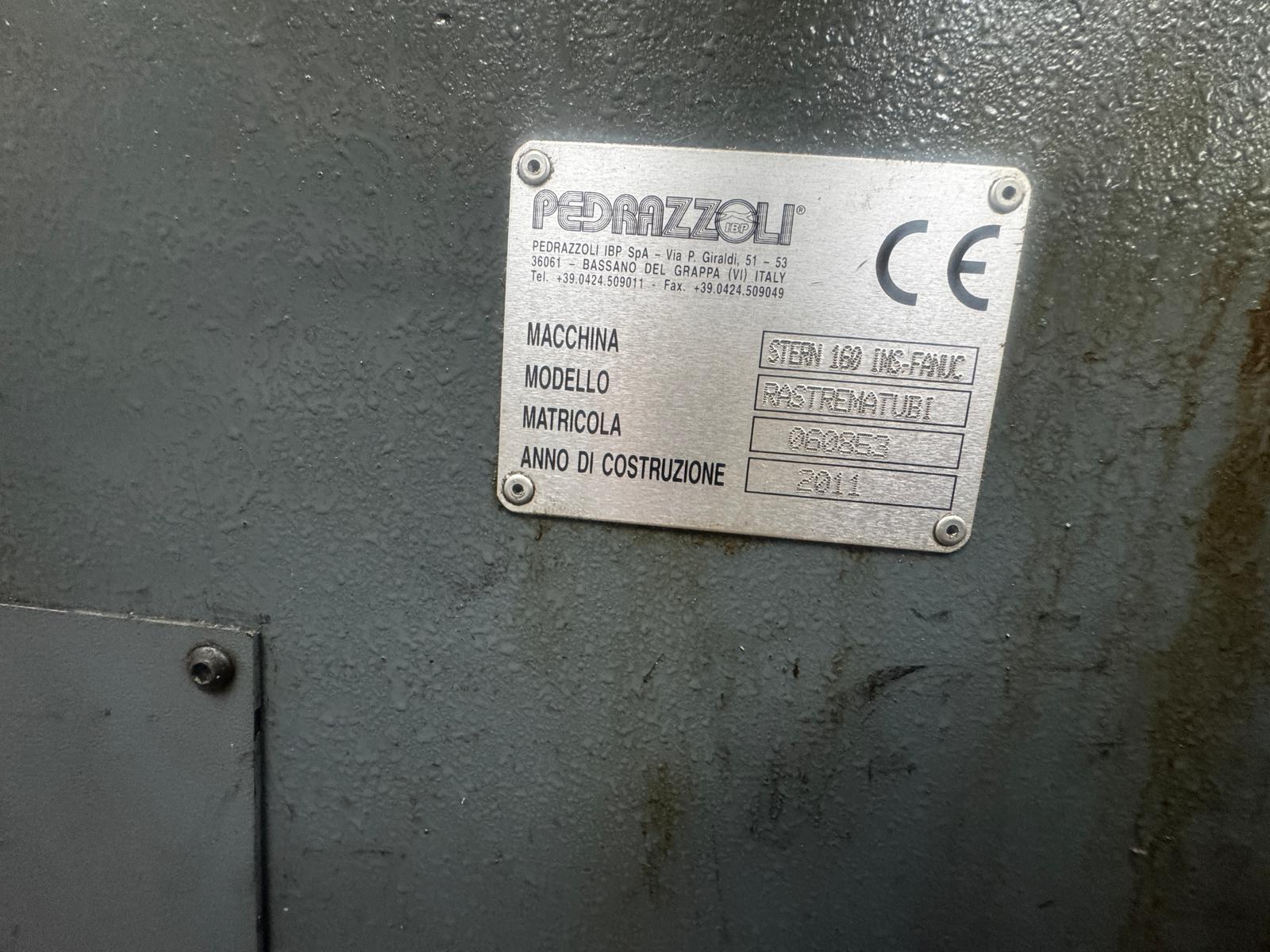

- Model on identification plate: STERN 160 IMS-FANUC
- Year of manufacture: 2011
- Machine type: hydraulic tube end-forming machine

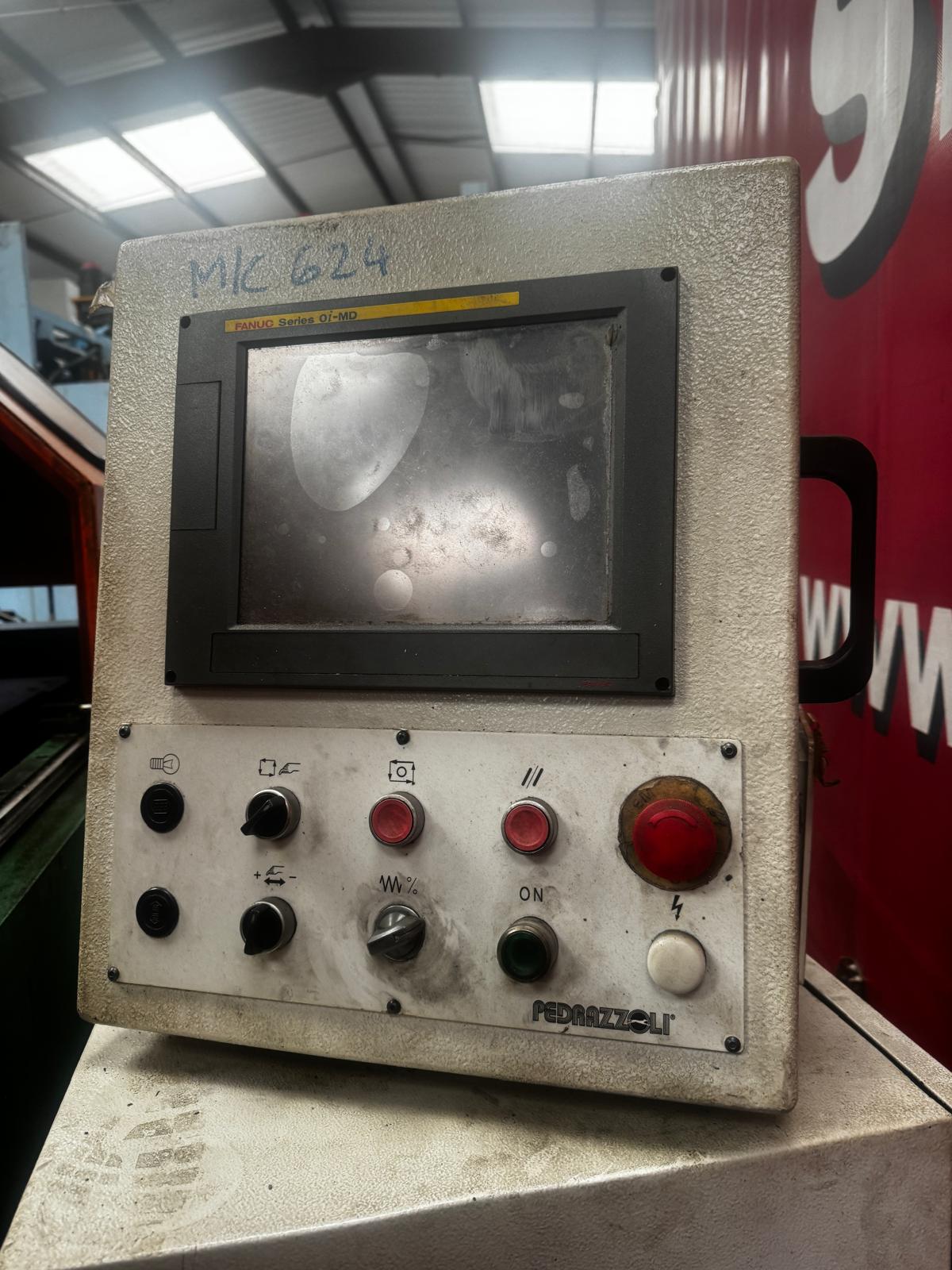

- Control panel: FANUC Series 0i-MD
- Rotating tool drum: 12 positions
- Condition: running; some components require refitting
- Purchase options: as-is or refurbishment project
- Tooling is per application – not included/to be confirmed
- Price: on application

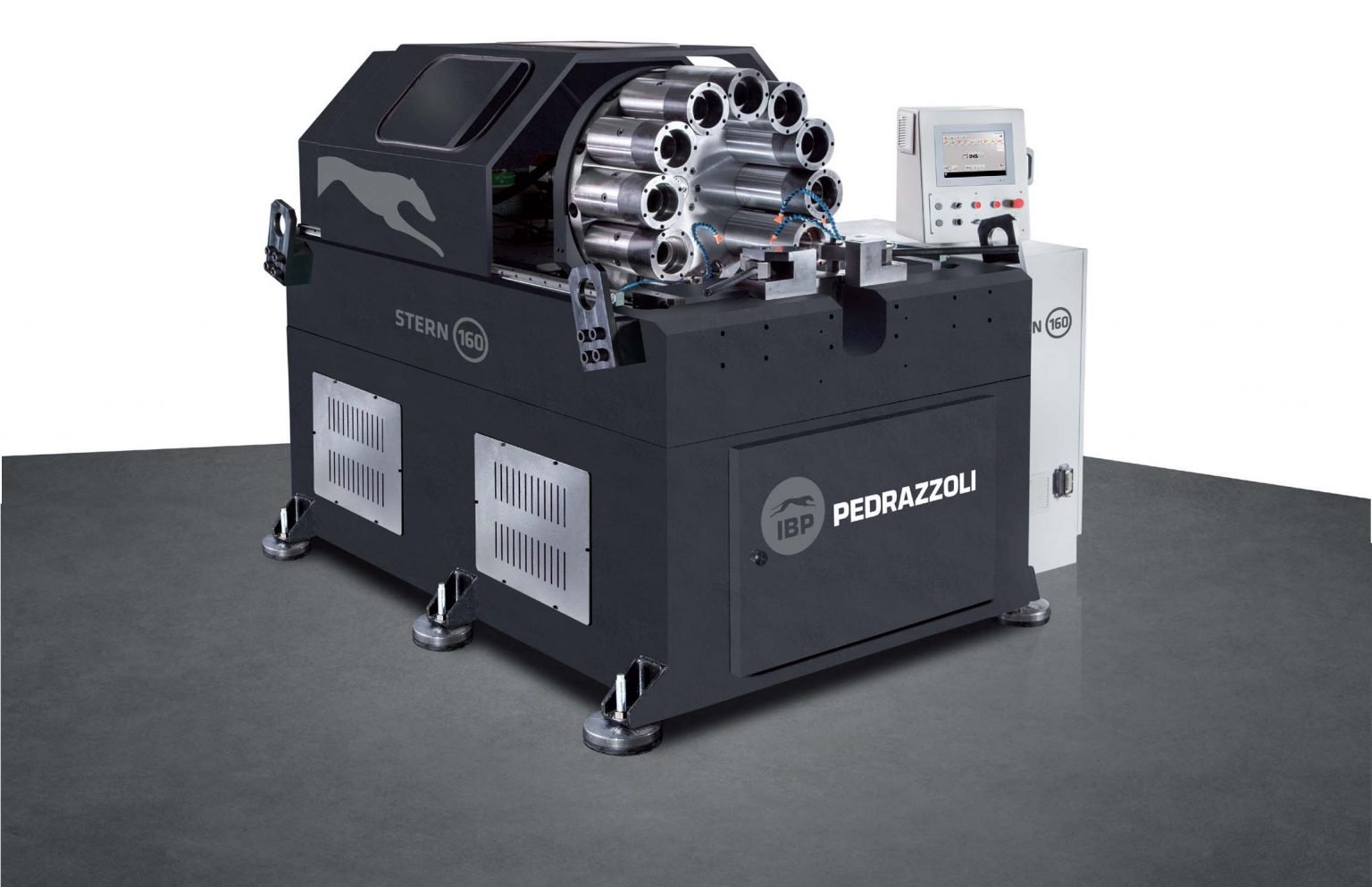

The downloadable specification sheet includes manufacturer reference figures for a new STERN BROWN 160 IMS. These are not verified specifications of this 2011 machine. Capacity and application suitability should be confirmed for the machine and tooling offered.
Key Features
- Hydraulic tube end-forming machine.
- 12-position rotating tool drum.
- FANUC Series 0i-MD control panel.

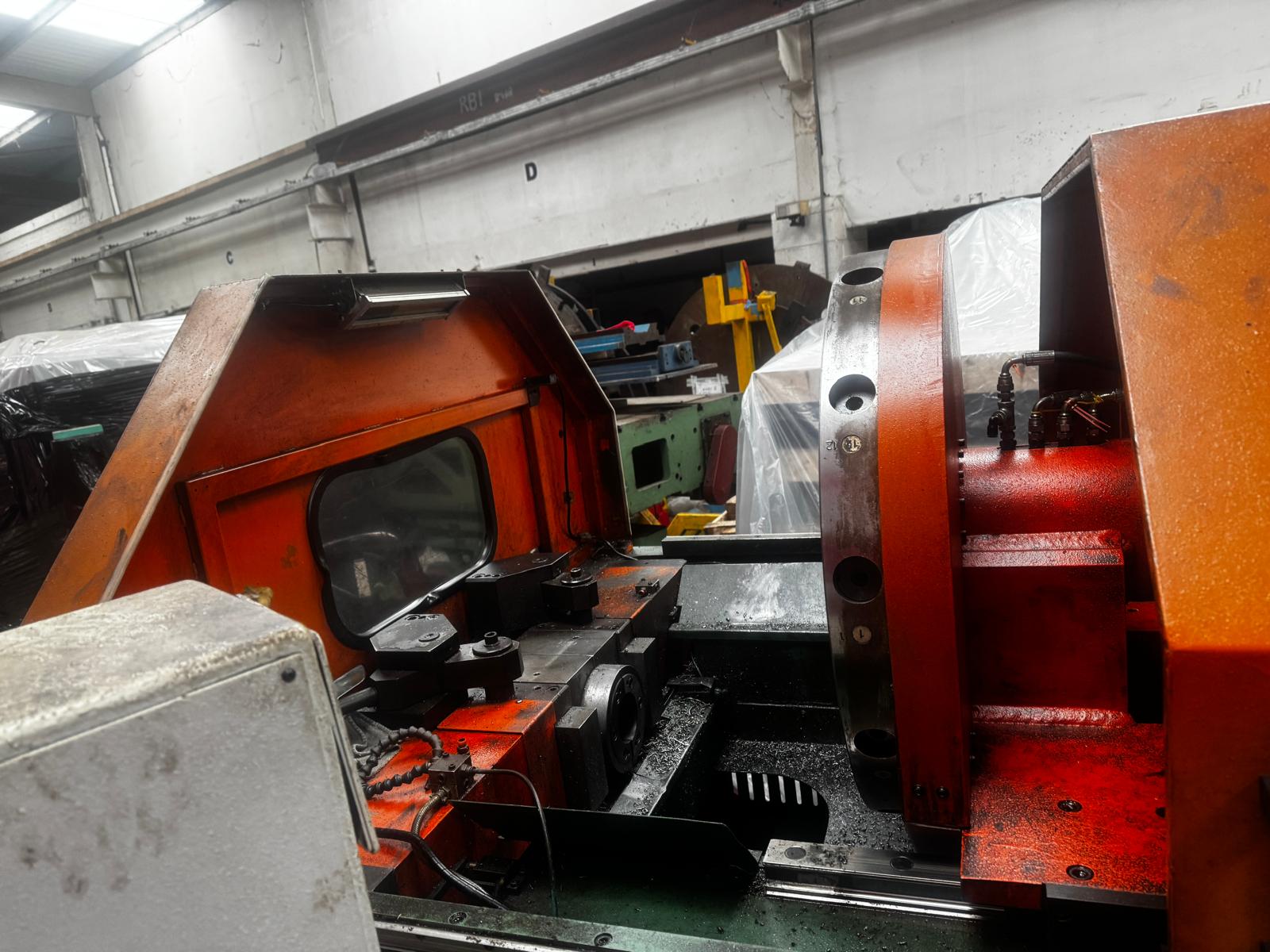

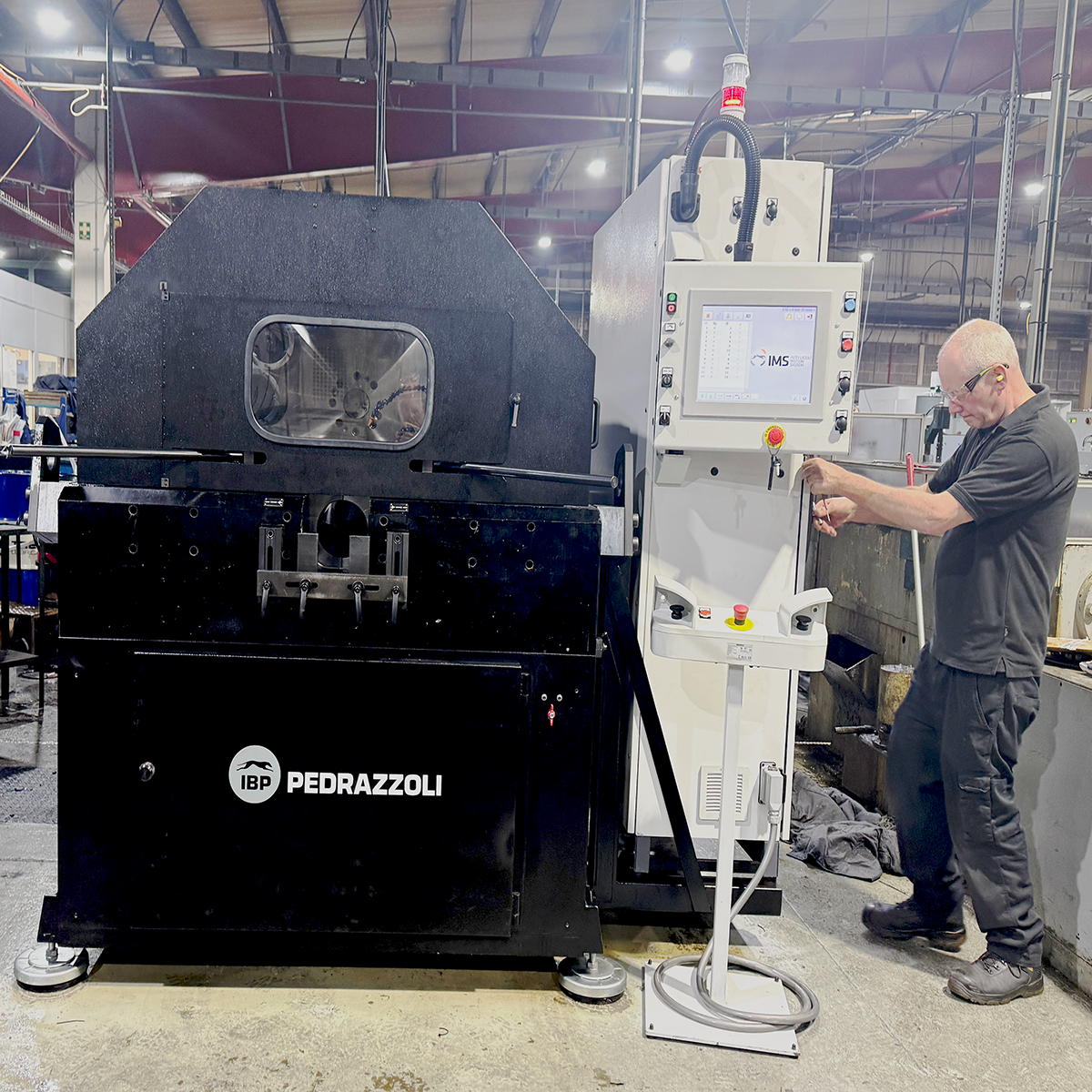

- Clamping assembly and enclosed working area.
- 2011 year of manufacture.
- Running condition, with component refitting required.
Key Features
- Hydraulic tube end-forming machine.
- 12-position rotating tool drum.
- FANUC Series 0i-MD control panel.
- Clamping assembly and enclosed working area.
- 2011 year of manufacture.
- Running condition, with component refitting required.
Tube End-Forming Capabilities

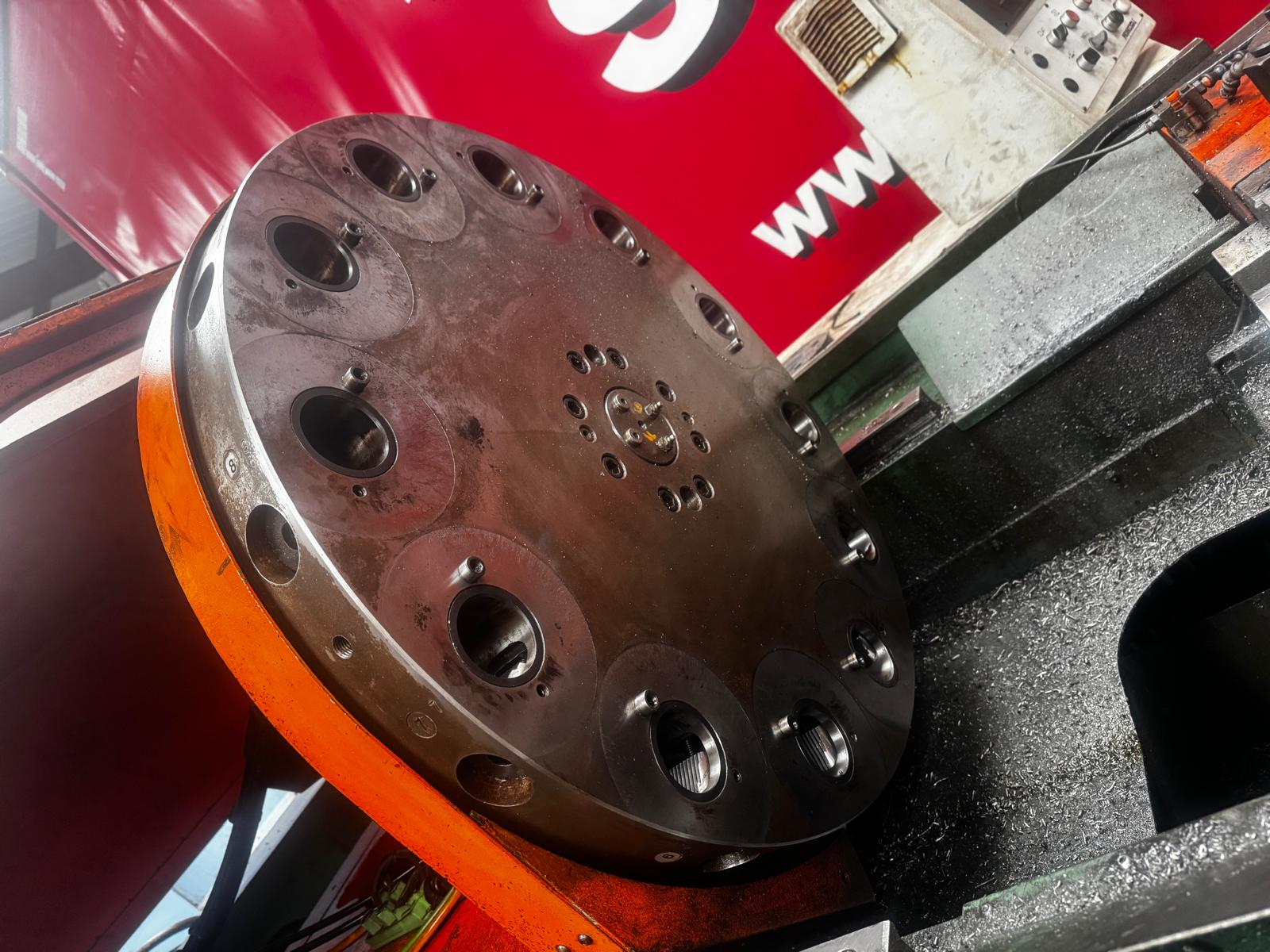

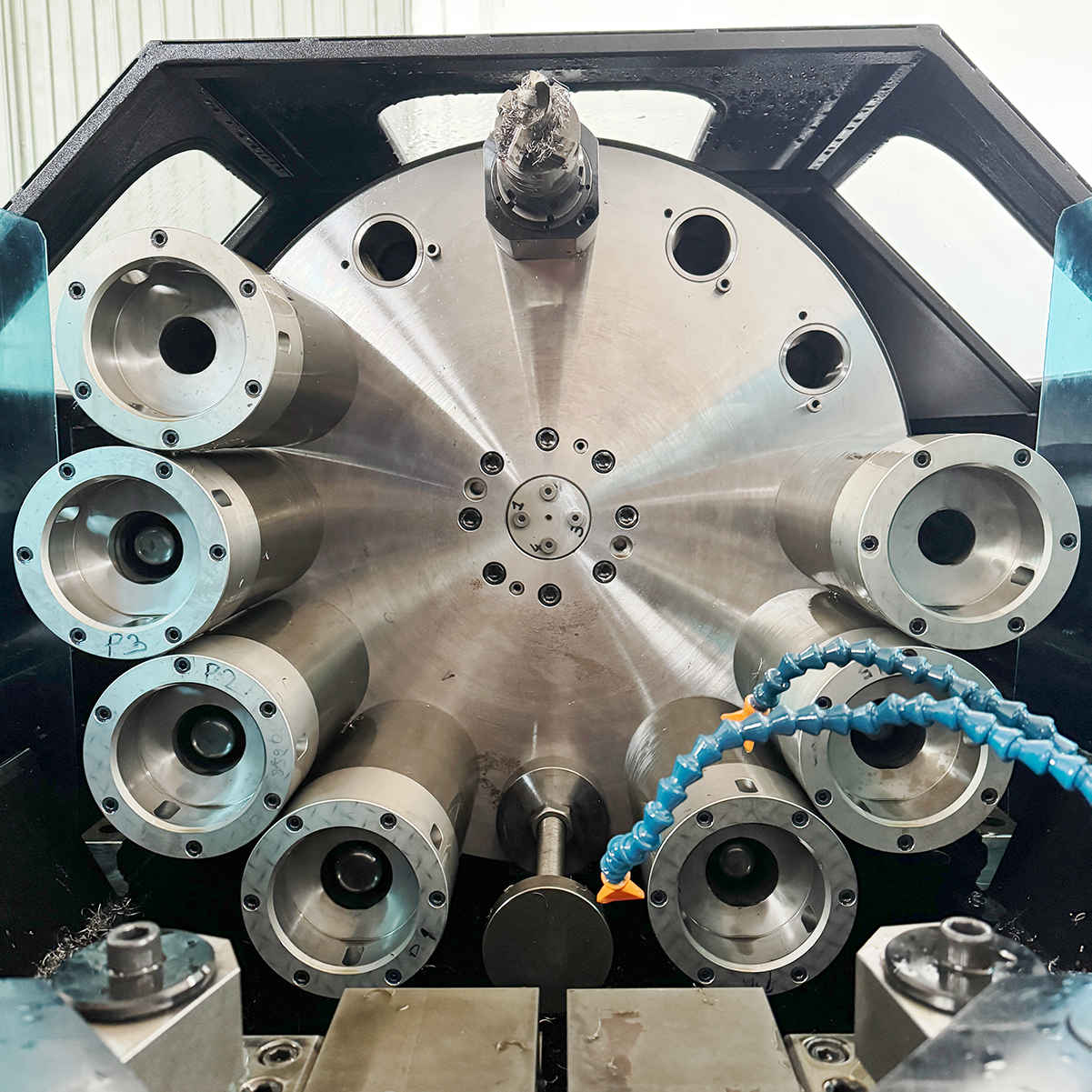

The Pedrazzoli STERN 160 IMS is designed for forming and machining tube ends. Its 12-position rotating tool drum allows a sequence of operations to be carried out using tools selected for the component being manufactured.
Depending on the tooling, material and component geometry, tube end-forming operations can include:
- Reducing tube-end diameters.
- Expanding and flaring tube ends.
- Forming flanges, beads and lips.
- Shaping tube ends to suit assembly and connection requirements.
- Progressive forming through a sequence of tools.
Live Tooling for Machining Operations
A live tooling adapter is available for use in any of the 12 tool positions. With suitable tooling, this provides additional machining capability, including:
- Chamfering tube ends.
- Slotting.
- Boring.
- Drilling.
The operations achievable on a particular component depend on the adapter configuration, cutting tools, workholding, access and required machining sequence. Contact Workshop Press to discuss your component drawings and production requirements.
Application-Specific Tooling
Tooling is not included with this used machine. Forming tools, clamping jaws and machining tools are specific to the application and must be selected or designed around the finished component.
Tooling requirements depend on the tube diameter, wall thickness, material, finished profile, tolerances and forming length. Some components require several forming stages, with a separate tool for each stage. Clamping jaws must provide suitable support and grip throughout the operation.
To discuss suitability and tooling requirements, please provide a component drawing showing the starting tube dimensions, material specification, finished dimensions and tolerances, together with the required production quantity.
Download the Specification Sheet
Download the specification sheet for the used Pedrazzoli STERN 160 IMS tube end-forming machine, including machine details, condition and purchase options. Tooling is not included.
Download the Pedrazzoli STERN 160 IMS Specification Sheet (PDF)
Tube End-Forming Capabilities
The Pedrazzoli STERN 160 IMS is designed for forming and machining tube ends. Its 12-position rotating tool drum allows a sequence of operations to be carried out using tools selected for the component being manufactured.
Depending on the tooling, material and component geometry, tube end-forming operations can include:
- Reducing tube-end diameters.
- Expanding and flaring tube ends.
- Forming flanges, beads and lips.
- Shaping tube ends to suit assembly and connection requirements.
- Progressive forming through a sequence of tools.
Live Tooling for Machining Operations
A live tooling adapter is available for use in any of the 12 tool positions. With suitable tooling, this provides additional machining capability, including:
- Chamfering tube ends.
- Slotting.
- Boring.
- Drilling.
The operations achievable on a particular component depend on the adapter configuration, cutting tools, workholding, access and required machining sequence. Contact Workshop Press to discuss your component drawings and production requirements.
Substantial Cast Base – A Foundation for Refurbishment
The STERN 160 is built around a substantial cast machine base, providing a rigid structural foundation for the clamping assembly and tool drum.

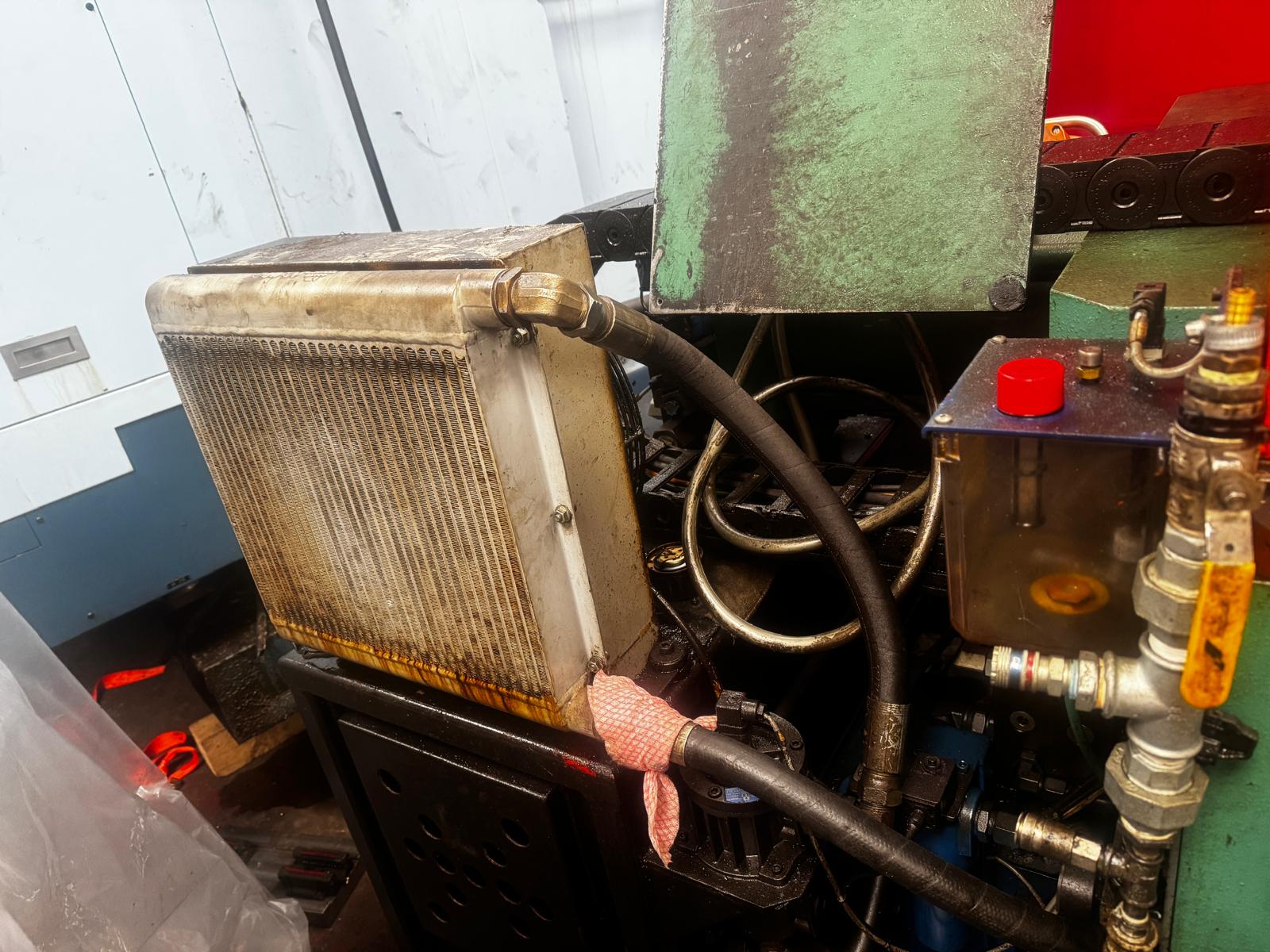

For buyers considering a refurbishment project, the heavy cast base is an important part of the machine’s value. It provides an existing structure around which to assess the mechanical, hydraulic and control-system work required. The condition and suitability of the complete machine should be assessed against the intended application and refurbishment scope.
Application-Specific Tooling
Tooling is not included with this used machine. Forming tools, clamping jaws and machining tools are specific to the application and must be selected or designed around the finished component.
Tooling requirements depend on the tube diameter, wall thickness, material, finished profile, tolerances and forming length. Some components require several forming stages, with a separate tool for each stage. Clamping jaws must provide suitable support and grip throughout the operation.
To discuss suitability and tooling requirements, please provide a component drawing showing the starting tube dimensions, material specification, finished dimensions and tolerances, together with the required production quantity.
Condition and Purchase Options
The machine is in running condition, although some components require refitting. It is available as-is or as a refurbishment project, with the required work, included equipment and commercial terms to be agreed. Price on application.
Download the Specification Sheet
Download the specification sheet for the used Pedrazzoli STERN 160 IMS tube end-forming machine, including machine details, condition and purchase options. Tooling is not included.
Download the Pedrazzoli STERN 160 IMS Specification Sheet (PDF)
