C-Frame Presses For Sale UK

Yes, we offer bespoke builds with specific dimensions, tonnage, stroke, and control systems.

Every model is built in the EU and CE certified as standard.

Yes, our PPCUHS series offers speeds up to 160 mm/sec with full safety and control.

Aerospace, automotive, R&D, repair, fabrication, and precision assembly environments.

View our comprehensive range online.
We offer over 25 different C-Frame presses that have various tonnages, controls, and features. They can be viewed by clicking HERE.

They range between 16 and 250 tons.
C-Frame presses are classified by the hydraulic system’s tonnage, typically ranging between 16 and 250 tons.

Yes, pressure is adjustable.
The pressure on a hydraulic C-Frame Press is adjustable. Basic models use a manually adjusted pressure valve, while more advanced machines use an HMI for programmatic control.

Yes, speed is adjustable.
Speed adjustment is possible on C-Frame Presses. Simpler models use a manual flow valve, while advanced machines with HMI control the speed programmatically.

We offer a comprehensive service.
We provide a complete service including delivery, offloading, placement, installation, power hookup, and training. Our team ensures presses are set up even in challenging locations.

We offer up to 250 tons, with bespoke options available.
The largest standard C-Frame press we offer is 250 tons, but bespoke tonnages and sizes are available, even up to and beyond 1000 tons.

Various features and specifications.
Key differentiators include tonnage, HMI or micro-switch stroke control, pressure control, speed control, safety features, activation method, bolster and slide table size, and physical dimensions.

Not all have HMIs.
Not all C-Frame presses have HMIs. Some are controlled by micro-switches and foot pedals or palm buttons, which are efficient but less flexible compared to HMIs.

Micro-switches or HMIs.
Stroke length is controlled by either micro-switches with an analog linear scale or an HMI that allows data entry for stroke positions. The overall stroke is limited by the physical dimensions of the press.

Safety features vary by speed.

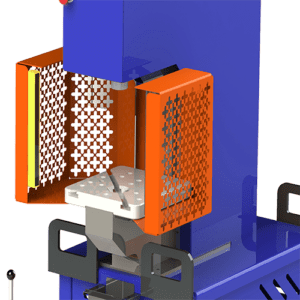

Safety features are dictated by the press’s stroke speed. Presses advancing faster than 11 mm/s must have guarding, typically light curtains. Presses slower than 11 mm/s have E-Stop buttons.

Industry 4.0 enables data-driven automation and remote control.
Industry 4.0 brings real-time data collection, predictive maintenance, and remote monitoring capabilities to hydraulic press operations. This allows for optimized machine performance, reduced downtime, and energy efficiency, all while integrating seamlessly into automated production lines.

Increased efficiency, predictive maintenance, and remote control.

Key benefits include:

• Real-time data collection for better decision-making.
• Predictive maintenance to reduce machine downtime.
• Remote control and diagnostics for flexible operations.
• Energy monitoring for cost savings.
• Seamless integration with other smart manufacturing systems.

Yes, with appropriate press size.
Existing tools can be used if the press has adequate vertical and horizontal daylight and the tables are large enough to secure the toolset.

Standard and bespoke tools are available.
Standard tools for punching, rounding, forming, slotting, and tube notching are available. Custom tools can also be developed to suit specific needs.

Suitable for short and long runs.
C-Frame presses are suitable for both short and long production runs. The required production quantities and stroke speed should be considered to match the press to your needs.

Tools are secured using die clamps.
Tools are secured using die clamps with DIN-60 T-Slots in the press slide and bolster tables. T-Nuts and bolts are used to clamp the tool securely.

Regular maintenance ensures longevity.
Daily maintenance includes testing safety features, cleaning, and checking hydraulic fluid levels. Some companies perform annual oil changes, while others top up as needed. Service packages are available upon request.

They can be hydraulic or mechanical.
C-Frame presses can be either hydraulically or mechanically driven. Hydraulic presses use a piston, while mechanical presses use a flywheel or drive mechanism.

Not always necessary.
Hydraulic cooling systems are not always required. The need depends on the ambient climate where the press is located. An evaluation is recommended if the average temperature is 20°C or higher.

Yes, customization is possible.
Standard C-Frame presses can be customized with special guarding, modified controls, larger tables, and more to meet specific customer requirements.

Yes, controls can be modified.
Changing hand palm button controls to foot pedal controls, or vice-versa, is possible to suit operator preference and application requirements.

Various types cater to different needs.

Categories include:

• Manual C-frame presses: Lever-powered hydraulic cylinder, suitable for light-duty applications.
• Hydraulic C-frame presses: Motor-driven hydraulic system, suitable for heavy-duty applications.
• Servo-hydraulic presses: Use servomotors for precision and accuracy, ideal for high-volume manufacturing.

Sub-categories include:

• Benchtop presses: Small, portable presses for light-duty applications.
• Floor presses: Larger, more powerful presses for heavy-duty applications.
• Servo-hydraulic presses: Advanced presses with servomotors for high precision.

For detailed guidance, contact our professional sales team.

They offer versatility, durability, safety, and affordability.

Benefits include:

• Versatile: Suitable for various applications.
• Durable: Made from high-quality steel and components.
• Safe: Equipped with E-Stops, light curtains, and other safety features.
• Affordable: Cost-effective with reasonable entry costs.

Suitable for various metalworking tasks.

Applications include: Punching, deep drawing, blanking, coining, straightening, forming, bending, drawing, riveting, and assembly.

Consider tonnage, speed, accuracy, and price.

Key factors include:

• Tonnage: Depends on the type of work and materials used.
• Speed: Required for high-volume production.
• Accuracy: Needed for precision metalworking.
• Price: Varies based on features and specifications.

Our professional staff can help you match your budget to your production requirements.

Costs vary based on features and specifications.

General price ranges:

• Manual C-frame presses: £100-£500.
• Hydraulic C-frame presses: £3,500-£150,000.
• Servo-hydraulic presses: £50,000-£300,000.

Set a budget before shopping to avoid overspending. Contact us for a detailed quotation.

Regular maintenance is essential.

Maintenance tips:

• Inspect regularly for wear or damage.
• Clean the press daily.
• Lubricate according to the manufacturer’s guidelines.
• Check hydraulic oil levels regularly.
• Service annually by a qualified technician.

Following these tips will ensure your C-frame press lasts for many years.

We are one of the UK’s largest press dealers.

purchase options:

• Machinery dealers: Offer new presses with warranties and support.
• Online retailers: Suitable for smaller, inexpensive presses.
• Auctions: Good for used presses, but without guarantees or warranties.

Contact The Workshop Press Company UK for professional assistance in choosing the right press for your needs.
