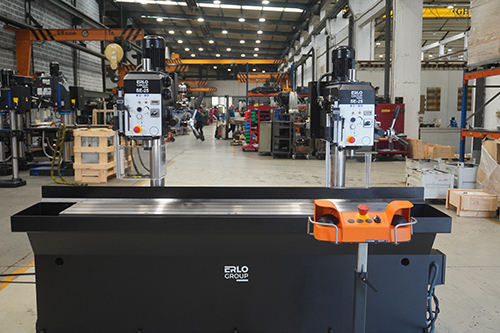

Front view of ERLO 2SE.25 twin-head gang drill with long T-slotted worktable

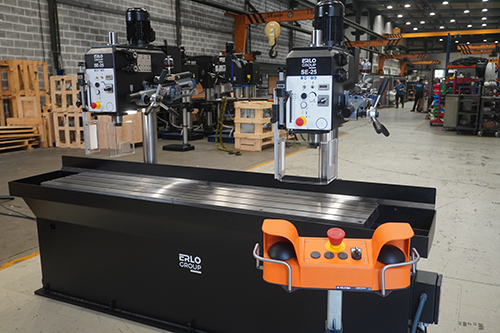

ERLO 2SE.25 twin-head gang drill with adjustable drilling heads and bimanual control station

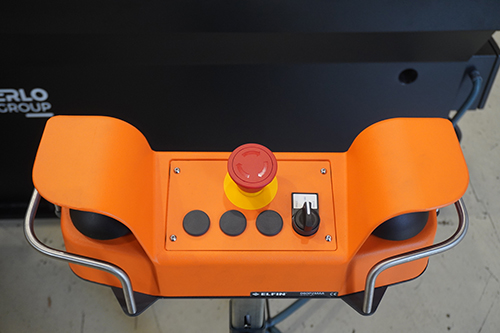

Bimanual palm-button control station with emergency stop on the ERLO 2SE.25 twin-head gang drill

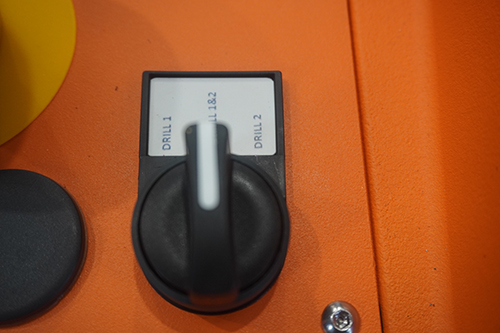

Head selector for operating drill one, drill two, or both heads on the ERLO 2SE.25 gang drill

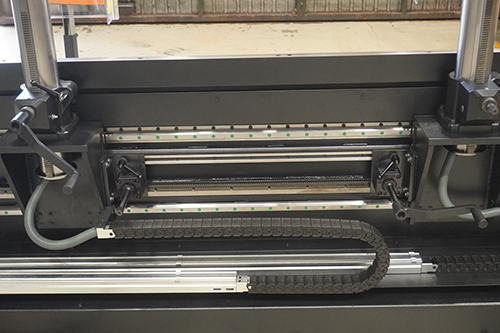

Rear view of adjustable drill heads and positioning system on the ERLO 2SE.25 twin-head gang drill

ERLO 2SE.25 Twin-Head Gang Drill

SKU: ERLO-GANG-DRILL-SE25 Categories: , Tags: , , , , , , , , , ,

Please contact for prices

The ERLO 2SE.25 Twin-Head Gang Drill is a floor-standing production drilling machine designed for applications requiring two accurately positioned holes in a single operation. It combines two independently adjustable, gear-driven SE.25 drilling heads with a long fixed T-slotted worktable, enabling efficient drilling and tapping of larger or repeat components.

Each drilling head provides up to Ø25 mm drilling capacity in steel and M22 tapping capacity. The heads may be operated individually or together, with selectable manual or automatic Hydroblock feed and bimanual palm-button cycle initiation for controlled production operation.

Note: The machine shown is a twin-head configuration. ERLO gang drills can be configured with different head arrangements, worktables, feeds, tooling and application-specific equipment.

Request Quote

    Download Specification Sheet

    The ERLO 2SE.25 is a twin-head, gear-driven gang drill for production drilling and tapping. Two independently adjustable Ø25 mm drilling / M22 tapping heads operate from a long T-slotted worktable, with manual or Hidroblock automatic feed.

    Specifications
    • Drilling Capacity [mm]: Ø25 per spindle
    • Tapping Capacity: M22 per spindle
    • Spindle Stroke [mm]: 120
    • Motor Power [kW]: 0.8 / 1.2 per head
    • Drive Type: Gear transmission
    • Spindle Speeds [rpm]: 64 to 3060; 8 speeds
    • Feed System: Manual or automatic Hidroblock feed
    • Head Control: Left, right or both heads selected
    • Head Adjustment: Horizontal and vertical adjustment
    • Worktable [mm]: Fixed T-slotted table, 390 × 2080
    • Net Weight [kg]: 1100
    • Electrical Supply: 400 V, 50 Hz, three-phase
    Features
    • Twin gear-driven ERLO SE.25 drilling heads on a shared base
    • Left-head, right-head or both-head operation
    • Independent horizontal and vertical adjustment of each drilling head
    • Manual or Hidroblock automatic feed operation
    • Bimanual palm-button initiation for automatic-cycle operation
    • Eight selectable spindle speeds for matching the tool and material
    Optional Equipment
    • Custom multi-spindle heads for application-specific hole patterns
    • Digital depth reader (LBC)
    • Electronic speed variator and digital speed reader (VE + TAK)
    • Automatic rotation inversion for manual tapping (IR/RS)
    • Coolant equipment
    • Custom work-holding fixtures and application-specific tooling

    Pillar Drill Frequently Asked Questions

    Find answers to common questions covering drilling capacity, tapping capability, spindle tapers, drive systems, machine selection, installation, servicing and maintenance.

    View Pillar Drill FAQs

    The ERLO 2SE.25 Twin-Head Gang Drill is a floor-standing production drilling machine designed for industrial drilling and tapping applications requiring two accurately positioned operations. It features two gear-driven SE.25 drilling heads mounted on a shared base with a long fixed T-slotted worktable. Each head provides Ø25 mm drilling capacity and M22 tapping capacity, with independent horizontal and vertical adjustment to suit the component and hole pattern.

    The heads can be operated individually or together, with manual or Hidroblock automatic feed operation. Bi-manual palm-button initiation provides controlled automatic-cycle operation, while the robust geared transmission and cast iron construction deliver rigidity and long service life in workshop and production environments.

    Note: The machine shown is a twin-head configuration. ERLO gang drills can be specified with alternative head arrangements, worktables, multi-spindle heads, work-holding fixtures, coolant equipment and application-specific tooling.

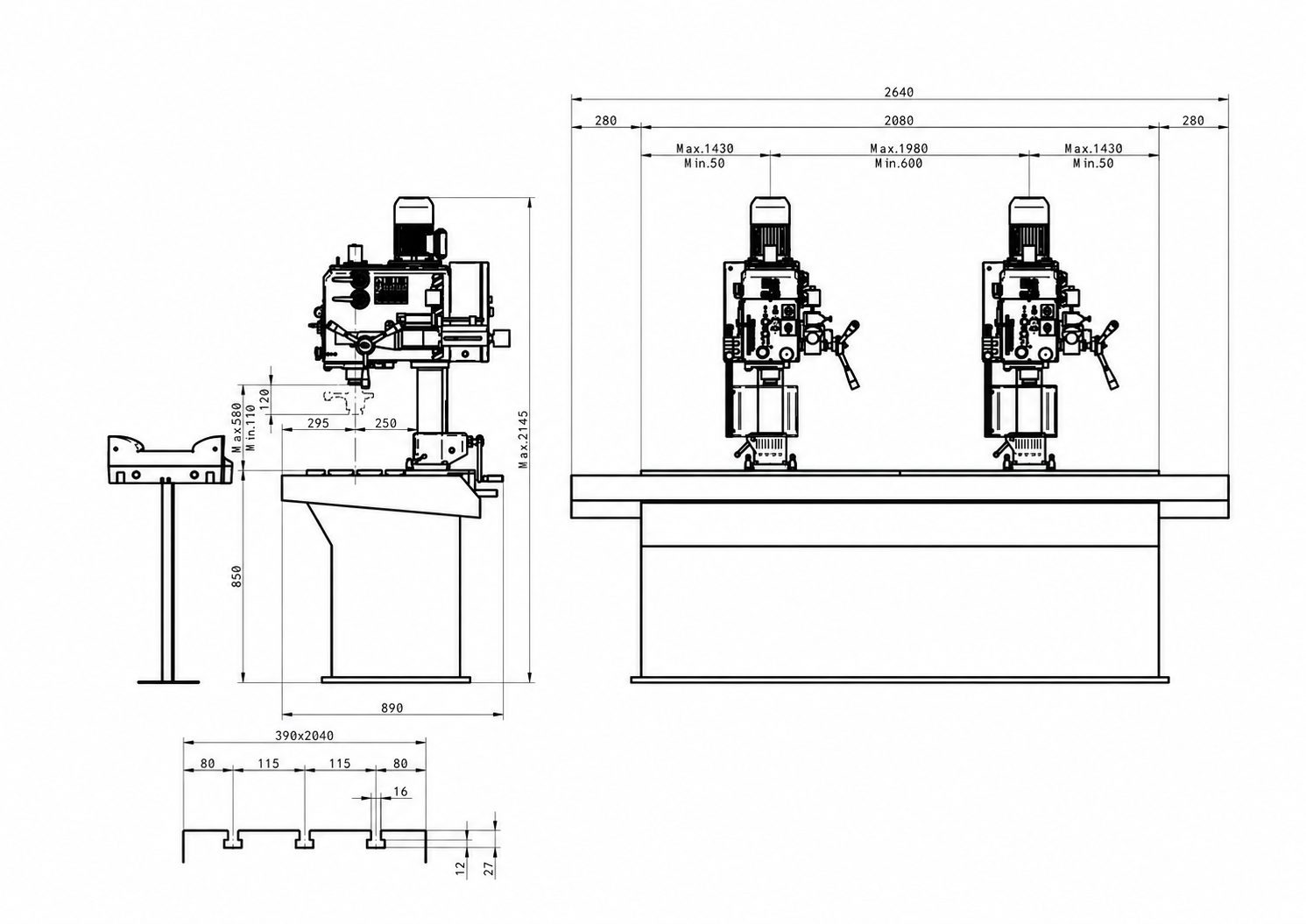

    Dimensional drawing of the ERLO 2SE.25 twin-head gang drill showing machine height, worktable dimensions, adjustable head positions and T-slot detail.

    ERLO 2SE.25 Twin-Head Gang Drill dimensional drawing.
