Horizontal Press Brakes • Beam Cambering Presses • Portal Presses • 10 to 300 Tons • Bespoke Models Available
Product Code: TWPCO-Bending-Cambering-StraighteningExplore our extensive range of high-performance hydraulic press machines designed for diverse industrial applications. Our product line includes otorised portal presses, manual portal presses, and horizontal press brakes, each engineered to deliver precision, efficiency, and durability. With varying force capacities and advanced control systems, these machines cater to the needs of automotive, manufacturing, aerospace, and metalworking industries. Whether you require robust motorised presses, reliable manual presses, or versatile horizontal press brakes, our collection offers the perfect solution for your pressing and forming tasks.
Motorised Portal Roll Frame Gantry Presses: High force capacities (150, 220, and 300 tons) with powerful motors and precision control systems.
Manual Portal Roll Frame Gantry Presses: Reliable performance with pressure forces up to 1570 kN, ideal for applications requiring manual control.
Horizontal Press Brakes: Versatile metal bending and forming with capacities ranging from 10 to 100 tons.
Please contact for prices
- Description
- Additional Info
Our comprehensive selection of press machines is tailored to meet the demands of multiple industrial sectors. The motorised portal presses, available in 150, 220, and 300 ton models, are equipped with powerful motors and precision control systems, making them ideal for heavy-duty tasks. The manual portal presses offer reliable performance with pressure forces up to 1570 kN, suitable for applications where manual control is preferred. Additionally, our horizontal press brakes, with capacities ranging from 10 to 100 tons, provide versatility and accuracy for metal bending and forming operations. Each machine is built to ensure long-term productivity and efficiency, making them essential for automotive, manufacturing, aerospace, and metalworking industries. OK

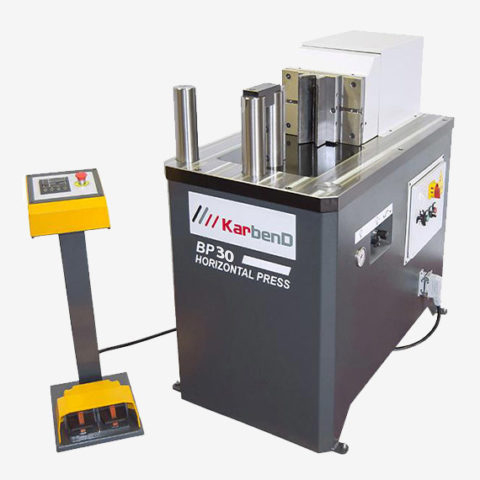

Horizontal Press Brakes:
- HB-28 NC:
- Maximum pressure: 28 tons
- Maximum pressure: 200 bar
- HPB-10, HPB-20 NC, HPB-30, HPB-40, HPB-50, HPB-80, HPB-100:
- Maximum pressure: 10 to 100 tons
- Maximum pressure: 200 to 250 bar
All Horizontal Bending Straightening Press Brakes are available with a standard NC controller or a Touchscreen Controller
Manual Gantry Portal Presses
- PPTL-100:
- Pressure force: 981 kN
- Pressure max: 258 bar
- Table dimensions: 800 mm x 600 mm
- Piston stroke: 350 mm
- Gantry travel: 700 mm
- PPTL-100-Wide:
- Pressure force: 981 kN
- Pressure max: 258 bar
- Table dimensions: 1000 mm x 800 mm
- Piston stroke: 350 mm
- Gantry travel: 700 mm
- PPTL-160:
- Pressure force: 1570 kN
- Pressure max: 255 bar
- Table dimensions: 1000 mm x 700 mm
- Piston stroke: 400 mm
- Gantry travel: 900 mm
- PPTL-160-Wide:
- Pressure force: 1570 kN
- Pressure max: 255 bar
- Table dimensions: 1200 mm x 900 mm
Manual Roll Frame Press Category
Click HERE
Motorised Gantry Roll Frame Presses
-
- 150 Ton Model:
- Force: 150 tons
- Motor: 4 kW
- Approach speed: 9.3 mm/sec
- Table dimensions: 1200 mm x 900 mm
- Piston stroke: 400 mm
- Gantry travel: 800 mm
- 220 Ton Model:
- Force: 220 tons
- Motor: 5.5 kW
- Approach speed: 9.0 mm/sec
- Table dimensions: 1500 mm x 1000 mm
- Piston stroke: 450 mm
- Gantry travel: 1000 mm
- 300 Ton Model:
- Force: 300 tons
- Motor: 7.5 kW
- Approach speed: 9.9 mm/sec
- Table dimensions: 1800 mm x 1200 mm
- Piston stroke: 500 mm
- Gantry travel: 1200 mm
- 150 Ton Model:
Motorised Gantry Roll Frame Presses Category
Click HERE

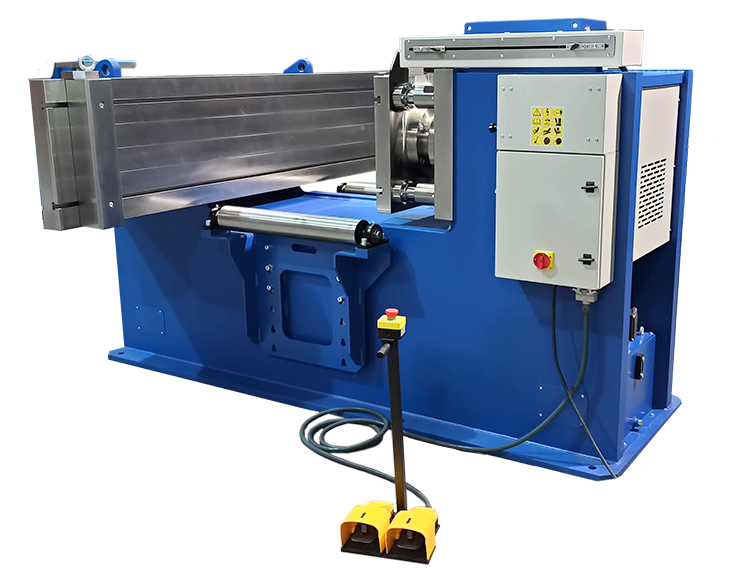

Cambering Presses
- PPHV-150:
- Force: 150 tons
- Motor Power: 4 kW
- Throat Depth: 300 mm
- Working Speed: 2 mm/sec
- PPHV-220:
- Force: 220 tons
- Motor Power: 5.5 kW
- Throat Depth: 330 mm
- Working Speed: 2.2 mm/sec
- PPHV-300:
- Force: 300 tons
- Motor Power: 7.5 kW
- Throat Depth: 405 mm
- Working Speed: 2 mm/sec
Cambering Presses Category
Industries Using these Machines and Their Uses:
- Automotive: Component forming, assembly, and body panel manufacturing
- Manufacturing: High-efficiency pressing and metal bending operations
- Aerospace: Fabrication of critical parts and assemblies
- Metalworking: Heavy-duty pressing, forming, and bending tasks
- Construction: Production of structural parts and support beams
- Shipbuilding: Creation of hull components and maritime structures
- Railway: Production of structural and functional components for railcars and locomotives
- Defense: Fabrication of parts for military vehicles and equipment
- Energy: Manufacturing components for wind turbines, pipelines, and other energy infrastructure
Comprehensive range of press machines including motorised portal presses, manual portal presses, and horizontal press brakes. High precision and durability for various industrial applications.
