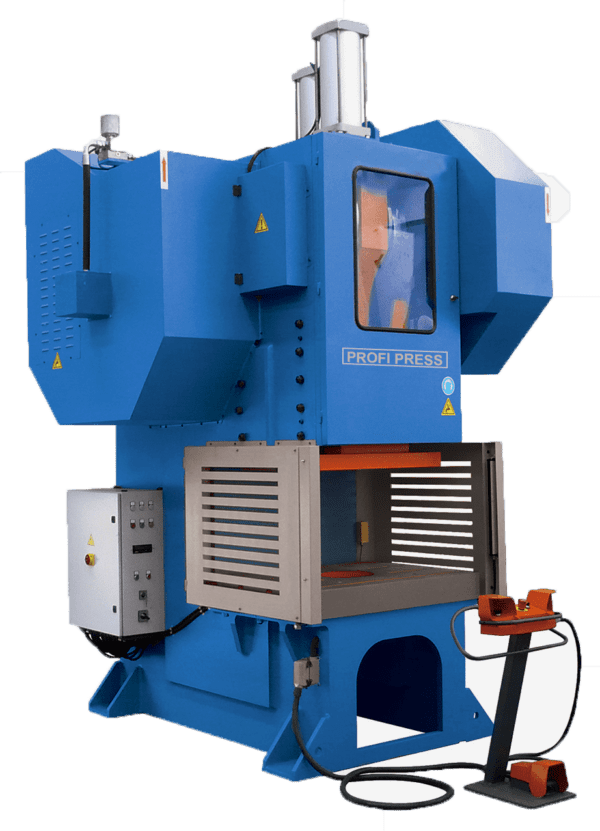

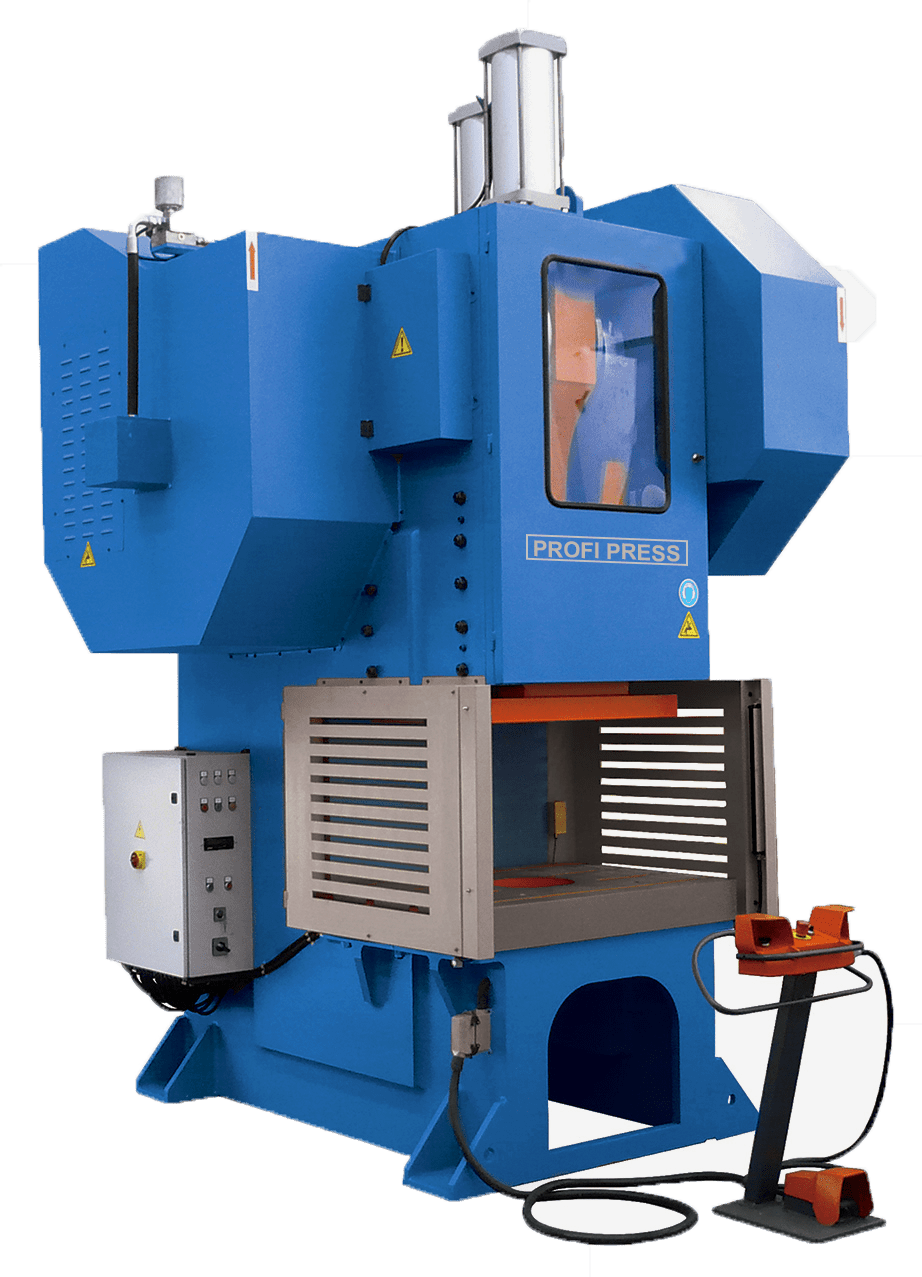

The Profi Press PPE-6-125 125 ton Mechanical C Press is a powerful and versatile machine that can be used for a variety of metal forming applications, including deep-drawing, cutting, punching, and stamping. It is ideal for use in the automotive, railway, and aerospace industries.
The Profi Press 125 ton mechanical press features a number of advanced safety features, including:
Central motorized lubrication system to guarantee a perfect performance and maintenance.
Hydraulic overload protection to protect the machine components and installed tools.
Effective balance of the slide and dies by means of two pneumatic cylinders.
Electro-pneumatic clutch and brake combination equipped with a dual safety solenoid valve.
Lateral protection screens with level IV safety light guards.
Programmable control system (PLC).
Adjustable stroke.
Anti-vibration pads.
Operation by means of two-hands control as well as a foot pedal.
The Profi Press 125 ton Mechanical C Frame Press is backed by a two-year warranty and is manufactured to the highest standards in Europe. It is a reliable and powerful machine that is perfect for a variety of metal forming applications.
Order your Profi Press 125 ton Mechanical Press today and start creating high-quality metal parts!
Please contact for prices
When it comes to metal fabrication and material forming, Mechanical C-Frame Presses are the cornerstone of industrial efficiency. These machines are engineered to provide high precision and repeatability in a variety of metalworking applications, including punching, bending, and shearing. Built with robust S355JR steel, these presses offer durability and resilience, ensuring a long operational lifespan.
Our comparison between the C-Type 4 and C-Type 6 Guided Ram Mechanical Presses aims to provide engineers and decision-makers with the technical specifications they need to make an informed choice. Both categories of presses come with advanced features like electropneumatic clutch-brake systems, Level IV safety light curtains, and centralized automatic lubrication. Furthermore, they are designed to meet the essential health and safety requirements in accordance with the CE standard.
Feature/Specification | C-Type 4 (PE/PE-4 Serie) | C-Type 6 (PE-6 Serie) |
---|---|---|
Material | S355JR Steel | S355JR Steel |
Power Range (Tn) | 40 to 315 Tn | 125 to 315 Tn |
Guides | 4 Ground Prismatic | 6 Ground Prismatic |
Overload Protection | Yes | Yes |
Clutch-Brake | Electropneumatic | Electropneumatic |
Control Panel | Manual, Semi-auto, Auto | Manual, Semi-auto, Auto |
Safety Features | Level IV Safety Light Curtains | Level IV Safety Light Curtains |
Warranty | 2 Years | 2 Years |
Pneumatic Balancing | n/a | Yes (Two Cylinders) |
Gears in Oil Tank | n/a | Yes |
Automatic Ram Adjustment | Optional (from 60 to 125 Tn) | Optional (from 60 to 125 Tn) |
Our Mechanical C-Frame Presses are not just machines; they are solutions engineered to meet the most demanding industrial requirements. With power ranges extending up to 315 Tn, these presses are suitable for both light and heavy-duty applications. The ground prismatic guides ensure that the ram moves with utmost precision, thereby reducing wear and tear and increasing the machine’s efficiency.
Optional features like automatic ram adjustment and pneumatic balancing further enhance the machine’s functionality. The electropneumatic clutch-brake system ensures rapid and safe stopping, making these machines compliant with the highest safety standards. With a 2-year warranty and robust after-sales support, we ensure that you get the most out of your investment.
For engineers looking for reliability, efficiency, and precision, our Mechanical C-Frame Presses are the go-to choice. Contact us today to discuss your specific requirements and let us help you choose the right machine for your application.
