PPE-4-100 • Electro-pneumatic Clutch and Brake • Adjustable stroke

Product Code: PPE-4-100

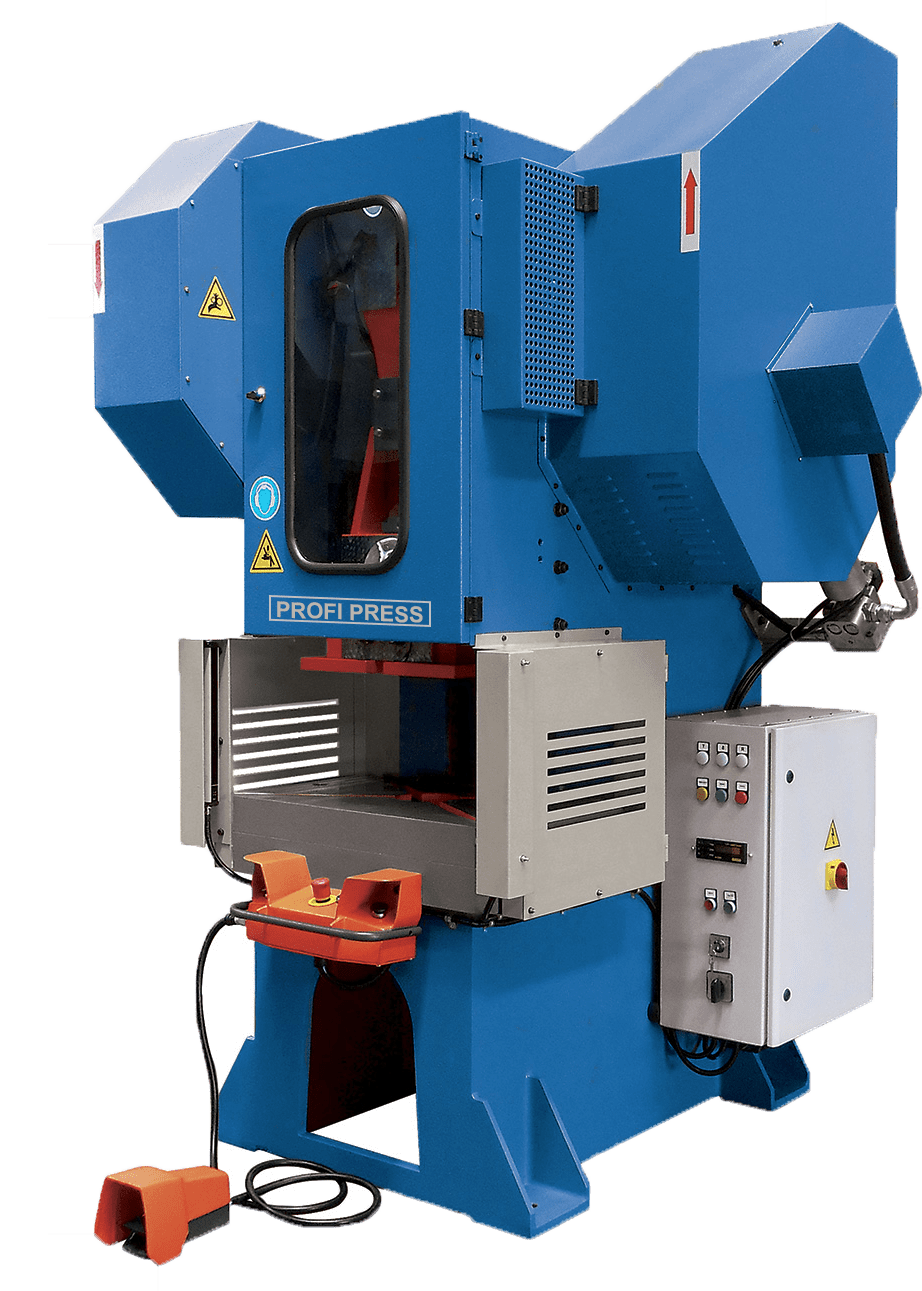

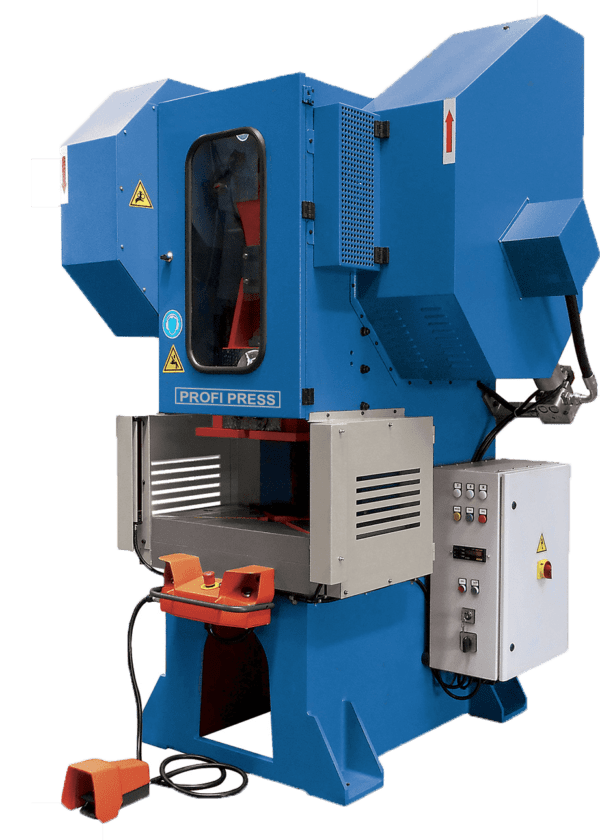

This eccentric press with 100 ton capacity is suitable to carry out tasks involving deep-drawing, cutting, punching and stamping. Our Profi Press mechanical presses can be used for various applications in many different industries. The automotive, railway and aerospace industries (for example) and many more related industries that use metal forming.

2-year warranty.

We produce this 100 ton mechanical press in Europe and we deliver all these presses according to the latest CE standards. High quality guaranteed!

    Specification Sheet Download Here
    PRODUCT VIDEO
    PRODUCT ENQUIRY
    • Description
    • Additional Info
    Technical specifications
    • Pressure force [tn]: 100
    • Motor power [kw]: 7,5
    • Throat depth [mm]: 280
    • Strokes per minute [spm]: 50
    • Stroke adjustment [mm]: 10 – 135
    • Max. closed mould height [mm]: 315
    • Distance between table and ram [mm]: 450
    • Ram adjustment [mm]: 60
    • Table size [mm]: 560 x 860
    • Ram size [mm]: 420 x 520
    • Table height [mm]: 800
    • Ø hole in the table [mm]: 250
    • Ø hole in the ram [mm]: 50
    • Total width (frontal) [mm]: 1630
    • Total length [mm]: 1640
    • Overall height [mm]: 2760
    Features of this 100 ton mechanical press
    • Central motorized lubrication system to guarantee a perfect performance and maintenance
    • Hydraulic overload protection to protect the machine components and installed tools
    • Electro-pneumatic clutch and brake combination equipped with a dual safety solenoid valve. This system includes a compensation tank, a regulator-lubrication filter and a pressure control switch
    • Lateral protection screens with level IV safety light guards
    • Programmable control system (PLC)
    • Adjustable stroke
    • Anti-vibration pads
    • Operation by means of two-hands push-button control as well as a foot pedal
    Optional accessories
    • Inverter (speed variation)
    • Pneumatic or hydraulic die ejector or cushion
    • Lower auxiliar table
    • Strain gauge system
    • NC digital display with memories to save various working cycle8

    The Profi Press mechanical C-frame presses: suitable for performing stamping, cutting and deep-drawing work.



    We produce these C-frame mechanical presses in Europe. Produced with only high quality components, made out of S355JR steel. High quality guaranteed!

    CE Certificate

    This press comes with a standard 2-Year Warranty and a CE Certificate as standard.

    All Profi Presses by RHTC are customisable, integrative, and have custom tools available.
    Please contact Workshoppress today with any questions by telephone at +44 (0) 800 999 1090, or by email at info@workshoppress.co.uk.
