A.50 Drilling Machine • 50mm Gear-Driven • Mechanical Clutch Feed

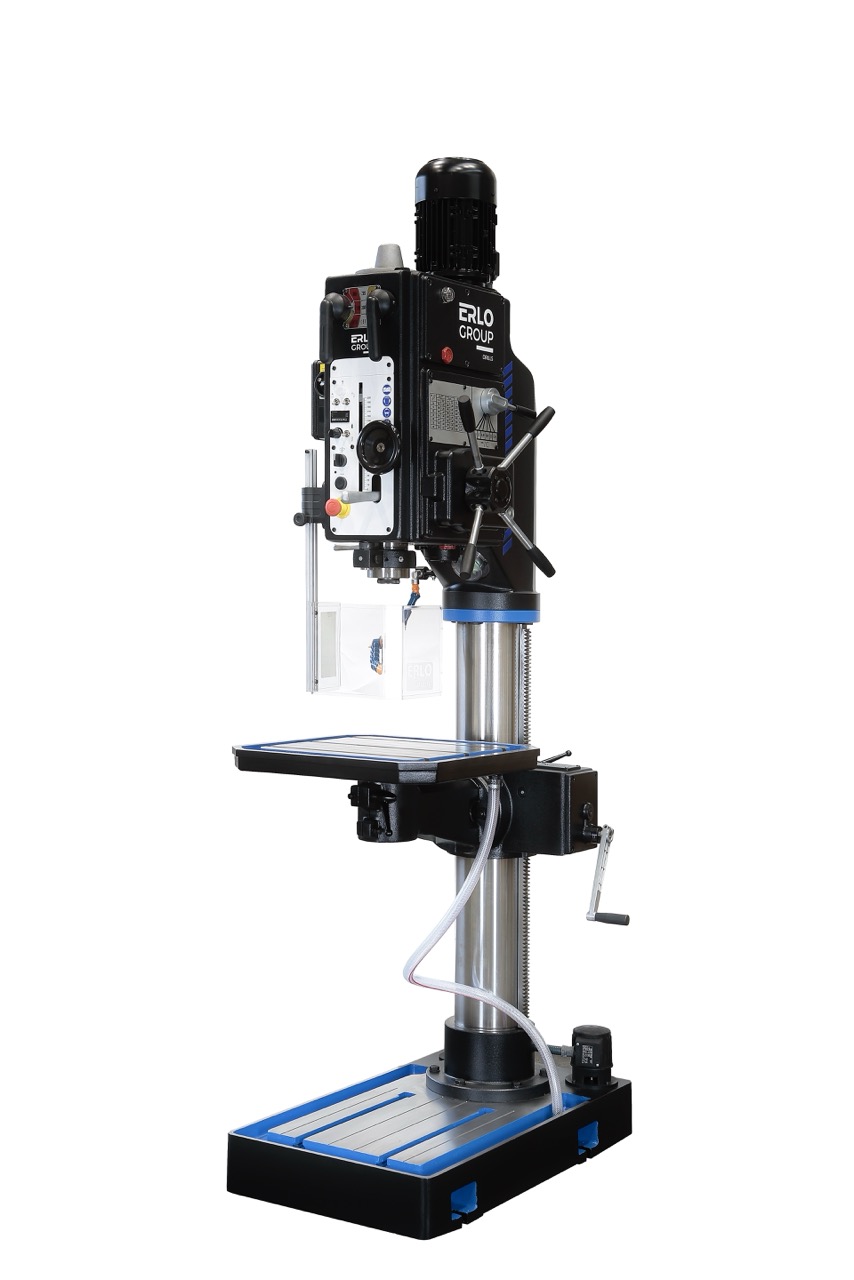

Product Code: ERLO-A.50The ERLO A.50 is a heavy-duty 50 mm manual-feed drill press designed for industrial environments demanding reliability and high torque. Featuring a greased hardened gear drive, deep spindle stroke, and cast iron frame, it’s ideal for large-bore manual drilling tasks.
- Description
- Additional Info
Built for power and stability, the A.50 combines a 2.2 kW motor with a deep 200 mm spindle stroke and 9 hardened gear speeds ranging from 61 to 1169 rpm. The hardened and greased steel transmission ensures long-term durability and performance. The CE-certified drill guard, emergency stop, and low-voltage control cabinet offer operational safety. A fixed 550 x 550 mm T-slot table provides secure part clamping for repeatable and accurate drilling, making the A.50 a preferred solution for large-diameter industrial applications.
Specifications
- Max Drilling Capacity in Steel [mm]: 50
- Max Tapping Capacity in Steel [mm]: M42
- Morse Cone: CM4
- Spindle Stroke [mm]: 200
- Motor Power [kW]: 2.2
- Transmission: Greased Hardened Gear Drive
- Speed Range [rpm]: 61–1169
- Number of Speeds: 9
- Feed Type: Manual
- Worktable Dimensions [mm]: 550 x 550
Features
- Manual feed with extended 200 mm stroke
- Hardened steel gear transmission with grease lubrication
- Fixed worktable with T-slots for heavy-duty clamping
- CE safety systems: emergency stop, micro-switch drill guard
- Cast iron construction ensures structural rigidity
Options
- Digital Depth Reader (LBC)
- Speed Variator Display (TAK)
- Manual Tapping Inversion (IR/RS)
- Rotary Tilting Table (MGI), Tilting Table with Vice (MGM)
- Base Cooling Unit (ERB), Tool Holders, Cross Tables
50mm manual-feed drill press with 200 mm stroke, 9-speed gear transmission, and cast iron structure for workshop use.
