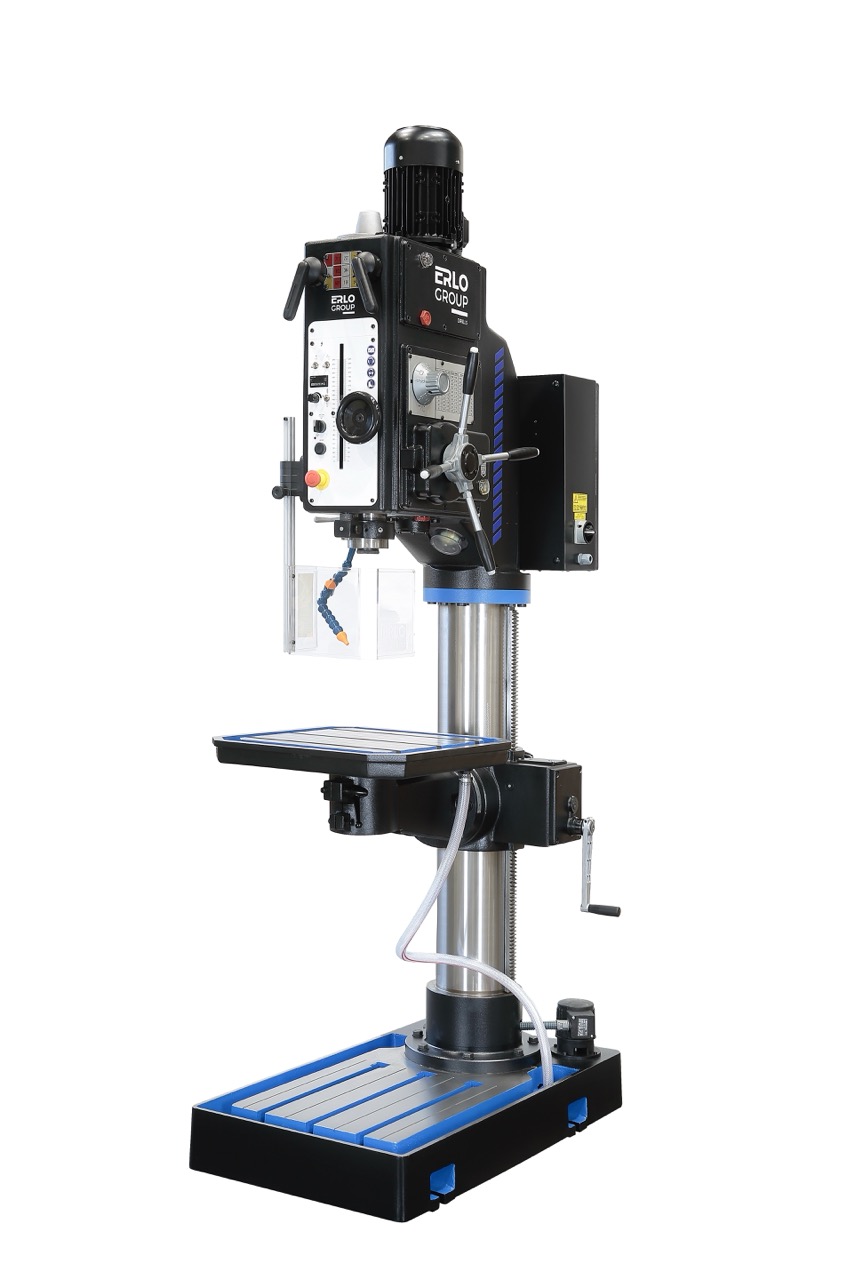

BX.60 Drilling Machine • 60mm Gear-Driven • Electromagnetic Feed
Product Code: BX.60The ERLO BX.60 is a powerful industrial-grade drilling machine with a 60 mm steel drilling capacity, designed for continuous-duty applications in heavy industry. With electromagnetic clutch automatic feed, hardened steel gear transmission, and a robust cast-iron frame, the BX.60 is engineered to deliver uncompromising performance and reliability for large-scale operations.
- Description
- Additional Info
The ERLO BX.60 delivers high-torque drilling and tapping capabilities with a maximum capacity of 60 mm in mild steel and M42 for tapping. Its hardened and ground steel gear transmission ensures durability, while the electromagnetic clutch provides automated feed control for smooth operation. The machine features a CM5 Morse taper, frontal wheel for fine feed, 600×600 mm tilting rotary table, and all-around CE-certified safety systems. Built with a 220 mm column diameter, this drill is perfect for demanding workshops, tool rooms, and manufacturing facilities that require strength and accuracy.
Technical Specifications
- Drilling Capacity in Steel [Ø mm]: 60
- Tapping Capacity [Metric]: M42
- Spindle Stroke [mm]: 260
- Motor Power [kW]: 4
- Morse Taper: CM 5
- Transmission: Hardened Steel Gears
- Speed Range [rpm]: 64–1210 (12 Speeds)
- Automatic Feed Rates [mm/rev]: 0.1 – 0.6
- Worktable Size [mm]: 600 x 600
- Column Diameter [mm]: 220
- Weight [kg]: 820 (Net), 920 (Gross)
Key Features
- Electromagnetic clutch for automatic feed
- Hardened and ground steel gears
- Tilting rotary table with T-slots
- CM5 Morse taper for large tooling
- Heavy-duty cast-iron construction
Optional Accessories
- LBC – Digital depth reader
- VE + TAK – Electronic speed variator and digital reader
- IR/RS – Auto rotation inversion for tapping
- RHP – Auto tapping system with standard spindle
- ACNL – Pneumatic counterweight for rapid travel
- CI – Comprehensive cycle with encoder
- SC – 200mm column supplement
Heavy-duty 60 mm gear-driven drill press with electromagnetic feed and tilting rotary table for industrial applications.
