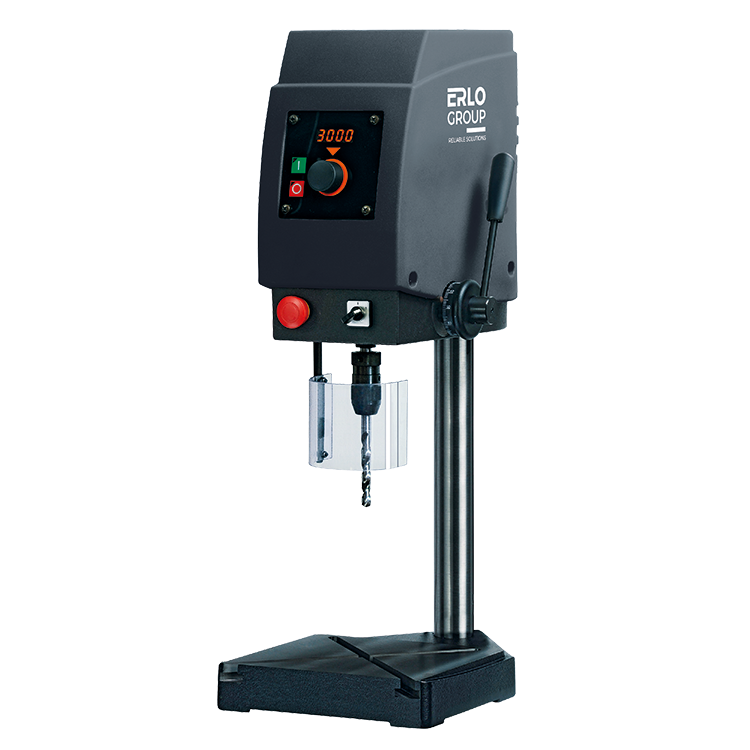

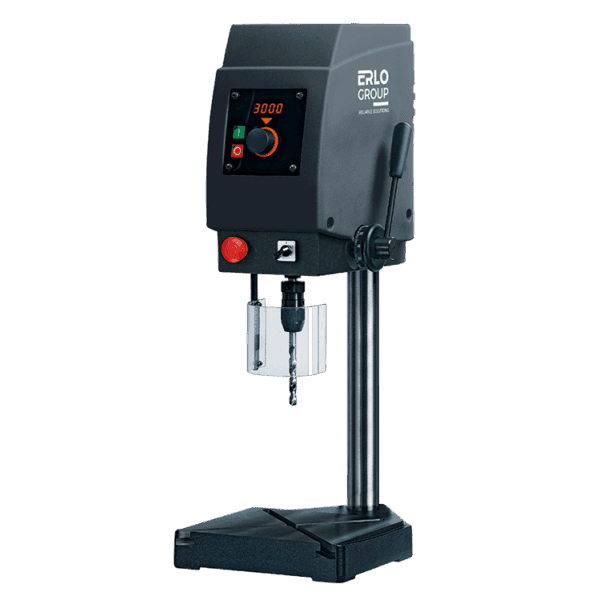

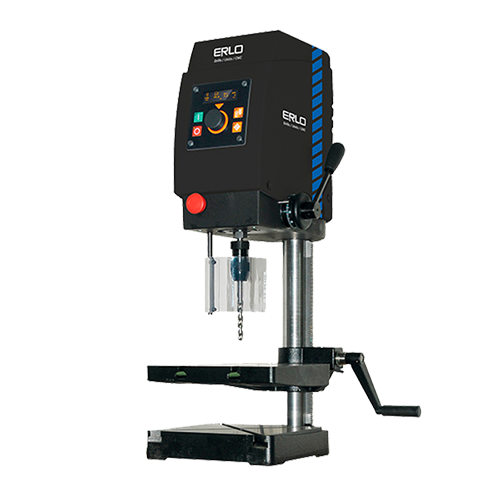

ERLO FT.1 Bench Top Tapping Machine • Tapping Capacity M5 • Manual Feed
Product Code: FT.1"Discover our exceptional range of Bench Top Tapping Machines, designed to deliver unmatched performance and precision in your drilling operations. We offer distinct models to meet your specific requirements, each equipped with advanced features and built to the highest standards of quality.
CE Certified.
Please contact for prices
- Description
- Additional Info
- Series FT – Bench Top Tapping Machines – Digital Model: FT-1
- Drilling capacity (Mild Steel): 8 mm
- Continuous drilling capacity: 6 mm
- Tapping capacity (Mild Steel): M5
- Spindle cone: B12
- Variable speed : 100-10000 rpm
- Voltage motor / power – : 0.54 kW
- Power source: 1-Phase, 230V, 50Hz
- Variator type:: Electronic
- Drilling depth: 60 mm
- Distance spindle nose : 220 mm
- Distance spindle-table: 140 mm
- Distance spindle-base: 315 mm
- Column diameter: 70 mm
- Number of “t” slots: 2 Cross Slots
- Distance between slots: n/a
- Feed: Manual
- Headstock height ad: Manual
- Table height adjustme: n/a
- Table dimensions (width : 300 x 250 mm
- CE Certified: Yes
- Dimensions: 320 x 450 x 830 mm
- Net weight: 44 Kg
- Features
- Digital multifunction screen
- Speed adjust and viewer
- Depth viewer
- Selector drilling/tapping
- Button to set up 0 position
- Lighting equipment
- Magnetothermic switch
- E-Stop
- Drill Guard with Micro-Switch
- CE Certified
- Optional Equipment
- Base cabinet with door and shelves (PKE – 250208)
- Drill chuck capacity 0,5/8 mm. b12, accuracy of concentricity: 0,20 mm (PCR.B12 – 285103)
- Keyless drill chuck (0,5-6 mm) b12, accuracy of concentricity: 0,05 mm (PCRS.B12 – 285104)
- Keyless drill chuck (1-13 mm) b16, accuracy of concentricity: 0,30 mm (only for model ft-6) (PCRS.B16 – 285133)
- Tap holder for m4-m12, b16 (PNR.4-12 – 285109)
- Fixed base vice, opening 95 mm. (MF – 281296)
- Fixed intermediate table (standard in ft-4 models) (MIF – 290521)
Erlo: Tradition and Innovation in Drilling and Tapping Machines
Erlo is a leading manufacturer of drilling and tapping machines, with over 50 years of experience in the industry. ERLO is known for reliable and durable machines, which are made with high-quality materials and components. ERLO’s machines are also easy to use and maintain, making them a good choice for machinists and metal fabricators of all levels of experience.
In addition to the standard range of drilling and tapping machines, also offered are customized solutions for specific applications are designed with a deep understanding of the custoer’s needs and the machine designs meet those needs perfectly.
It is the belief that tradition and innovation go hand-in-hand and ERLO has a committment to providing their customers with the latest technology and also value the traditional values of craftsmanship and quality.
If you are looking for a reliable and innovative drilling and tapping machine, Erlo is the perfect choice for you. Contact us today to learn more about our products and services.
ERLO products are proudly sold by The Workshop Press Company UK based in Kenilworth, Warwickshire.
