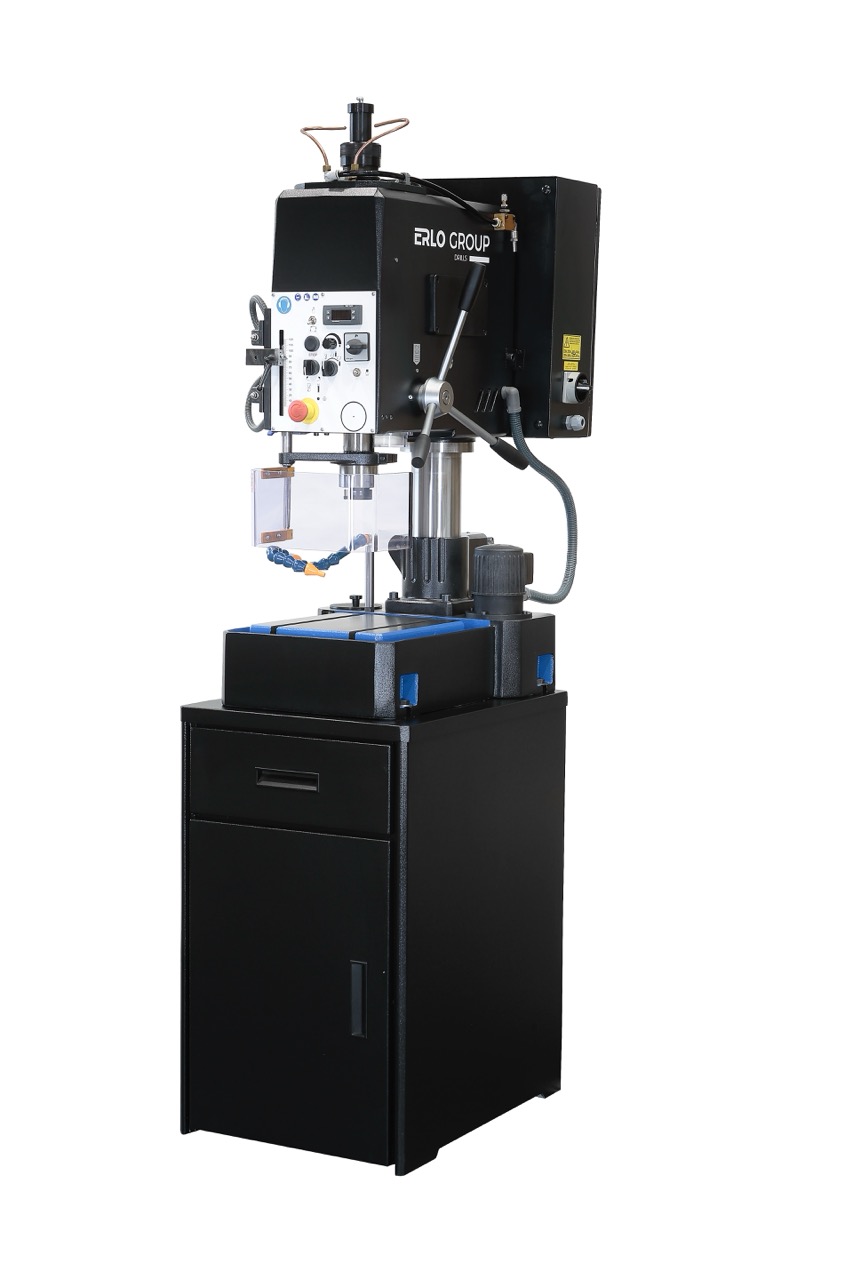

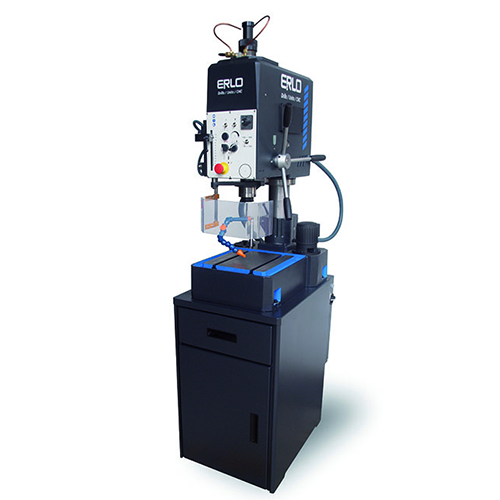

SH Series from ERLO • Benchtop • Manual Feed • V-Belt Drive • Drilling 18-25 mm • Tapping M14-M25 • MT3

Product Code: SH-SERIES-ERLO

"Discover our exceptional range of Bench Type Drilling Machines, designed to deliver unmatched performance and precision in your drilling operations. We offer distinct models to meet your specific requirements, each equipped with advanced features and built to the highest standards of quality.

CE Certified.

Please contact for prices

    • Description
    • Additional Info



    Bench Top Tapping Machines S – Series

    Specification / Model SH.18 SH.30
    Tapping Capacity: M14 M25
    Transmission: V-BELT V-BELT
    Speeds (10)(w/o variator)(rpm): 245 to 4.000 245 to 4.000.
    Drilling feed Manual Manual
    Motor (hp): 1.5 2
    Taper: MT3 MT3
    Maximum tapping depth (mm): 90 90
    Distance spindle-column (mm): 250 250
    Distance Spindle to Table (Min/Max mm): 155 /485 155 /485
    Distance Spindle to Table w/ coolant (Min/Max mm):  225 / 555 225 /555
    Column diameter (Ø mm): 100 100
    Base w/o Coolant (mm): 270 x 270 270 x 270
    Base w/Coolant (mm): 316 x 288 316 x 288
    CE Certified Yes Yes
    Weight: net / gross (kg): 230 / 250 230 / 250
    Shipping Dimensions (mm) 890 x 640 x 1350 890 x 640 x 1350

    Thread Metric & Pitch

    Metric Pitch* Pitch Withworth
    M2 / M2.5 0.45 12H”
    M3 0.5 14H”
    M4 0.7 16H”
    M5 0.8 18H”

    NOTE: Special pitches: all the pitches with left thread and the pitches with right thread not stated in this chart



    Features

    • Automatic tapping feed
    • Geared drive
    • Fixed Table

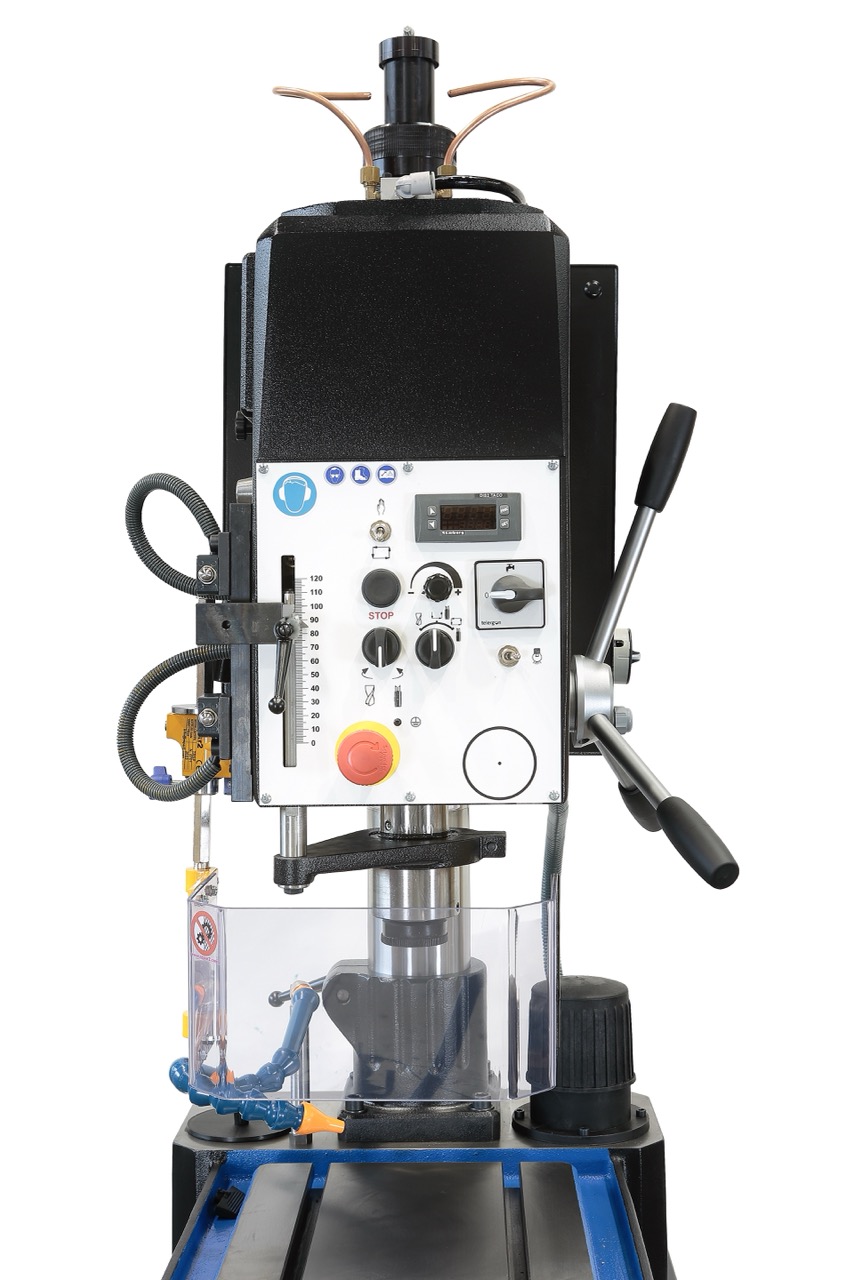

    • Rotating Headstock
    • Gears are Hardened and Ground
    • Table & Base with DIN-650 T-Slots
    • Adjustable depth end
    • Lighting equipment
    • Tool ejector
    • 1 lead screw included, pitch to be determined
    • Tapping cycle selection (1 cycle / continuous cycle)
    • Automatic or manual tapping selection
    • Adjustable ends and micros, for depth, turning and stop
    • Bracking device for variator
    • Emergency push button
    • Main switch
    • Turning sense selector
    • Electrical equipment at low voltage
    • Electrical equipment in a separate cabinet
    • Drill Guard with Micro-Switch
    • CE Certified
    FAQ button for all product categories offered by The Workshop Press Company UK
    View Pillar Drill Press FAQs by Clicking HERE

    Erlo: Tradition and Innovation in Drilling and Tapping Machines

    Erlo is a leading manufacturer of drilling and tapping machines, with over 50 years of experience in the industry. ERLO is known for reliable and durable machines, which are made with high-quality materials and components. ERLO’s machines are also easy to use and maintain, making them a good choice for machinists and metal fabricators of all levels of experience.

    In addition to the standard range of drilling and tapping machines, also offered are customized solutions for specific applications are designed with a deep understanding of the custoer’s needs and the machine designs meet those needs perfectly.

    It is the belief that tradition and innovation go hand-in-hand and ERLO has a committment to providing their customers with the latest technology and also value the traditional values of craftsmanship and quality.

    If you are looking for a reliable and innovative drilling and tapping machine, Erlo is the perfect choice for you. Contact us today to learn more about our products and services.

    ERLO products are proudly sold by The Workshop Press Company UK based in Kenilworth, Warwickshire.
