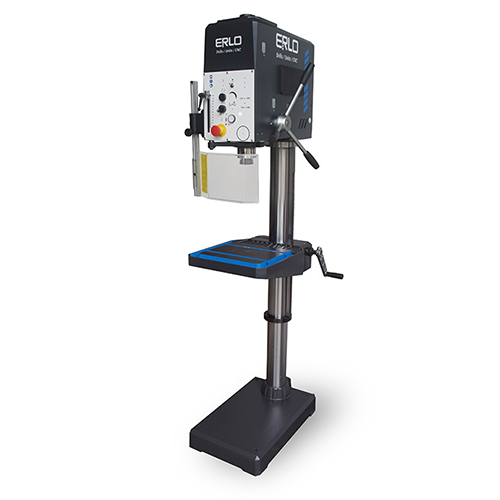

ERLO V.32 Professional Pillar Drill • V-Belt • Manual Feed • 32 mm Drilling • 24 mm Tapping
Product Code: V.32The ERLO V-32 Professional Pillar Drill is a powerful and versatile drill that is ideal for a variety of industrial applications. It features a V-belt drive for smooth and precise operation, a manual feed for greater control, and a maximum drilling capacity of 32 mm. It also has a variable speed control, which allows you to adjust the speed of the drill to the material you are working with.
The ERLO V-32 is a sturdy and reliable drill that is built to last. It is made from high-quality materials and features a number of safety features, such as a spindle lock and a reversing switch. The drill is also easy to use and maintain.
The key benefits of the ERLO V-32 Professional Pillar Drill are that it is powerful and versatile, it has a V-belt drive for smooth and precise operation, a manual feed provides outstanding control, a maximum drilling capacity of 32 mm, a variable speed control, a sturdy and reliable construction, it has incorporated safety features, and it is easy to use and maintain.
If you are looking for a powerful and versatile pillar drill that is built to last, the ERLO V-32 Professional Pillar Drill is a great option. It is a reliable and durable drill that is easy to use and maintain.
Please contact for prices
- Description
- Additional Info
Specifications
- Drilling capacity (mild steel): 32
- Tapping capacity (mild steel): M24
- Transmission: V-Belt
- Speed number and range 50 hz.: 245-355-490-710-835-1240-1670-2000-2480-4000 rpm.
- Feed: Manual
- Main motor power: 3.2 HP
- Main motor RPM: 750/1500
- Spindle cone: MT3
- Spindle stroke: 120 mm
- Distance spindle to column: 250 mm
- Distance spindle to table: Min 85 mm/ Max 635 mm
- Distance spindle to base: 1195 mm
- Column diameter: 100 mm
- Dimensions of the table (with 2 T-Slots): 270 x 300 mm
- Dimensions of the base without T-Slots (without coolant): 600 x 380 mm
- Dimensions of the base with 2 T-Slots (with coolant): 665 x 400 mm
- CE Certified: Yes
- Weight: 260 Kg
- Weight Packaged: 320 Kg
- Packaging dimensions and volume: 2101 x 570 x 800 mm / 0.97 m3
Features
- Moveable Table
- Fixed Headstock
- Adjustable depth
- Tool ejector
- Belt cover with stop micro
- Emergency push button
- Turning sense selector
- Electrical equipment at low voltage
- Drill guard with stop micro
- Fixed table
- CE norms
Optional Equipment
- Lighting equipment (L – 20010)
- Manual tapping system ir/rs (IR/RS – 10042)
- Rotating table (for serie v.32) (MG – 20082)
- Rotating and tilting table (for series v.40 and vp.40) (MGI – 30084)
- Reversible rotating table with vice (for series v.40 and vp.40) (MGM – 20087)
- Coolant equipment in the base (ERB – 91118)
