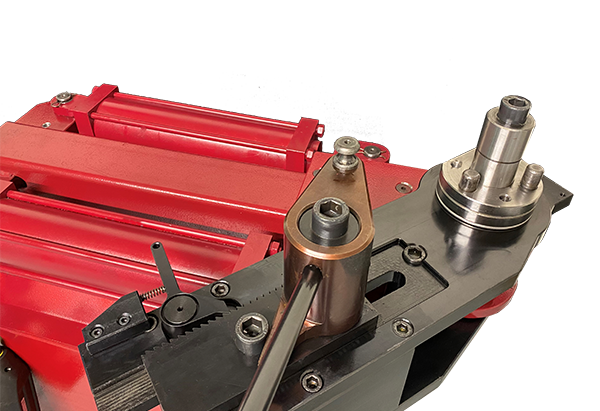

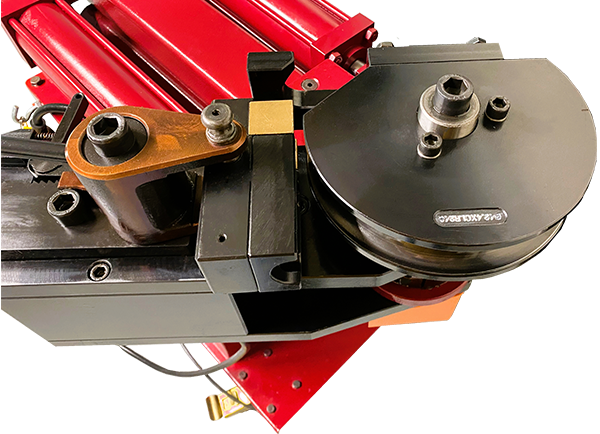

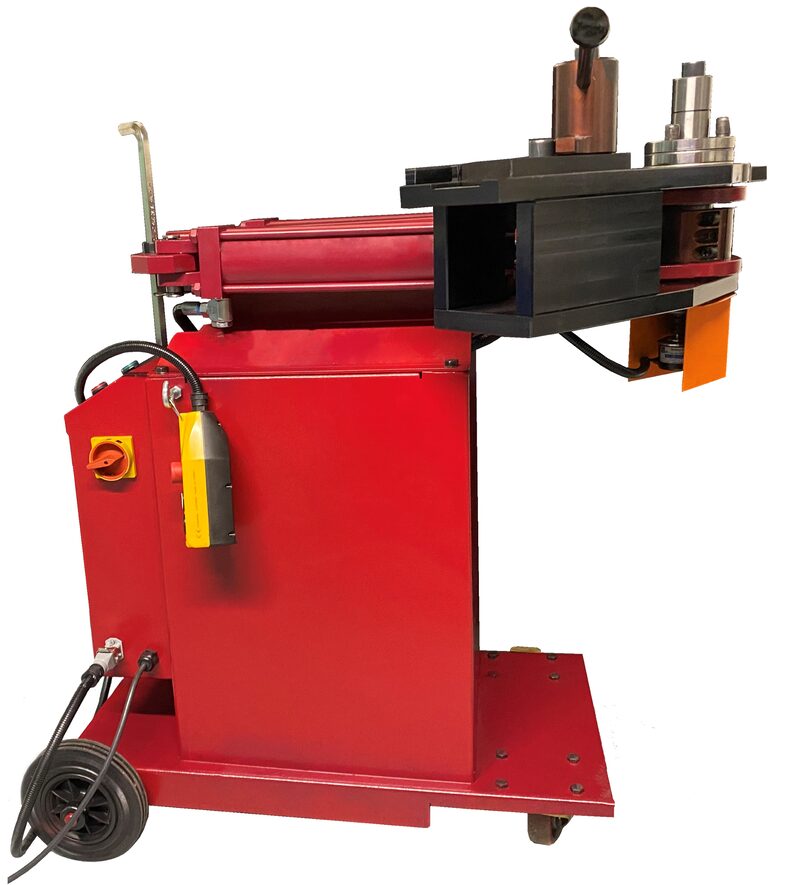

WRDB-175 • Tube Bender • Capacity of 2″ Schedule 40 Pipe • 1-Phase

Product Code: WRDB-175

The WRDB-175 Tube Bender is a high-quality machine engineered for durability, precision, and ease of use. Designed to handle a wide range of materials, it delivers reliable performance in any fabrication setting.

Key Features:

Versatile Capacity: Capable of bending 2″ Schedule 40 pipe (60 mm × 4 mm) and up to 2.5″ tubing with a wall thickness of 0.120″ (62 mm × 3 mm) in mild steel.

Efficient Operation: Simplistic design ensures minimal effort during operation, making it user-friendly and efficient.

High-Quality Build: Constructed with premium components for long-term reliability and precision performance.

Tooling Information:

The machine is supplied without bending dies or tools.

Images are for demonstration purposes only.

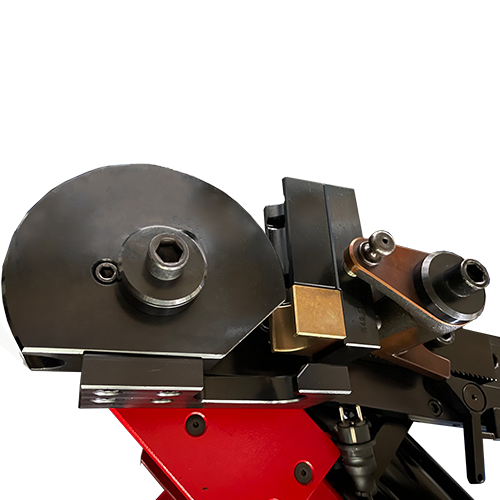

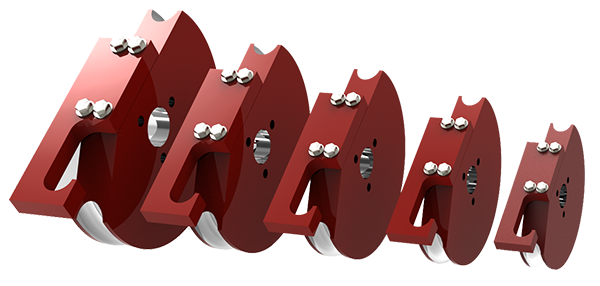

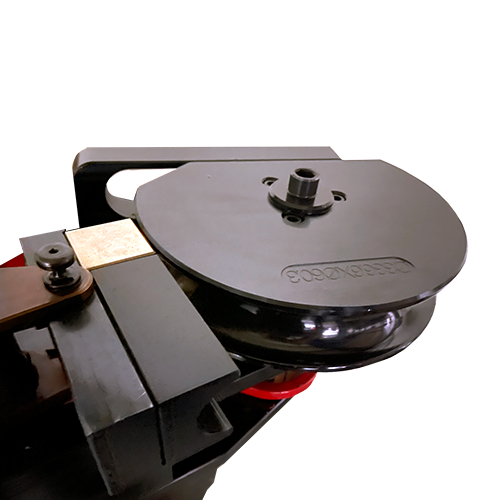

Popular die sets such as 42.2 mm OD and 48.3 mm OD with various Centre Line Radii (CLR) are available separately (See listing below).

Custom tools can also be manufactured upon request.

For tooling options, pricing, or bespoke die requirements, please contact us today.

£8,975.00 (£8,975.00 ex VAT)

    • Description
    • Additional Info

    Technical Specifications

    • Minimum CLR: 13 mm
    • Minimum OD: 6 mm
    • Maximum Speed to 180°: 12 sec
    • Mild Steel Solid Rod: 32 mm
    • Mild Steel Pipe Schedule 40: 60 mm x 4 mm
    • Mild Steel Round Tube Wall: 64 mm x 3 mm
    • Mild Steel Square Tube Wall: 50 mm x 3 mm
    • Stainless Steel Pipe Schedule 40: 48 mm x 3 mm
    • Stainless Steel Round Tube Wall: 60 mm x 3 mm
    • Chromoly Round Tube Wall: 50 mm x 3 mm
    • Aluminum Pipe Schedule 40: 60 mm x 4 mm
    • Aluminum Round Tube Wall: 64 mm x 4 mm

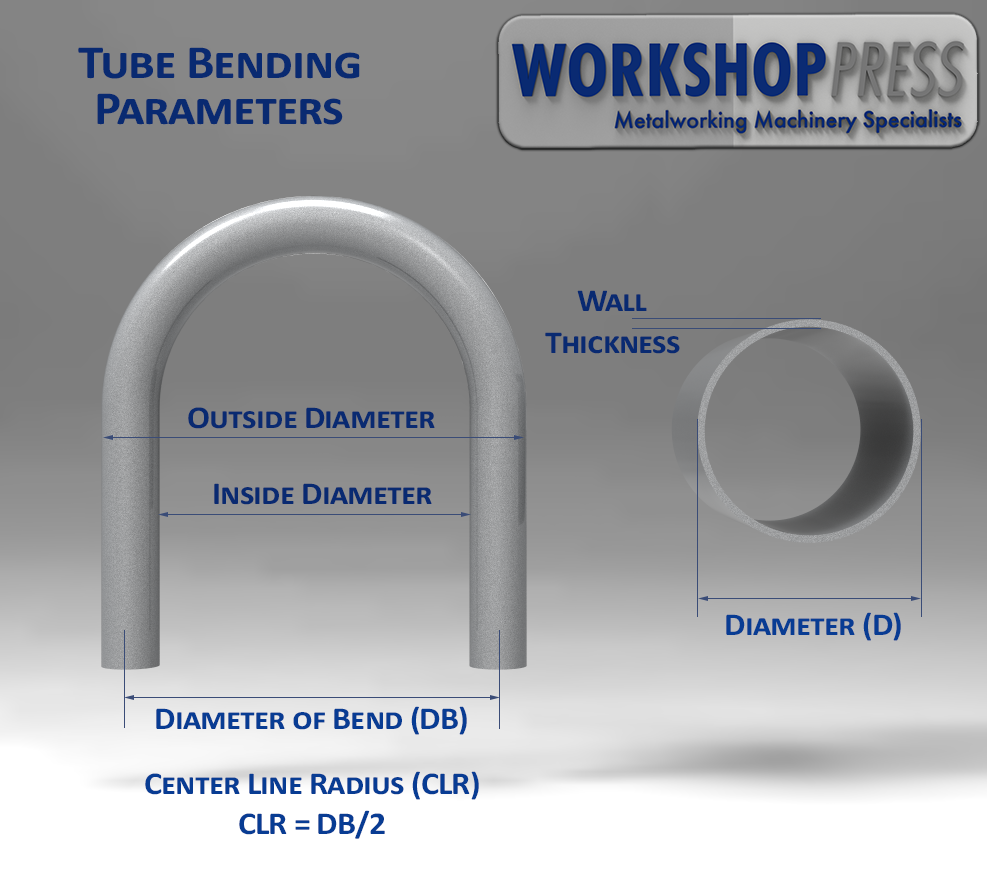

    • Maximum Center Line Radius (CLR): 229 mm
    • Power: 220V, 50Hz, 1-Phase
    • Shipping Weight: 286 kg
    • Shipping Dimensions: 1118 mm x 711 mm x 1067 mm

    Tools for Common Pipe & Tube Sizes

    • Nominal Bore Pipe 1/4″ – OD: 13.7 mm
    • Nominal Bore Pipe 1/2″ – OD: 21.3 mm
    • Nominal Bore Pipe 3/4″ – OD: 26.9 mm
    • Nominal Bore Pipe 1″ – OD: 33.7 mm
    • Nominal Bore Pipe 1-1/4″ – OD: 42.4 mm
    • Nominal Bore Pipe 1-1/2″ – OD: 48.3 mm
    • Nominal Bore Pipe 2″ – OD: 60.3 mm
    • Metric Tube: 10 mm OD
    • Metric Tube: 12 mm OD
    • Metric Tube: 16 mm OD
    • Metric Tube: 20 mm OD
    • Metric Tube: 25 mm OD
    • Metric Tube: 30 mm OD
    • Metric Tube: 38 mm OD
    • Metric Tube: 42 mm OD
    • Metric Tube: 48 mm OD
    • Metric Tube: 50 mm OD
    • Metric Tube: 60 mm OD

    Compatibility

    • Compatible with Baileigh Industrial-style rotary draw tube benders
    • Bespoke Tools Available
    • Supports 1/2″ to 2″ NB pipe and metric tubes up to 60 mm
    • Suitable for use with mild steel, stainless steel, aluminum, and chromoly tubing
    • Ideal for fabrication shops, race car builders, and structural steel work
    • Tooling available for Various Centre Line Radii(CLR)

    CE Certified with a 2-year warranty.

    The WRDB-175 is  Manufactured in the EU according to CE regulations and come with a 2-Year Warranty supported by WorksshopPress.co.uk technical sales and service from Warwickshire.
