AE-2- Series Coil Feeding Line from LARA

Product Code: AE-2 Series

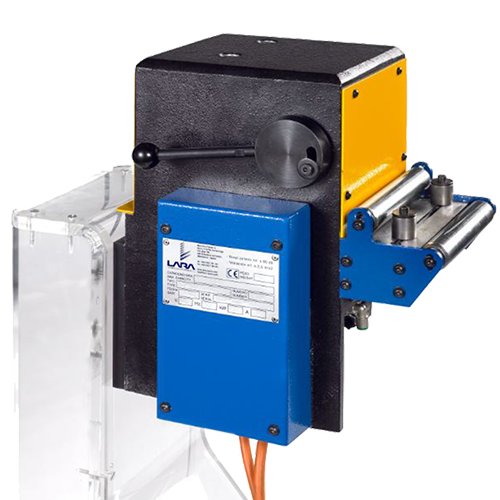

Optimize your cyclical material feeding with the AE-2 Series KOMPACT Electronic Roller Feeder. Perfect for materials provided in coils, this compact machine revolutionizes metal stamping and metal forming processes with its top-of-the-line Motion-Drive control system. Experience unparalleled precision in strip positioning, ensuring consistent feed length and enhancing operational efficiency.

Ease of installation and programming are key features of the AE-2 KOMPACT, empowering user industrial metal forming companies to execute assembly and setup swiftly and securely. With user-friendly design and functionality, it reduces downtime and expedites production timelines, bolstering your bottom line.

To further enhance your metal pressing operations for industrial applications, we offer a selection of optional accessories, tailored to your unique needs and specific model. Choices range from an electronic cam box to 95 Shore A polyurethane rollers, specialized guides for handling delicate materials, an external encoder, and lubricant systems. These accessories are available upon request, allowing you to customize your machine for maximum performance and longevity.

Harness the power and precision of the AE-2 KOMPACT Electronic Roller Feeder in your metal stamping and forming processes. Contact us today to request optional accessories or to learn more about how this feeder can transform your operations

Please contact for prices

    • Description
    • Additional Info

    Transmission

    • Free maintenance AC servomotor equipped with inner resolver for accurate strip positioning.
    • Motor power output to the drive feeding roll by a pulley and toothed belt “no-shake” driving system.
    • Power transmission to the upper feeding roll via precision spur gears.
    • Motion-Drive digital servo-controller for processes with repetition of the feed length.

    Feeding Head

    • Two lightweight, treated feeding rolls with non-slip surface treatment. The surface hardness is 60-62 HRC.
    • Pressure applied to the strip by springs from the upper roll.
    • Pneumatic roll lifting synchronized with the forming machine for strip entry and self-centering when working with dies equipped with auto-centering devices (pilot release).
    • Strip thickness adjustment system featuring an eccentric level with mechanical blocking.
    • Support rollers and adjustable width guides to assist in strip entry.

    Control Unit

    • Separated from the feeder, it contains all the auxiliary electrical equipment necessary for proper functioning, as well as individual protection elements.
    • Options:
      • Single-step
      • Sequential
      • Multi-step
    • Electronic control consisting of a switch cabinet and a programming terminal with a color LCD touch screen.
      • Main switch
      • Programmable feed length up to 9999 mm
      • Programmable speed in %
      • Operational parameters
      • Diagnosis and display error’s messages
      • Emergency stop





    Specifications AE-2/200 AE-2/300 AE-2/450 AE-2/600 AE-2/750
    Max Width (mm) 200 300 450 600 750
    Max Thickness (mm) 4 4 4 4 4
    Max Feeding Section (900 mm²) 200 x 3 300 x 3 450 x 2 600 x 1.5 750 x 1.2
    Feeding Rollers Diameter (mm) 85 85 85 85 85
    Advance Accuracy (mm) ± 0.05 ± 0.05 ± 0.05 ± 0.05 ± 0.05
    Feed Speed in Continuous (m/min) 200 200 200 200 200
    Height Adjustment (mm) ± 75 ± 75 ± 75 ± 75 ± 75




    Coil Feeding System Inquiry Guidelines for Customers

    To ensure we provide the most effective and efficient coil feeding system for your needs, we kindly ask you to provide detailed information about your requirements. The guide below is designed to help you identify and communicate the specific details of your project. This information will enable us to tailor our solutions precisely to your needs, ensuring optimal performance and satisfaction.

    General Requirements:

    • Space Dimensions: Specify the area available (length x width x height).
    • Working Direction: Indicate preferred operational direction.
    • Feeding Height: State the required height for material feeding.
    • Voltage Requirements: Mention electrical specifications needed.

    Material Details:

    • Type of Material: Describe the material (steel, aluminum, etc.).
    • Thickness Range: Provide the range of material thickness.
    • Width Range: Indicate the width range of the material.
    • Yield Strength: Specify the material’s yield strength.

    Equipment Specifications:

    • Decoiler Details: Include maximum coil weight and inner/outer diameter.
    • Cart Options: Mention if a cart is required for coil handling.

    Straightener and Feeder Specifications:

    • Straightener Thickness Range: State the thickness range the straightener can handle.
    • Feeder Speed: Indicate the required feeding speed.
    • Advance Distance: Mention the advance distance per stroke.

    Production Line Configuration:

    • Configuration Type: Choose from options like compact, short, or long line.
    • Part Description/Drawing: Provide a detailed description or a drawing of the production part.
