Custom Workshop Press with Foot Pedal Control

Product Code: Custom Workshop Press-1

    standard hydraulic press - Purchase a Hydraulic Press
    PRODUCT ENQUIRY
    • Description
    • Additional Info

    [one_third]

    Technical specifications for Custom Workshop Press with Foot Pedal Control

    • Pressure force [kN]: 981
    • Maximum pressure [bar]: 258
    • Piston stroke [mm]: 380
    • Oil delivery [ltr/min]: 5.64/17.2
    • Oil capacity [dm³]: 46
    • Working speed [mm/sec]: 2.47
    • Approaching speed [mm/sec]: 7.54
    • Return speed [mm/sec]: 9.06
    • Motor power [kW]: 2.2
    • Voltage [V]: 400/3
    • Frequency [Hz]: 50/60
    • Revolutions per minute [rpm]: 3000
    • Insulation protection [IP]: 54
    • Working width [mm]: 1100
    • Weight [kg]: 970
    Workshoppress Motorised Workshoppress Specificatins Sheet Thumbnail
    Specification Sheet

    [/one_third]

    [one_third]

    Features

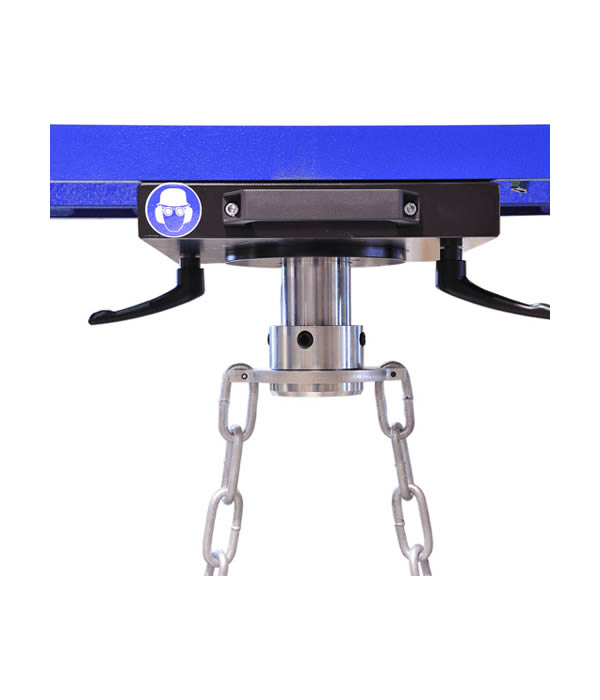

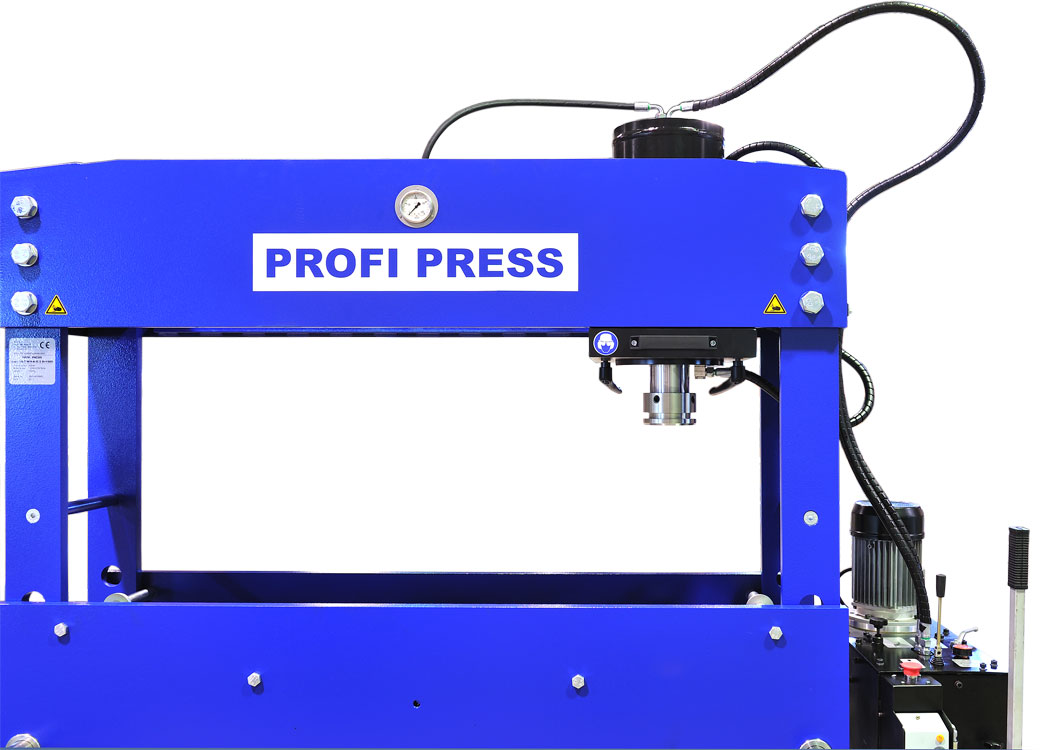

    • Movable cylinder (left-right)
    • Integrated pressure manometer
    • Pressure regulation

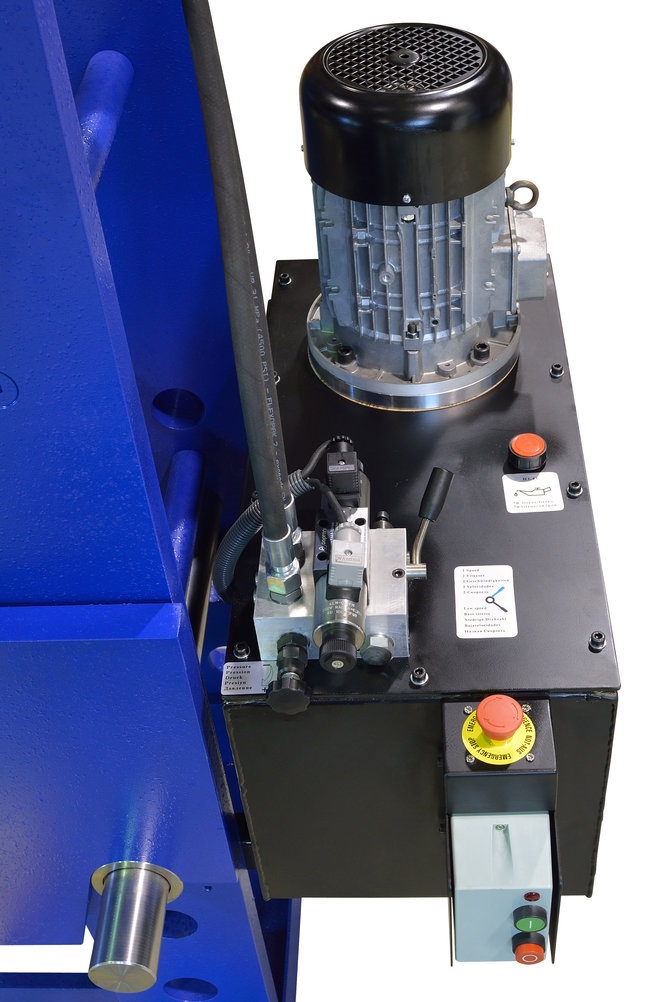

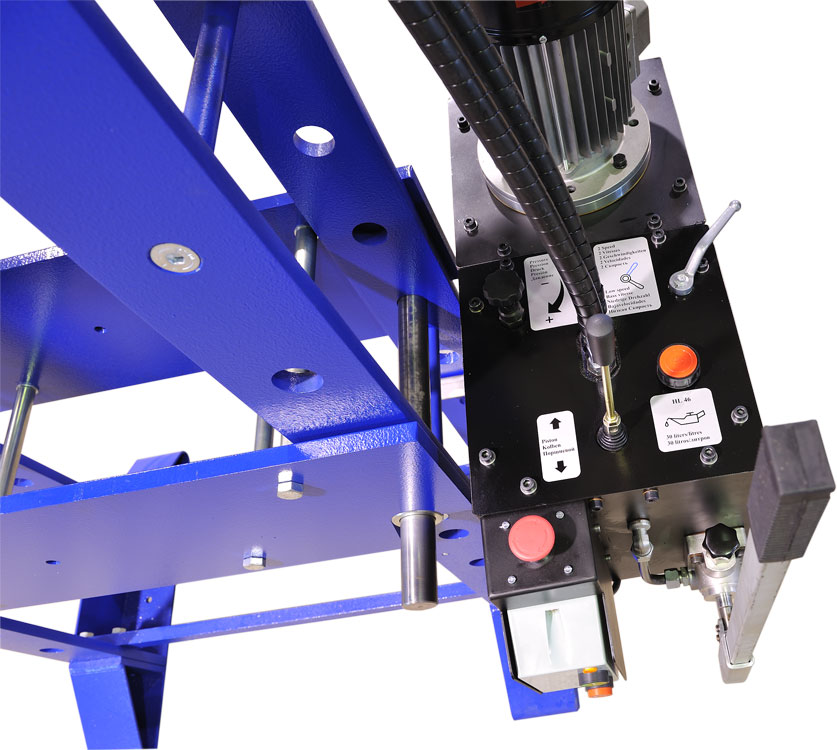

    • Hydraulic unit with two speeds
    • In height adjustable working table
    • Joystick for the control of the piston
    • Hand pump for precise press work

    Optional accessories

    • V-Block sets
    • foot pedals
    • hand controls
    • additional safety features
    • system integrations
    • mandrel sets
    • corner rounding notchers
    • corner wedge-shaped punches
    • corner notchers
    • hole punches of all shapes and sizes
    • tube and pipe notching
    • drain hole nibbler punch
    • brake press tooling
    • custom tools

    [/one_third]

    [one_third]

    Diameters

    • Inside diameter of cylinder [mm]: 220
    • Diameter of piston rod [mm]: 90
    • Diameter of piston head [mm]: 120

    Dimensions in mm

    • A: 2140
    • B: 1350
    • C: 755
    • D: 1100
    • E: 300
    • F: 1665
    • G: 150
    • H: 180
    • I: 750
    • J: 865
    • K: 250

    [/one_third]

    0/5 (0 Reviews)

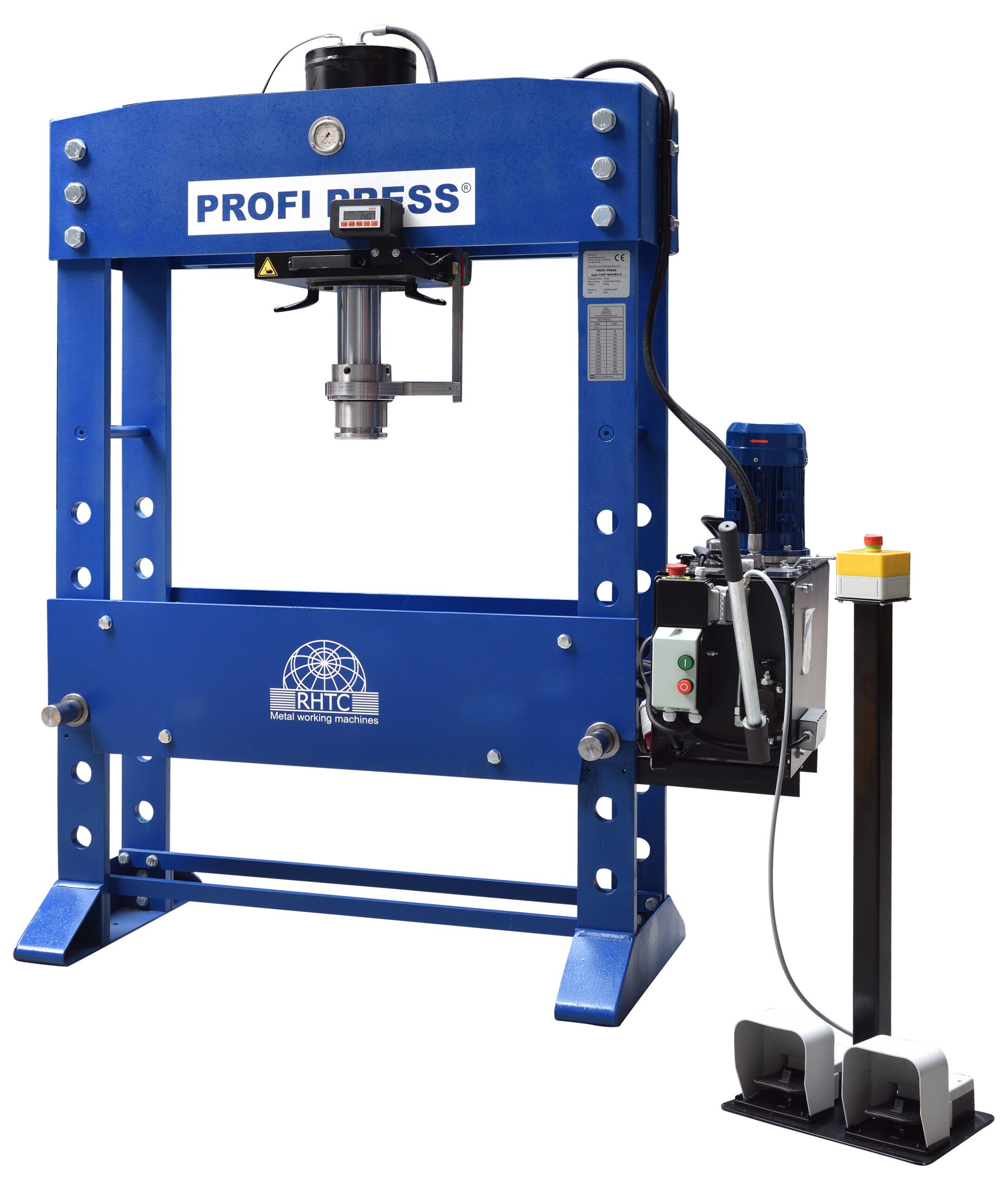

    WorkshopPress.co.uk offers and stocks RHTC the full line of standard hydraulic presses and we also offer custom-made presses.  All of our sales and service are based in Warwickshire. Displayed here a 100-ton Hydraulic Workshop Press with a foot control that controls the direction of the cylinder and has an E-Stop for operator safety.

    This bespoke hydraulic press is the same as the standard 100-ton hydraulic workshop press outside of the fact that the standard joystick control is replaced with a foot pedal control.  Foot pedal control provides the operator increased flexibility when attempting to complete accurate and tricky pressing operations.

    WokshopPress.co.uk offers the broad range of RHTC hydraulic presses all of which can be modified or customised to suit your needs. As you see here the presses can also be integrated into production systems that help our customers save time and make more money.

    In addition to modifying and integrating the standard presses, we can produce presses that are truly a one-off or that are completely bespoke. There are no limitations on what we can offer as far as pressing applications are concerned, so contact WorkshopPress.co.uk today to discuss your press needs.
