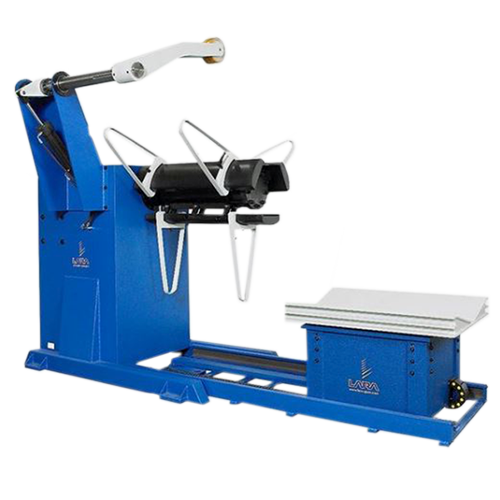

De-Coiler • Re-Coiler • Decoiler • Recoiler Lines • D-Series
Product Code: D-SeriesOur Mechanical Expansion Decoilers and Recoilers provide a cost-effective and robust solution, featuring a stable base and durable construction. Built with high-quality materials and precision manufacturing, these machines are designed for long-lasting, reliable performance.
For more demanding applications, our Hydraulic Expansion Decoilers and Recoilers with electrical drive are the optimal choice. These models are engineered to handle medium to high-weight coils, offering quick, easy loading while minimizing operator effort and safety risks.
The D Series accommodates coil capacities from 150 to 15,000 kg, widths from 900 to 1800 mm, and diameters up to 2000 mm. Custom features are available upon request, with a variety of optional accessories including motorized or non-motorized configurations, pneumatic or hydraulic hold arms, variable speed controls, and coil loading carts. Advanced loop control options such as laser, ultrasound, and potentiometer systems are also offered.
Optimize your metalworking operations with our versatile and customizable Decoilers and Recoilers. Contact us today to discover the ideal solution for your industrial needs.
Please contact for prices
- Description
- Additional Info
Series General Features
- Weights: 150 – 15000 Kg
- Widths: up to 1800 mm
- OD: up to 2000 mm (Others on request)
Optional Accessories
- Motorized or non-motorized decoiler
- Hold arm system: Pneumatic or hydraulic, motorized or non-motorized
- Speed: fixed or variable
- Keeper arms or cone system
- Coil loading cart: mobile or fixed
- Loop control, by stop-ground, laser, ultrasound, potentiometer…
- (Others on request)
Machine Specifications
| Specification / Machine | D-150/900 | D-1000/1200 | D-2000/1400 |
|---|---|---|---|
| Max weight (kg) | 150 | 1000 | 2000 |
| Max width (mm) | 900 | 1200 | 1400 |
| Max thickness (mm) | on request | on request | on request |
| Max feeding section (mm²) | on request | on request | on request |
| Max width x max thickness | on request | on request | on request |
| Feeding rollers (mm) | on request | on request | on request |
| Advance accuracy (mm) | on request | on request | on request |
| Speed in continuous (m/min) | on request | on request | on request |
| Height adjustment (mm) | on request | on request | on request |
Machine Specifications
| Specification / Machine | D-3000/1400 | D-4000/1400 | D-10000/1800 | D-12500/1800 |
|---|---|---|---|---|
| Max weight (kg) | 3000 | 4000 | 10000 | 12500 |
| Max width (mm) | 1400 | 1400 | 1800 | 1800 |
| Max thickness (mm) | on request | on request | on request | on request |
| Max feeding section (mm²) | on request | on request | on request | on request |
| Max width x max thickness | on request | on request | on request | on request |
| Feeding rollers (mm) | on request | on request | on request | on request |
| Advance accuracy (mm) | on request | on request | on request | on request |
| Speed in continuous (m/min) | on request | on request | on request | on request |
| Height adjustment (mm) | on request | on request | on request | on request |
Coil Feeding System Inquiry Guidelines for Customers
To ensure we provide the most effective and efficient coil feeding system for your needs, we kindly ask you to provide detailed information about your requirements. The guide below is designed to help you identify and communicate the specific details of your project. This information will enable us to tailor our solutions precisely to your needs, ensuring optimal performance and satisfaction.
General Requirements:
- Space Dimensions: Specify the area available (length x width x height).
- Working Direction: Indicate preferred operational direction.
- Feeding Height: State the required height for material feeding.
- Voltage Requirements: Mention electrical specifications needed.
Material Details:
- Type of Material: Describe the material (steel, aluminum, etc.).
- Thickness Range: Provide the range of material thickness.
- Width Range: Indicate the width range of the material.
- Yield Strength: Specify the material’s yield strength.
Equipment Specifications:
- Decoiler Details: Include maximum coil weight and inner/outer diameter.
- Cart Options: Mention if a cart is required for coil handling.
Straightener and Feeder Specifications:
- Straightener Thickness Range: State the thickness range the straightener can handle.
- Feeder Speed: Indicate the required feeding speed.
- Advance Distance: Mention the advance distance per stroke.
Production Line Configuration:
- Configuration Type: Choose from options like compact, short, or long line.
- Part Description/Drawing: Provide a detailed description or a drawing of the production part.
Lara Spain, a leading name in the metal forming industry. With over 25 years of experience, Lara specializes in the design, manufacture, and installation of top-tier machinery for metal forming processes. Their product range includes Metal Coil Decoilers, Coil Straighteners, Coil feeders, and other essential equipment for Metal Strip Processing.
Lara serves a diverse range of industries using metal forming applications, including automotive, aerospace, and construction. Lara’s strong presence in the European and Global Metal Stamping market is a testament to their quality and reliability.
Why does The Workshop Press Company choose to sell LARA metal coil feeding systems? It is because Lara Spain has a proven record of combining expertise, quality, and service while delivering the best solutions for our customers’ metal forming requirements. Their team comprises of seasoned engineers that understand the unique challenges of the metal forming industry and they dedicated to providing the most effective solutions.
Lara’s products are crafted from the highest quality materials and components, and they undergo rigorous testing to ensure they meet or exceed our customers’ rigorous expectations. Lara’s commitment doesn’t end with product delivery because they offer a comprehensive range of services, including engineering, project management, and after-sales support, to help you maximize the value of your metal processing equipment.
The Workshop Press Company offers coil feeding systems from Lara Spain because they are reliable, high-quality metal forming machinery. Contact us today to learn more about our products and services.
