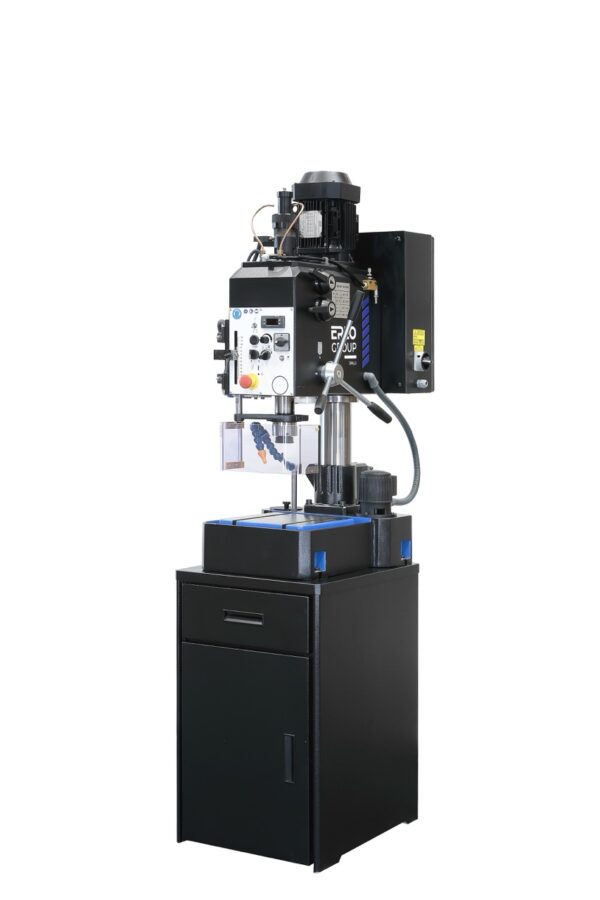

SHE Series from ERLO Benchtop Gear Driven Auto-Feed Pillar Drill
Product Code: SHE-SERIES-ERLOThe SHE Series Bench Type Tapping Machines are engineered for precision and durability, making them the perfect solution for heavy-duty tapping tasks in industrial environments. With automatic tapping feed and a robust geared drive, these machines ensure consistent performance and reliability. The fixed table with a displaceable and rotating headstock offers flexibility and ease of operation. Designed to meet CE norms, the SHE Series is equipped with advanced safety features and offers seamless integration into any production line.
Please contact for prices
- Description
- Additional Info
The SHE Series Bench Type Tapping Machines stand out in the market due to their superior build quality and reliable performance. These machines feature an automatic tapping feed and a geared drive, ensuring precise and consistent tapping operations. The fixed table design, combined with a displaceable and rotating headstock, provides operators with the versatility needed for various tapping applications. Safety is paramount in the SHE Series, with comprehensive CE norm compliance and integrated electrical equipment in a separate cabinet. Whether for small batches or continuous production, the SHE Series machines are designed to handle demanding tapping tasks with ease.
Bench Top Tapping Machines SH-Series
| Specification | SHE.30 | SHEA.30 |
|---|---|---|
| Tapping Capacity: | M25 | M25 |
| Transmission: | Gear | Gear |
| Speeds (8) (w/o variator) (rpm): | 65 to 3060 rpm. | 65 to 3060 rpm |
| Drilling Feed: | Manual | Automatic |
| Range of Feeds (2): | – | 0 to 10, 0 to 20 |
| Motor (hp): | 2 | 2 |
| Taper: | MT3 | MT3 |
| Maximum Tapping Depth (mm): | 90 | 90 |
| Distance spindle-column (mm): | 250 | 250 |
| Spindle to Table (Min/Max mm): | 155 / 485 | 155 / 485 |
| Spindle to Table (w/coolant)(Min/Max mm): | 225 / 555 | 225 / 555 |
| Column (Ø mm): | 100 | 100 |
| Table (mm): | 270 x 270 | 270 x 270 |
| Base (w/coolant) (mm): | 316 x 288 | 316 x 288 |
| CE Certified: | Yes | Yes |
| Weight Net / Gross (kg): | 290 / 340 | 290 / 340 |
| Shipping Dimensions (mm): | 860 x 640 x 1350 | 860 x 640 x 1350 |
Features & Standard Equipment
- Table & Base with DIN-650 T-Slots
- Adjustable depth
- Lighting equipment
- Tool ejector
- Belt cover with stop micro
- 1 lead screw included, pitch to be determined
- Tapping cycle selection (1 cycle / continuous cycle)
- Automatic or manual tapping selection
- Adjustable ends and micros, for depth, turning and stop
- Braking device for variator
- Emergency push button
- Main switch
- Turning sense selector
- Electrical equipment at low voltage
- Electrical equipment in a separate cabinet
- Drill guard with micro-switch
- CE Certified
Industries Using and Their Uses
- Automotive Industry: Precision tapping and drilling of metal components.
- Aerospace: Tapping and drilling in the production of high-precision aircraft parts.
- Metal Fabrication: Ideal for drilling and tapping metal sheets, plates, and components.
- Manufacturing: Suitable for mass production of tapped and drilled components.
- Tooling and Mold Making: Essential for creating precise threaded holes in tools and molds.
Optional Accessories
- Frontal wheel for fine sensitive feed (V – 10020)
- Depth digital reader (LBC – 10022)
- Lead screw, special pitch (HGP-S – 10075)
- Lead screw, standard pitch (HGP – 10080)
- Base cabinet with door and shelves (PKB – 10082)
- Base cabinet (only for models with intermediate table) (PKC – 10084)
- Fixed intermediate table (MIF – 10087)
- Rotating intermediate table (MIG – 10088)
- Cycles counter (for machines with hidroblock) (CC – 10085)
- Column supplement 200 mm. (SC – 10110)
- Coolant equipment-sr (ERB – 91118)
