VH04 Series Multi-Spindle Drill Heads
Product Code: VH042 / VH043L / VH043 / VH044The VH04 Series includes compact multi-spindle drill heads designed for precision parallel or radial drilling in serial production environments. Available in 2-, 3-, or 4-spindle versions, these units are ideal for small part fabrication, fixture-mounted setups, and CNC drilling automation.
Please contact for prices
- Description
- Additional Info
Designed for efficiency and accuracy, VH04 Series drill heads feature synchronous gear-driven operation, lightweight bodies, and tight spindle spacing for dense drilling patterns. With a maximum speed of 4,000 RPM and 1:1 gear ratio, each head provides reliable performance in steel, cast iron, and aluminum drilling operations.
Each unit accepts ER8 tools up to Ø 5 mm and is suited for mounting to custom fixtures, gantry systems, or drill stands in automated production setups. Multiple configurations are available to accommodate both linear and radial hole arrangements.

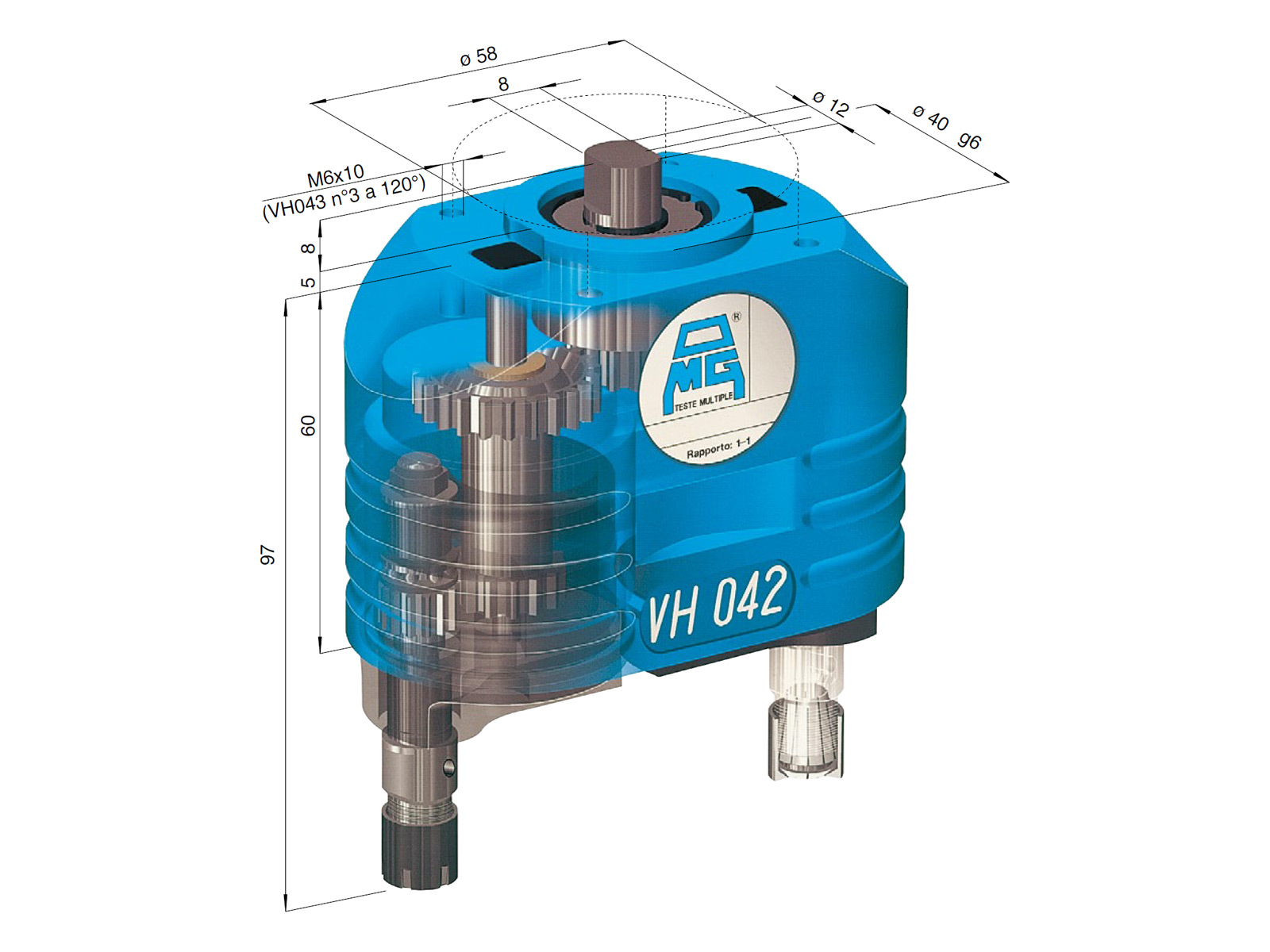

VH042 L
VH043 L
Technical Specifications – VH042 L
- Item Code: VH 042 P
- Spindle Type: ER 8 – max Ø 5 mm
- Number of Spindles: 2
- Working Range – Center Distances [mm]: 12 + 12
- Maximum Center Distance [mm]: 72
- Drilling Capacity (Steel Rm 500 N/mm²): Ø 4 mm
- Drilling Capacity (Cast Iron GG25): Ø 5 mm
- Tapping Capacity: M3
- Gear Ratio: 1:1
- Maximum Speed [RPM]: 4,000
- Weight [kg]: 0.95
Technical Specifications – VH043 L
- Item Code: VH 043 LP
- Spindle Type: ER 8 – max Ø 5 mm
- Number of Spindles: 3
- Working Range – Center Distances [mm]: 12 + 12
- Maximum Center Distance [mm]: 42 + 42
- Drilling Capacity (Steel Rm 500 N/mm²): Ø 4 mm
- Drilling Capacity (Cast Iron GG25): Ø 5 mm
- Tapping Capacity: M3
- Gear Ratio: 1:1
- Maximum Speed [RPM]: 4,000
- Weight [kg]: 1.05
VH043
VH044
Technical Specifications – VH043
- Item Code: VH 043 P
- Spindle Type: ER 8 – max Ø 5 mm
- Number of Spindles: 3
- Working Range – Center Distances [mm]: Ø 18.5
- Maximum Center Distance [mm]: Ø 78.5
- Drilling Capacity (Steel Rm 500 N/mm²): Ø 4 mm
- Drilling Capacity (Cast Iron GG25): Ø 5 mm
- Tapping Capacity: M3
- Gear Ratio: 1:1
- Maximum Speed [RPM]: 4,000
- Weight [kg]: 1.4
Technical Specifications – VH044
- Item Code: VH 044 P
- Spindle Type: ER 8 – max Ø 5 mm
- Number of Spindles: 4
- Working Range – Center Distances [mm]: Ø 29.5
- Maximum Center Distance [mm]: Ø 96
- Drilling Capacity (Steel Rm 500 N/mm²): Ø 4 mm
- Drilling Capacity (Cast Iron GG25): Ø 5 mm
- Tapping Capacity: M3
- Gear Ratio: 1:1
- Maximum Speed [RPM]: 4,000
- Weight [kg]: 1.9
| Model | Spindle Count |
Center Distance (Min-Max) |
Drilling Capacity |
Tapping Capacity |
Max RPM |
Weight |
|---|---|---|---|---|---|---|
| VH 042 | 2 | 12 mm – 72 mm | 4 mm | M3 | 4,000 | 0.95 kg |
| VH 043 L | 3 | 12 mm + 12 mm 42 mm + 42 mm |
4 mm | M3 | 4,000 | 1.05 kg |
| VH 043 | 3 | 0 mm – 785 mm | 4 mm | M3 | 4,000 | 1.4 kg |
| VH 044 | 4 | 0 mm – 895 mm | 4 mm | M3 | 4,000 | 1.9 kg |
| VH 062 | 2 | 17 mm – 93 mm | 6 mm | M5 | 4,000 | 1.65 kg |
| VH 063 L | 3 | 175 mm + 175 mm 555 mm + 555 mm |
6 mm | M5 | 4,000 | 1.95 kg |
| VH 063 | 3 | 0 mm – 103 mm | 6 mm | M5 | 4,000 | 2.3 kg |
| VH 064 | 4 | 0 mm – 117 mm | 6 mm | M5 | 4,000 | 3.1 kg |
| VH 082 | 2 | 24 mm – 108 mm | 8 mm | M6 | 4,000 | 2.2 kg |
| VH 083 L | 3 | 24 mm + 24 mm 66 mm + 66 mm |
8 mm | M6 | 4,000 | 2.9 kg |
| VH 083 | 3 | 0 mm – 120 mm | 8 mm | M6 | 4,000 | 3.4 kg |
| VH 084 | 4 | 0 mm – 137 mm | 8 mm | M6 | 4,000 | 4.6 kg |
| VH 102 | 2 | 28 mm – 120 mm | 10 mm | M8 | 3,500 | 3.5 kg |
| VH 103 L | 3 | 28 mm + 28 mm 74 mm + 74 mm |
10 mm | M8 | 3,500 | 4.9 kg |
| VH 103 | 3 | 0 mm – 132 mm | 10 mm | M8 | 3,500 | 4.9 kg |
| VH 104 | 4 | 0 mm – 152 mm | 10 mm | M8 | 3,500 | 7.2 kg |
| VH 132 | 2 | 35 mm – 151 mm | 13 mm | M10 | 3,000 | 5.3 kg |
| VH 133 L | 3 | 35 mm + 35 mm 93 mm + 93 mm |
13 mm | M10 | 3,000 | 7.2 kg |
| VH 133 | 3 | 0 mm – 167 mm | 13 mm | M10 | 3,000 | 7.7 kg |
| VH 134 | 4 | 0 mm – 191 mm | 13 mm | M10 | 3,000 | 10.8 kg |
| VH 181 | 2 | 41 mm – 173 mm | 18 mm | M14 | 2,500 | 8.3 kg |
| VH 182 | 2 | 41 mm – 173 mm | 18 mm | M14 | 2,500 | 10.75 kg |
| VH 183 L | 3 | 41 mm + 41 mm 107 mm + 107 mm |
18 mm | M14 | 2,500 | 12 kg |
| VH 183 | 3 | 0 mm – 191 mm | 18 mm | M14 | 2,500 | 15.75 kg |
| VH 184 | 4 | 0 mm – 218 mm | 18 mm | M14 | 2,500 | 19.75 kg |
| VH 201 | 2 | 45 mm – 184 mm | 20 mm | M16 | 2,500 | 9.2 kg |
| VH 202 | 2 | 45 mm – 184 mm | 20 mm | M16 | 2,500 | 12.3 kg |
| VH 203 L | 3 | 45 mm + 45 mm 110 mm + 110 mm |
20 mm | M16 | 2,500 | 13.8 kg |
| VH 203 | 3 | 0 mm – 206 mm | 20 mm | M16 | 2,500 | 17.3 kg |
| VH 204 | 4 | 0 mm – 229 mm | 20 mm | M16 | 2,500 | 21.3 kg |
| VH 251 | 2 | 50 mm – 208 mm | 25 mm | M20 | 2,000 | 10.7 kg |
| VH 252 | 2 | 50 mm – 208 mm | 25 mm | M20 | 2,000 | 13.7 kg |
| VH 253 L | 3 | 50 mm + 50 mm 110 mm + 110 mm |
25 mm | M20 | 2,000 | 15.7 kg |
| VH 253 | 3 | 0 mm – 229 mm | 25 mm | M20 | 2,000 | 19.7 kg |
| VH 254 | 4 | 0 mm – 253 mm | 25 mm | M20 | 2,000 | 23.7 kg |
How These Devices Attach to the Drill Press
The VH series heads are designed to be compatible with standard pillar drills using several standardized attachment methods to ensure secure and efficient operation. The attachment mechanisms follow DIN standards, which dictate the type of tooling interfaces that can be used. Below is an explanation of the DIN standards that are applicable and how they affect the attachment of the device to the drill press:
Installation and Setup
The VH series heads are designed for quick and easy installation on standard drill presses.
- Quick Installation: Tooling interfaces like collet chucks and drill sleeves allow for rapid installation of the VH series heads. Operators can swiftly change out heads as needed, enabling different operations without significant delays.
- Easy Setup: Once the appropriate attachment method (sleeve, collet chuck, or steep taper) is selected, aligning and securing the VH series head is straightforward. This ensures repeatability in positioning and operational accuracy.
Precision-engineered multi-spindle drill heads with up to 4 ER8 spindles for compact, high-speed parallel and radial drilling.
