MRM 2050 Series Plate Rolls • 2050 mm Working Length • 130 to 220 mm Roll Diameter • 3 to 7 mm Capacity
Product Code: MRM-2050-XXXExperience the high precision and efficiency of the MRM 2050 Series Plate Rollers. Designed for superior performance in metal bending, these machines support mild steel capacities ranging from 4.0 mm to 8.0 mm. Ideal for applications in aluminum, air conditioning channels, advertising panels, and sheet metal covers, the MRM 2050 series ensures exceptional productivity and ease of use.
Please contact for prices
- Description
- Additional Info

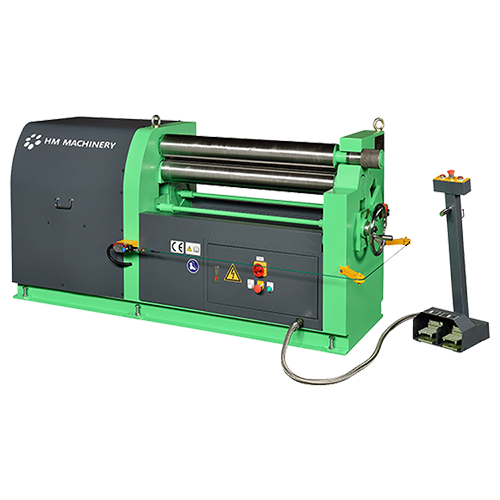

The MRM 2050 Series Plate Rollers are constructed with solid steel gable-ends and a clean, modern design. These machines accommodate sheet sizes up to 2050 mm in width and up to 8.0 mm in thickness for mild steel. The independently mounted three-roll design enables high productivity with easy roll adjustments. Both upper and lower rolls are driven to prevent material marking through slipping, and the high-polish finish protects pre-finished components, making these rollers ideal for handling sensitive materials.
Key features include the easy removal of the finished tube by swinging out the top roll, motorized adjustment of the back roll, and a mobile control panel with a three-position foot pedal, including an emergency stop.
Technical Specifications
- Working Length: 2050 mm
- Mild Steel Capacity: 4.0 mm to 8.0 mm
- Prebend: 5 mm to 9 mm
- Minimum Bending Diameter: 130 mm to 220 mm
- Rolls Diameter: 130 mm to 220 mm
- Rolls Speed: 6.0 m/min to 6.5 m/min
- Motor Power: 2.00 / 0.75 kW to 4.00 / 1.5 kW
- Dimensions (L x W x H): 2650 x 760 x 1150 mm to 2950 x 850 x 1250 mm
- Weight: 1800 kg to 2800 kg
Features and Uses
- Easy removal of finished tube by swinging out the top roll
- Solid steel gable-ends with modern design
- High polished finish to prevent damage to sensitive materials
- Ideal for aluminum, air conditioning channels, advertising panels, and sheet metal covers
- Motorized adjustment of back roll with mm counter
- Mobile control panel with 3 position foot pedal and emergency stop
- Built to comply with current EC Safety Directives (CE marked
Industries Using the Machine and Their Uses
- Metal Fabrication: Sheet bending and forming
- HVAC: Air conditioning channel production
- Advertising: Panel and sign manufacturing
- Sheet Metal Covers: Precision bending for covers and enclosures
Standard Equipment
- Asymmetrical initial pinch rolls
- Upper and lower rolls driven via hardened gear system
- Standard alloy-steel rolls
- Motorized adjustment of back roll with mm counter for accurate bending
- Solid steel gable-ends
- Top roll to slip with mechanical manual drop-end
- Mobile control panel with 3 position foot pedal (including emergency stop)
- Conical Bending Device
- Precision bending through heavy-duty brake motor
- Built to comply fully with current EC Safety Directives (CE marked)
Optional Equipment
- Digital read-out for rear (back) roll
- Hardened rolls
| Specification / Model |
MRM 2050-130 | MRM 2050-150 | MRM 2050-170 | MRM 2050-190 | MRM 2050-220 |
|---|---|---|---|---|---|
| Article Number | 14110780 | 14110790 | 14110800 | 14110810 | 14110820 |
| Working Length [mm] | 2050 | 2050 | 2050 | 2050 | 2050 |
| Mild Steel Capacity [mm] | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 |
| Prebend (mm) | 5 | 6 | 7 | 8 | 9 |
| Min. Bending Diameter [mm] | 130 | 150 | 170 | 190 | 220 |
| Rolls Diameter [mm] | 130 | 150 | 170 | 190 | 220 |
| Rolls Speed [m/min] | 6.5 | 6.0 | 6.0 | 6.0 | 6.0 |
| Motor [kW] | 2.00 / 0.75 | 3.00 / 1.1 | 3.75 / 1.1 | 4.00 / 1.5 | 4.00 / 1.5 |
| L x W x H [mm]: |
2650 x 760 x 1150 | 2750 x 780 x 1180 | 2850 x 800 x 1200 | 2950 x 850 x 1250 | 3050 x 900 x 1300 |
| Weight [kg] | 1800 | 2000 | 2200 | 2400 | 2600 |
High-precision MRM 2050 Series Plate Rollers for accurate metal bending, suitable for mild steel and aluminum. Available in multiple capacities.
