Multi-Spindle Drill Head – Made to Order (Pillar Drill Press Attachment)
Product Code: VH042 / VH043L / VH043 / VH044Custom-built multi-spindle drilling head for pillar drill presses
Configured to your hole pattern, spindle count, and pitch circle
Delivers simultaneous multi-hole drilling to cut cycle time and improve positional accuracy

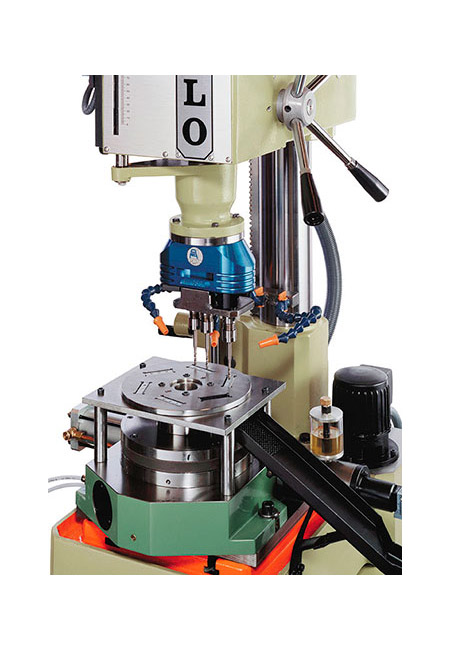

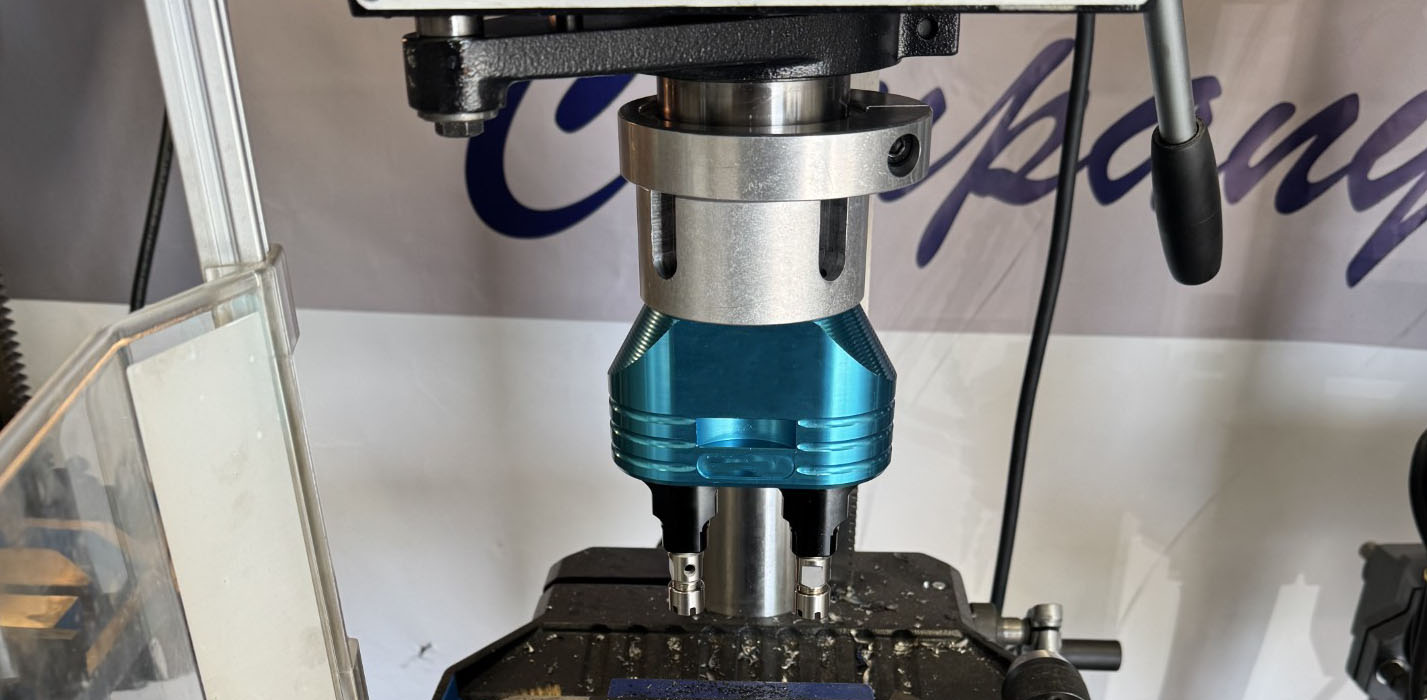

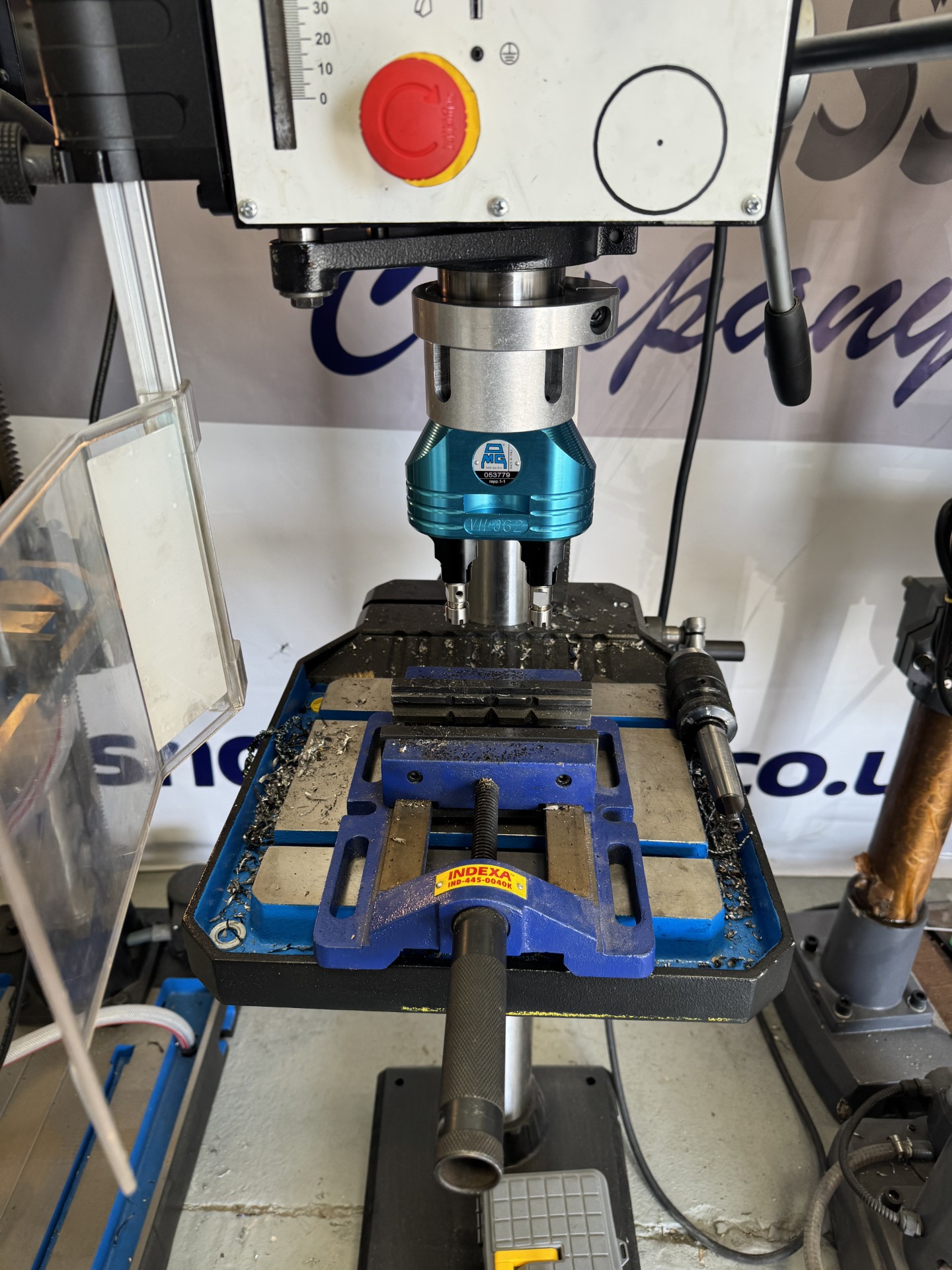

Compatible with most pillar drills via a custom adaptor,
Please contact for prices
- Description
- Additional Info
Designed for efficiency and accuracy, VH04 Series drill heads feature synchronous gear-driven operation, lightweight bodies, and tight spindle spacing for dense drilling patterns. With a maximum speed of 4,000 RPM and 1:1 gear ratio, each head provides reliable performance in steel, cast iron, and aluminum drilling operations.
Each unit accepts ER8 tools up to Ø 5 mm and is suited for mounting to custom fixtures, gantry systems, or drill stands in automated production setups. Multiple configurations are available to accommodate both linear and radial hole arrangements.
Technical Specifications
- Configuration: Built to order (linear / radial / square / custom)
- Number of spindles: 2–16+ (to specification)
- Centre-to-centre spacing (pitch): as specified (typ. 20–150 mm)

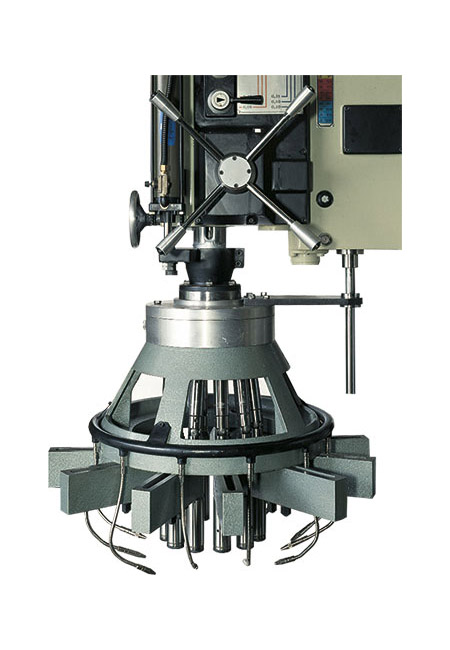

- Pitch circle diameter (PCD): to drawing (typ. 80–450 mm)
- Max drilling Ø per spindle (MS): to process (guide: Ø4–12 mm)
- Spindle outputs: collet or chuck (e.g., ER, drill chuck taper)
- Machine interface: custom adaptor to your quill/spindle
- Transmission: synchronised gear train, equal speed (unless specified)
- Recommended speed/torque: per material & tool size
- Guarding: optional custom guarding to suit installation
- Supply: Made to order; exact specs confirmed at approval
Features & Uses
- Simultaneous multi-hole drilling for major cycle-time reduction
- Precision spacing of holes; improved positional repeatability

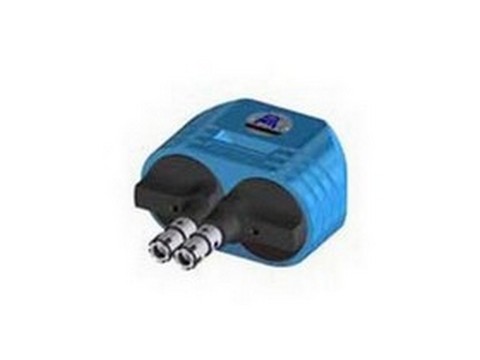

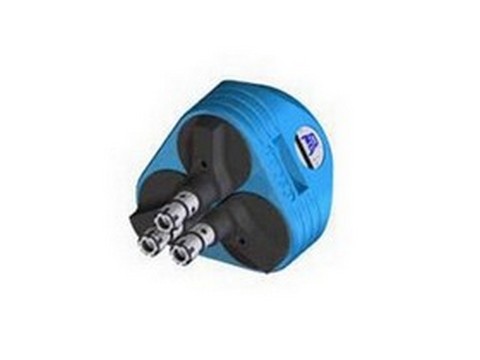

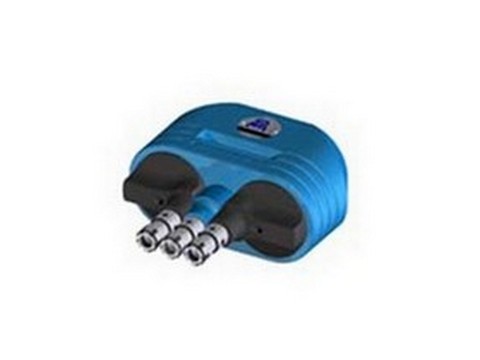

- Layout flexibility: linear, radial/PCD, square/rectangular, triangular
- Adaptors & tooling supplied to match your drill press and cutters
- Serviceable gear train and bearings for industrial duty
- Process-matched speeds and feeds specified for your application
- Optional setup, commissioning, and operator training
- Optional guarding and interlocks for PUWER compliance (UK)
Industries Using & Their Uses
- Fabrication & Metalworking: plates, brackets, channel/box section multi-hole patterns
- Automotive / Tier suppliers: fixture plates, sub-assemblies, repetitive hole groups
- Electrical enclosures: gland/fastener patterns on panels and doors
- Furniture & Fixtures: jigs, hinge/fastener arrays
- General Engineering: templates, repetitive drilling on production jigs
Made to order multi-spindle head for pillar drills
Specify spindle count, spacing, and layout (linear, radial, square, custom)
For precision simultaneous drilling in production and assembly
