Belt grinder for aluminium
belt grinder angle display

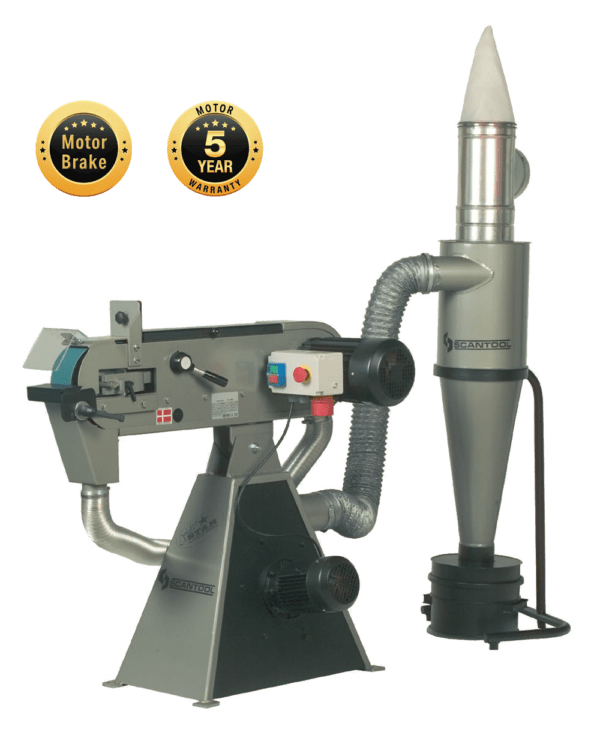

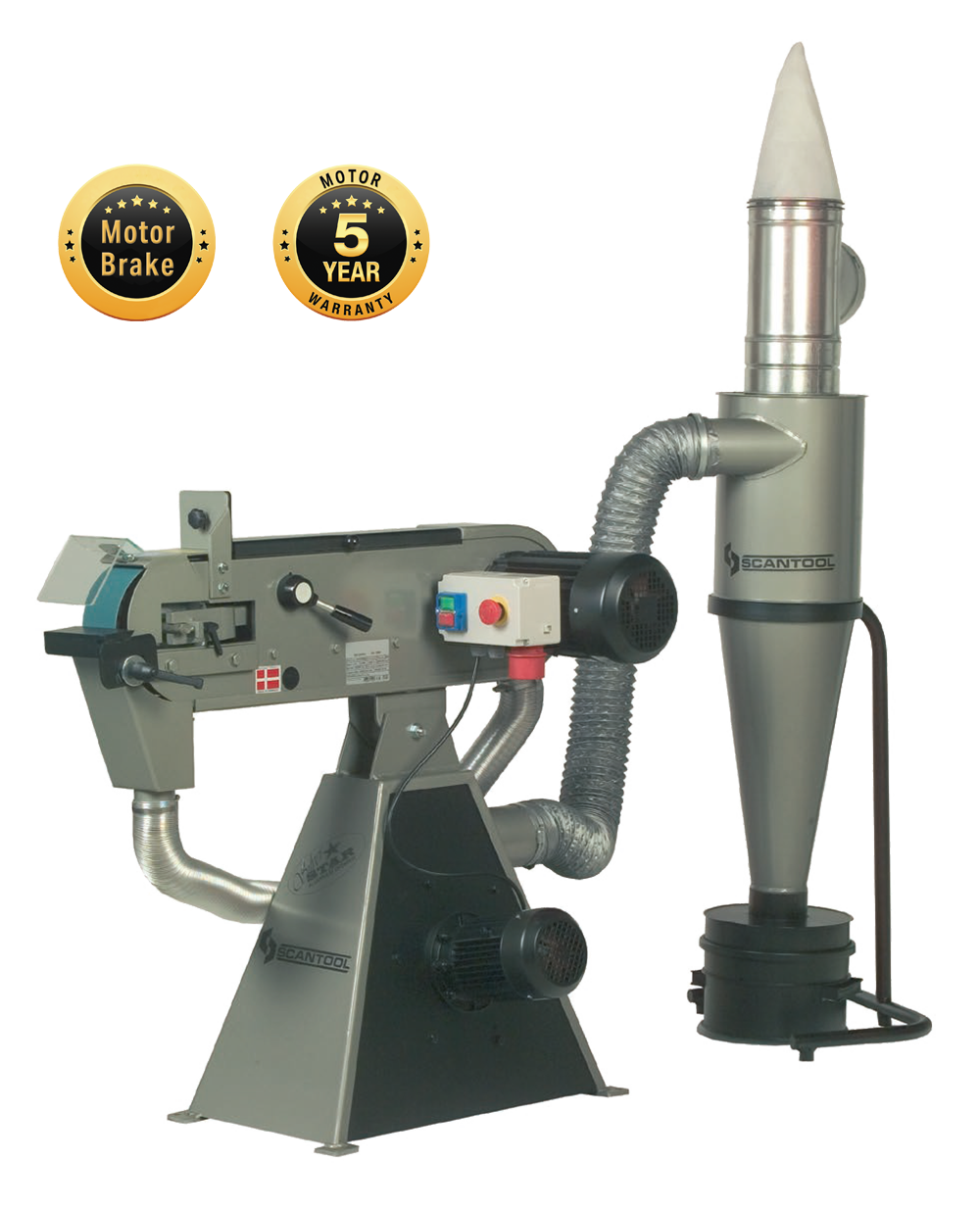

Scantool 75X Silverstar Non-Spark Industrial Belt Grinder

SKU: 439232230 Categories: , Tags: , , , , , , , , , , , ,

Please contact for prices

The SCANTOOL 75X SILVERSTAR Belt Grinder is the first in the world specifically designed for grinding aluminum and other non-spark metals. Utilizing the highest quality raw materials, this grinder ensures maximum safety by preventing any possibility of explosion due to flammable aluminum dust. Its unique construction ensures that the grinding belt will never come into contact with steel parts, even in the event of belt breakage. Featuring a powerful built-in exhaust system with a cyclone, the SCANTOOL 75X SILVERSTAR efficiently extracts aluminum dust into a dedicated black metal container. This Danish-made, CE Certified grinder is built for superior performance and safety in industrial applications.

Request Quote

    Download Specification Sheet

    The SCANTOOL 75X SILVERSTAR Belt Grinder is crafted for exceptional performance and safety in industrial settings. Operating at 3000 RPM with a robust 4.1 HP motor on a 3-Phase, 400V, 50Hz power supply, this grinder is ideal for grinding aluminum and other non-spark metals. It includes a 200 x 75 x 20 mm contact wheel, a 75 x 2000 mm grinder belt, and a 470 mm grinding table. The integrated exhaust system with a cyclone ensures efficient dust extraction, maintaining a clean and safe work environment. The grinder’s design guarantees that the grinding belt will not contact steel parts, preventing potential hazards. The SCANTOOL 75X SILVERSTAR is pedestal mounted for stability and ease of use, making it a valuable asset in any industrial setting. CE Certified and EU Built for added assurance of quality and safety.

    Specifications

    • RPM: 3000
    • Voltage: 3-Phase, 400V, 50Hz
    • Motor Power: 4.1 HP
    • Contact Wheel Size: 200 x 75 x 20 mm
    • Grinder Belt Size: 75 x 2000 mm
    • Grinding Table Size: 470 mm
    • Exhaust Capacity: 630 m³/h
    • Belt Speed: 30 m/sec
    • Number of Spindle Speeds: 1
    • Pedestal Mounted: Yes
    • With Exhaust: Yes
    • Dimensions (L x W x H): 1025 x 600 x 1000 mm
    • Net Weight: 85 kg

    Features

    • Designed specifically for aluminum and non-spark metals
    • Prevents explosions from flammable aluminum dust
    • Grinding belt never contacts steel parts, ensuring safety
    • Powerful built-in exhaust system with cyclone for efficient dust extraction
    • Danish top-quality construction
    • Separate emergency stop for enhanced safety
    • Standard motor brake for secure operation
    • Simple and practical operation
    • Easy to adjust settings
    • Quick belt change system without tools
    • CE Certified for safety and compliance
    • EU Built for superior craftsmanship

    Industries and Uses

    • Aluminum Fabrication: Safe grinding and finishing of aluminum components
    • Aerospace: Precision grinding of aircraft aluminum parts
    • Metal Art: Crafting non-spark metal sculptures and art pieces
    • Food Processing Equipment: Maintenance and fabrication of aluminum machinery
    • Chemical Processing: Safe grinding of non-reactive metals
    • Electronics Manufacturing: Processing of aluminum parts and enclosures
    • Marine Industry: Grinding and finishing of aluminum boat parts

    Unique Features of the SCANTOOL 75X SILVERSTAR Belt Grinder

    1. Specialized for Aluminum and Non-Spark Metals: The SCANTOOL 75X SILVERSTAR is uniquely designed to handle aluminum and other non-spark metals, ensuring safe operation in environments where flammable aluminum dust is present.

    2. Explosion Prevention: Its special construction guarantees that no explosion can occur due to flammable aluminum dust. This is achieved by ensuring the grinding belt will never come into contact with steel parts, even if the belt breaks due to overload or wear and tear.

    3. Built-In Double Exhaust System with Cyclone: The grinder features a powerful built-in exhaust system with a cyclone, which efficiently extracts aluminum dust into a dedicated black metal container, maintaining a clean and safe work environment.

    4. Highest Quality Raw Materials: SCANTOOL has selected the best raw materials to produce this aluminum grinder, ensuring durability and top performance.

    5. CE Certified and EU Built: This grinder is CE Certified, meeting rigorous safety standards, and is EU Built, ensuring superior craftsmanship and quality.

    Available Models in the Scantool 75 Series

    Article No. Model Belt Size Motor Grinding Table Extraction
    430232130 Scantool 75 75 × 2000 mm 4.1 HP 605 mm No
    430232230 Scantool 75X 75 × 2000 mm 4.1 HP 605 mm Integrated extraction
    430232140 Scantool 75 75 × 2000 mm 4.8 HP 605 mm No
    430232240 Scantool 75X 75 × 2000 mm 4.8 HP 605 mm Integrated extraction
    430235140 Scantool 75 75 × 2250 mm 4.8 HP 780 mm No
    430235240 Scantool 75X 75 × 2250 mm 4.8 HP 780 mm Integrated extraction
    430236140 Scantool 75 75 × 2500 mm 4.8 HP 785 mm No
    430236240 Scantool 75X 75 × 2500 mm 4.8 HP 785 mm Integrated extraction

    Belt Grinder Frequently Asked Questions

    Find answers to common questions about belt sizes, grinding applications, abrasive belts, dust extraction, motor power, machine selection, installation and servicing.

    View Belt Grinder FAQs

    The SCANTOOL 75X SILVERSTAR Belt Grinder, designed for aluminum and non-spark metals, features a 4.1 HP motor, built-in exhaust system, and unparalleled safety. CE Certified and EU Built.
