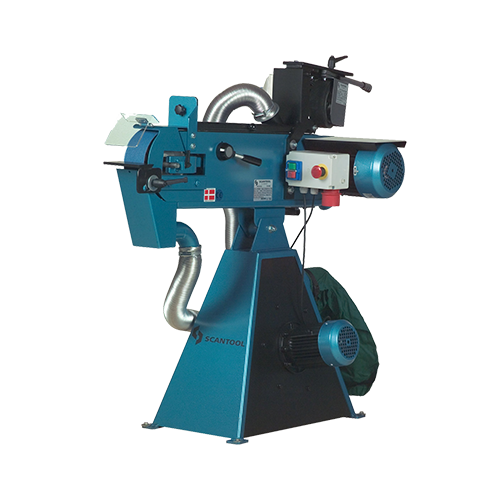

Scantool Centerless Belt Grinder and Polishing Machine 75CG

Product Code: 430232137

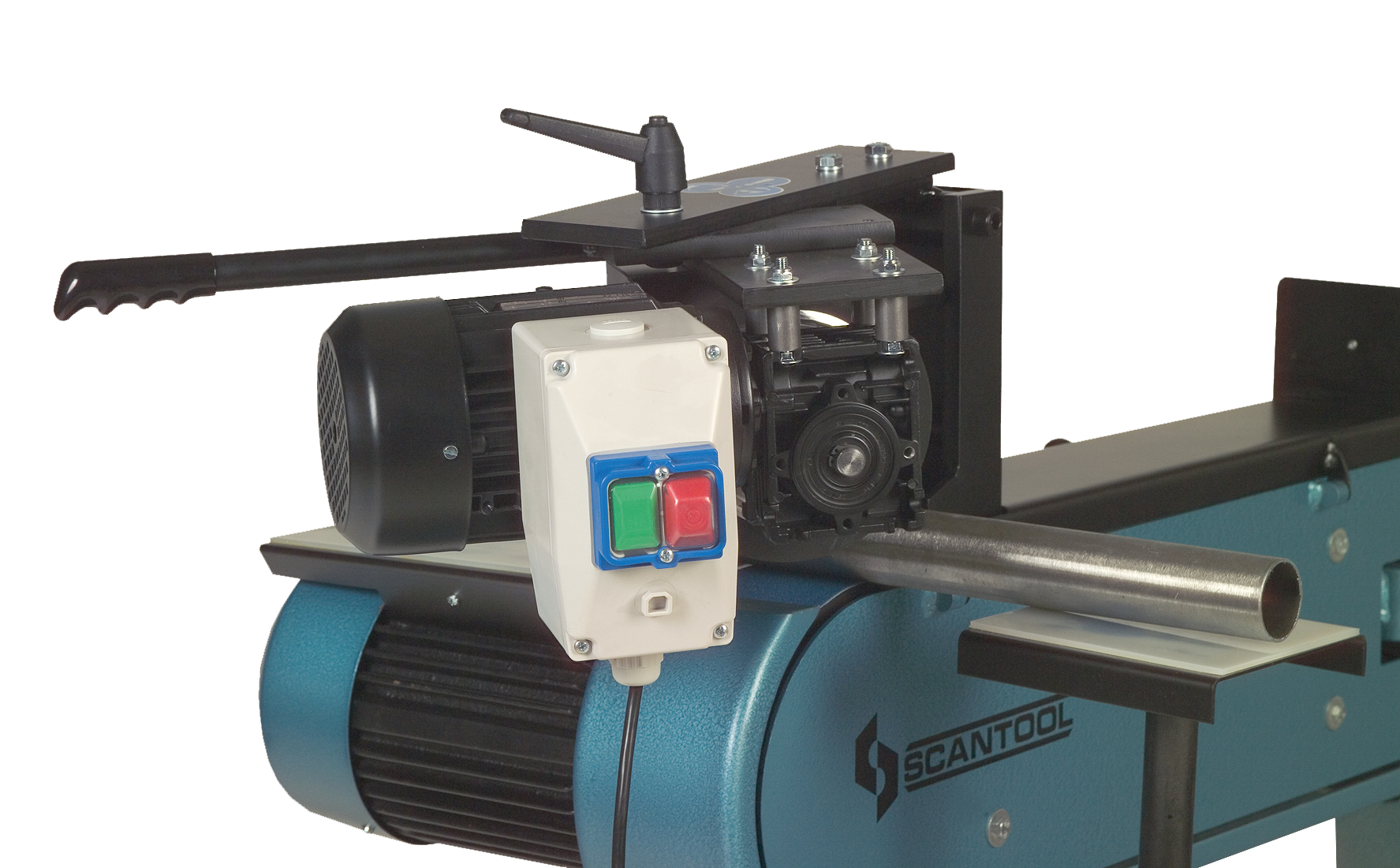

The Workshop Press Company offers Scantool Centreless Grinding and Polishing Machines are based of their Industrial Belt Grinder Technology. The top quality Scantool Industrial Belt Grinders can be supplied with an attachment which that is then mounted on front end of all belt grinders offered by Scantool that have a 75 x 2000 mm belt and there still is a large top grinding surface. The centreless grinding attachment is easy install, remove, and to operate and grinds/polishes all tubes and pipes with diameters between 6 and 120 mm. Scantool CG Centreless Grinding and Polishing Machines are unique within the metalworking machinery market because they remain a belt grinder even when the centreless grinding attachment is mounted to the machine providing dual-function providing the owner top efficiency and cost savings. To use the belt grinder as normal It is not necessary to take off the centreless attachment because both the contact wheel and the flat grinding surface on top are accessible for normal grinding and polishing when the attachment is fastened to the machine. All Scantool Centreless Industrial Belt Grinders are available with and without dust extraction. The standard version provides the ability to grind and polish tubes with diameters of between 20 and 120 mm and an optional Teflon support enables polishing and grinding of tubes and pipes with diameters between 6mm and 120mm.

    Specification Sheet Download Here
    PRODUCT VIDEO
    Scantool Centerless Belt Grinder and Polishing Machine 75CG
    PRODUCT ENQUIRY
    • Description
    • Additional Info

    Technical specifications for Scantool Centerless Belt Grinder and Polishing Machine 75CG

    • Gear NMRV030
    • Machine height (mm) 115
    • Machine length (mm) 105
    • Machine width (mm) 70
    • Motor (HP) 4,1
    • Net weight (kg) 80
    • Number of spindle speeds 1
    • Pipe dimension (ø mm) 6-120
    • Voltage 3×400/440V-50/60 Hz
    • Wheel size, Drive wheel (ø mm) 50x150x25

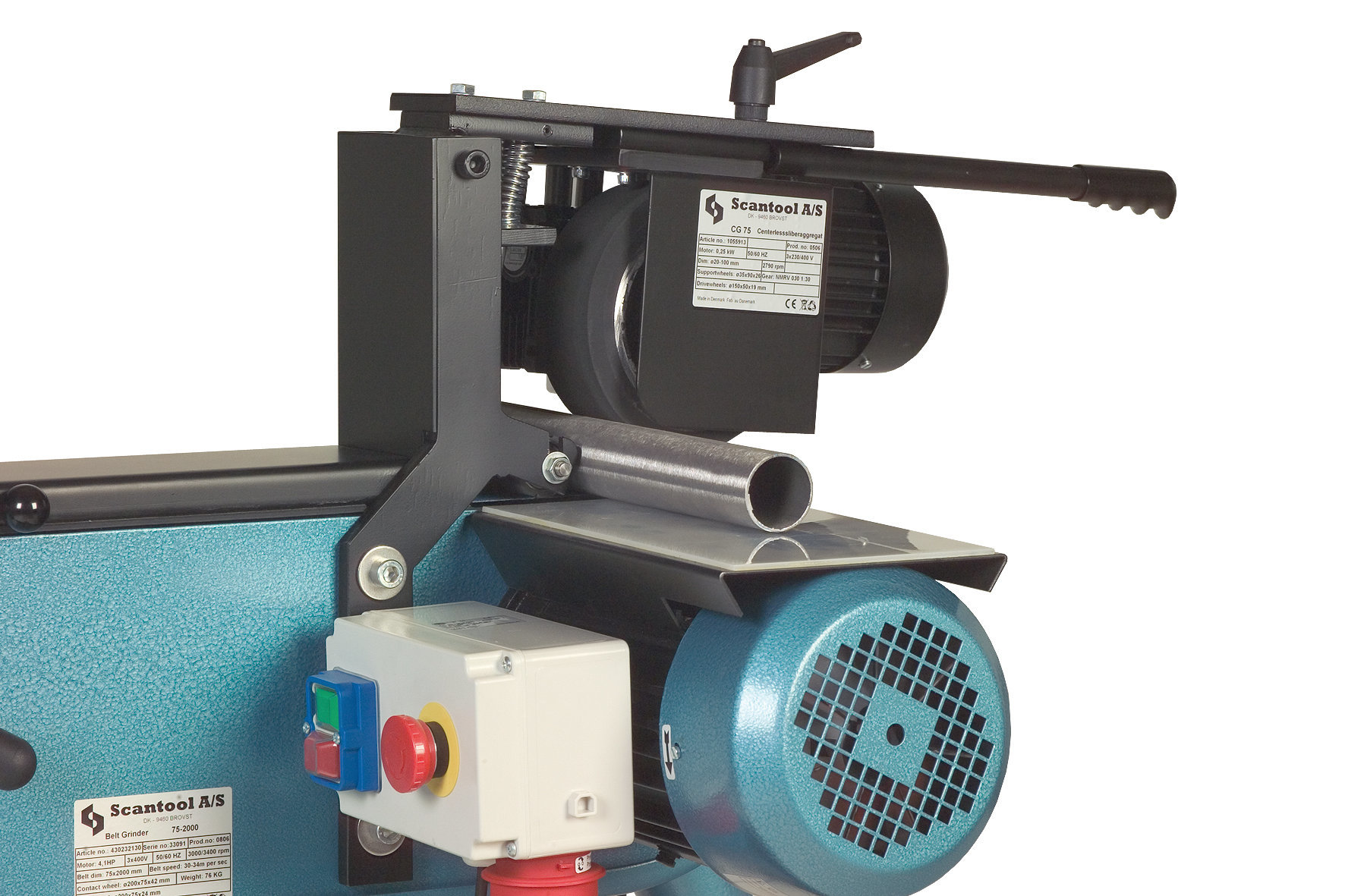

    Scantool CG centerless grinding and polishing machines are supplied with an attachment which can be mounted on all belt grinders with a 75×2000 mm belt and with a large grinding surface on top. The centerless grinding attachment is easy to operate and grinds/polishes all pipes and tubes with diameters of between 6 and 120 mm. Scantool CG centerless grinding and polishing machines are unique compared to other centerless grinders on the market because they remain a belt grinder even when the centerless grinding attachment is mounted. It is not necessary to take off the centerless attachment when using the belt grinder for normal grinding work. Both the contact wheel and the flat grinding surface on top are available for normal grinding and polishing even with the attachment on the machine. Centerless belt grinder is available with and without dust extraction. Standard version – grinding and polishing of tubes with diameters of between 20 and 120 mm and with the optional teflon support ø6 -120mm.
