Tube and Pipe Notcher - 75RB

Tube and Pipe Notcher – 75RB – Scantool

Product Code: 430232145

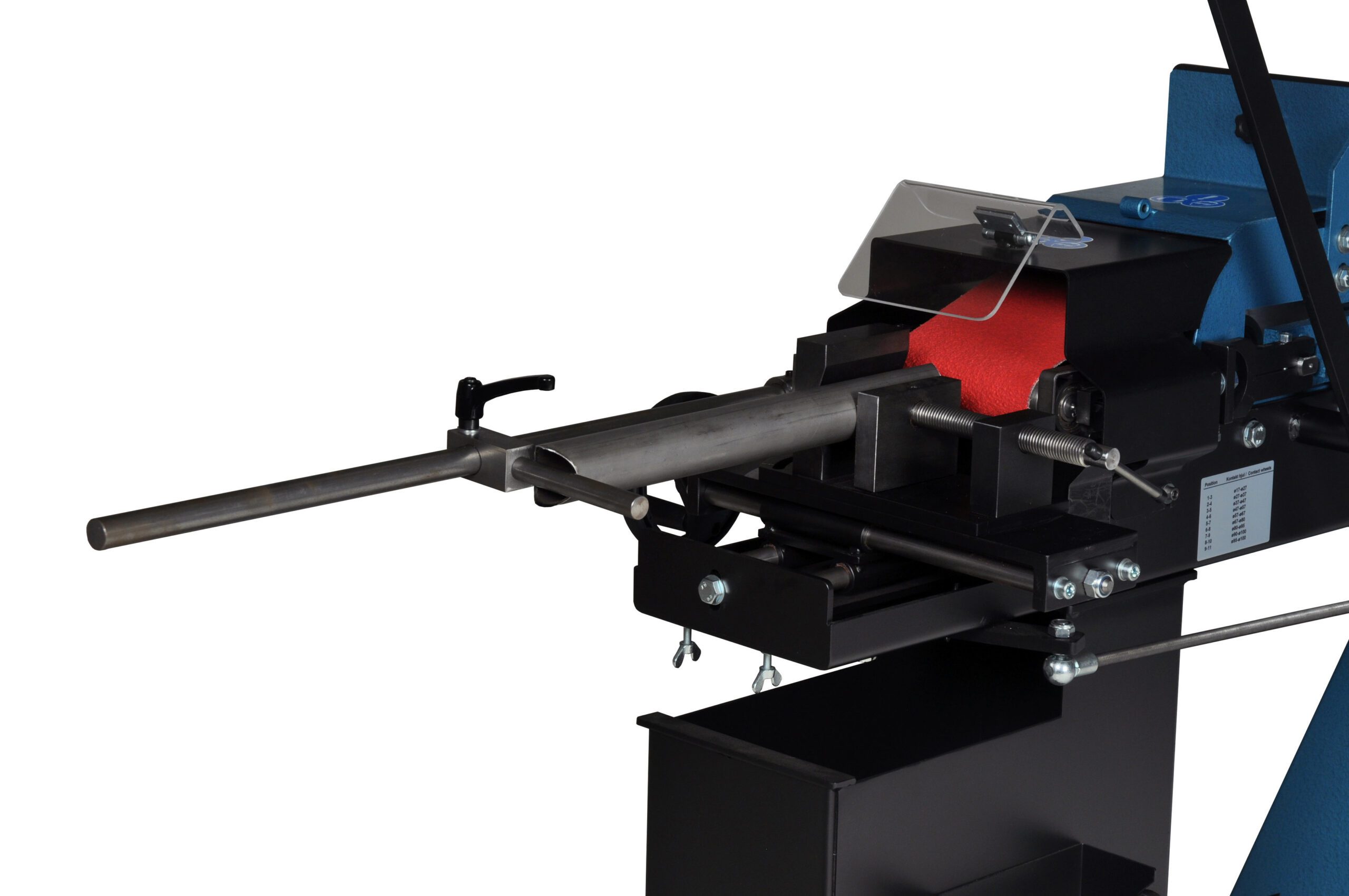

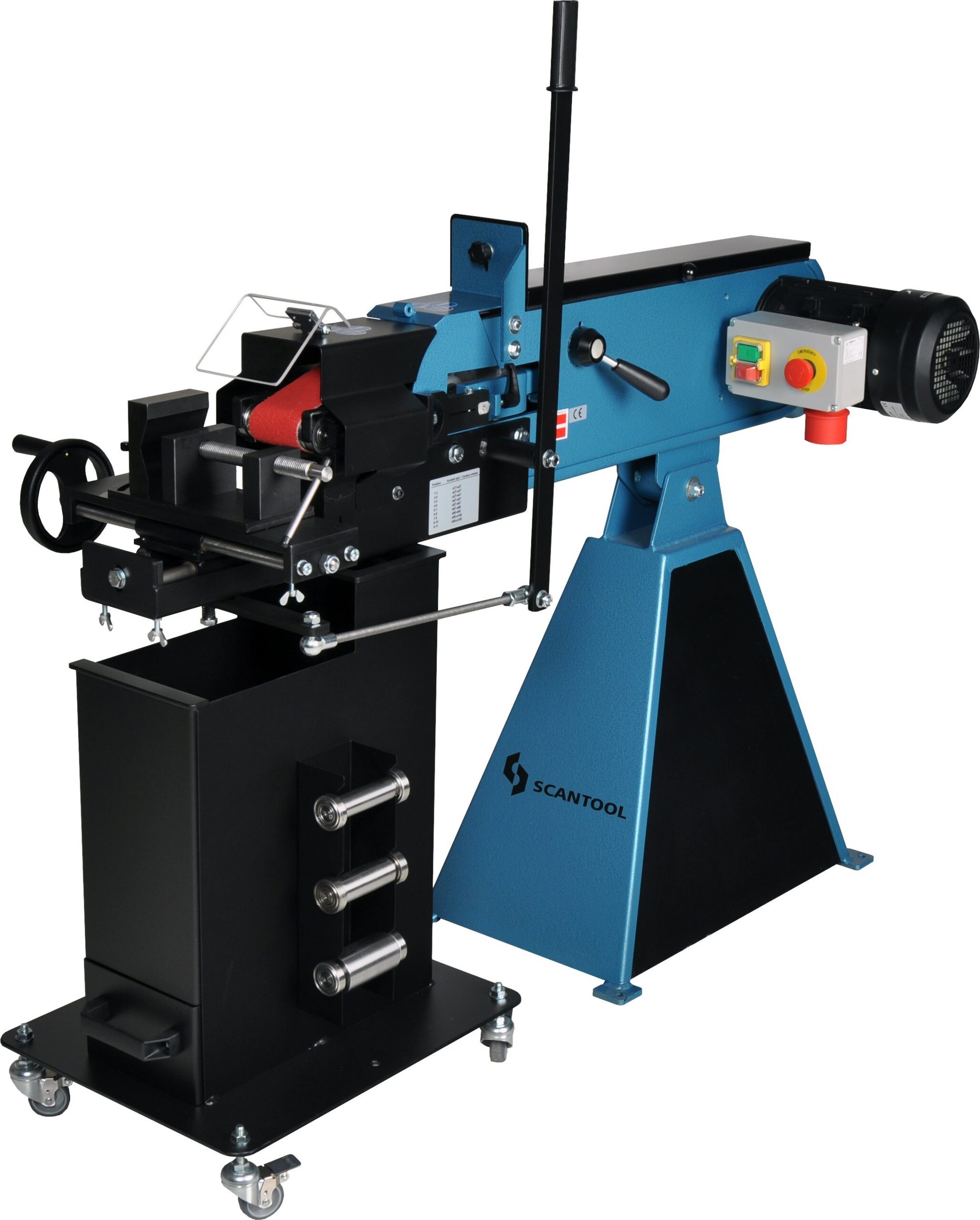

The SCANTOOL 75RB Belt Grinder with Pipe Notching Attachment is a compact and powerful industrial grinder designed for versatile applications, including pipe notching and flat surface grinding. Ideal for processing pipes of all profiles between 17 mm and 70 mm in diameter, it offers angle-adjustable notching and quick transformation into a belt sander. For added flexibility, the 75RB can be equipped with a centerless grinding attachment. Backed by SCANTOOL’s solid industrial 2 year warranty, it's an essential tool for fabrication professionals.

Please contact for prices

    Download Specification Sheet
    • Description
    • Additional Info

    The SCANTOOL 75RB offers powerful pipe notching and grinding capability in a compact, pedestal-mounted format. Supporting pipe diameters of 17 to 70 mm, this unit allows grinding at angles from 0–60°, and can convert into a general-purpose belt sander within minutes. It includes dual spindle speeds (2800/3300 RPM) and is suitable for workshop power configurations (3×400/440V). The optional centerless attachment expands its functionality, providing three grinding processes in one compact solution. SCANTOOL backs this equipment with a reliable 1-year industrial warranty, ensuring confidence and long-term performance.

    Technical Specifications

    • Pipe Diameter [mm]: 17–70
    • Included Roll [mm]: 42
    • Grinding Angle [°]: 0–60
    • Grinding Belt [mm]: 75 x 2250 / 75 x 2000
    • Grinding Table [mm]: 75 x 605
    • Machine Height [mm]: 1020
    • Machine Length [mm]: 1350
    • Machine Width [mm]: 570
    • Motor Power [HP]: 4.1
    • Net Weight [kg]: 116
    • Spindle Speeds [RPM]: 2800 / 3300
    • Saw Speed [m/min]: 30
    • Voltage: 3×400/440V – 50/60 Hz

    Key Features

    • Multi-purpose machine for pipe notching and belt grinding
    • Works with round, square, and solid pipe profiles
    • Grinds pipe angles from 0° to 60°
    • Quick conversion from notching to general grinding mode
    • Compatible with optional centerless attachment (model 75 only)

    Optional Accessories

    • Rolls for any and all Tube/Pipe diameters
    • Centerless Grinding Attachment (for 75 model)
    • Extra Belt Sets
    • Dust Extraction System
    • Angle Guides
    • Workpiece Support Stands

    Compact belt grinder that notches and grinds pipes from 17–70 mm, with centerless grinding compatibility and dual-speed operation.
