VH06 Series Multi-Spindle Drill Heads
Product Code: VH062 / VH063 / VH064The VH06 Series comprises robust multi-spindle drill heads designed for high-performance, synchronized drilling operations across industrial production environments. These drill heads feature reinforced construction, longer spindles, and support higher torque applications, making them ideal for use in transfer lines, gantries, and automated multi-station systems.
Please contact for prices
- Description
- Additional Info
Built to support larger hole diameters and increased material resistance, VH06 drill heads deliver synchronized spindle motion via 1:1 gear ratio and handle rotational speeds up to 4,000 RPM. Each head in the VH06 series is equipped with ER16 tool holders and longer spindles for improved tool accessibility and thermal performance.
These multi-spindle heads are optimized for heavy-duty machining in steel, cast iron, and aluminum, with flexible options for both linear and radial spindle arrangements. They are commonly used in combination with automatic feed units, CNC integration, and industrial fixture setups.
VH062 L
VH063 L

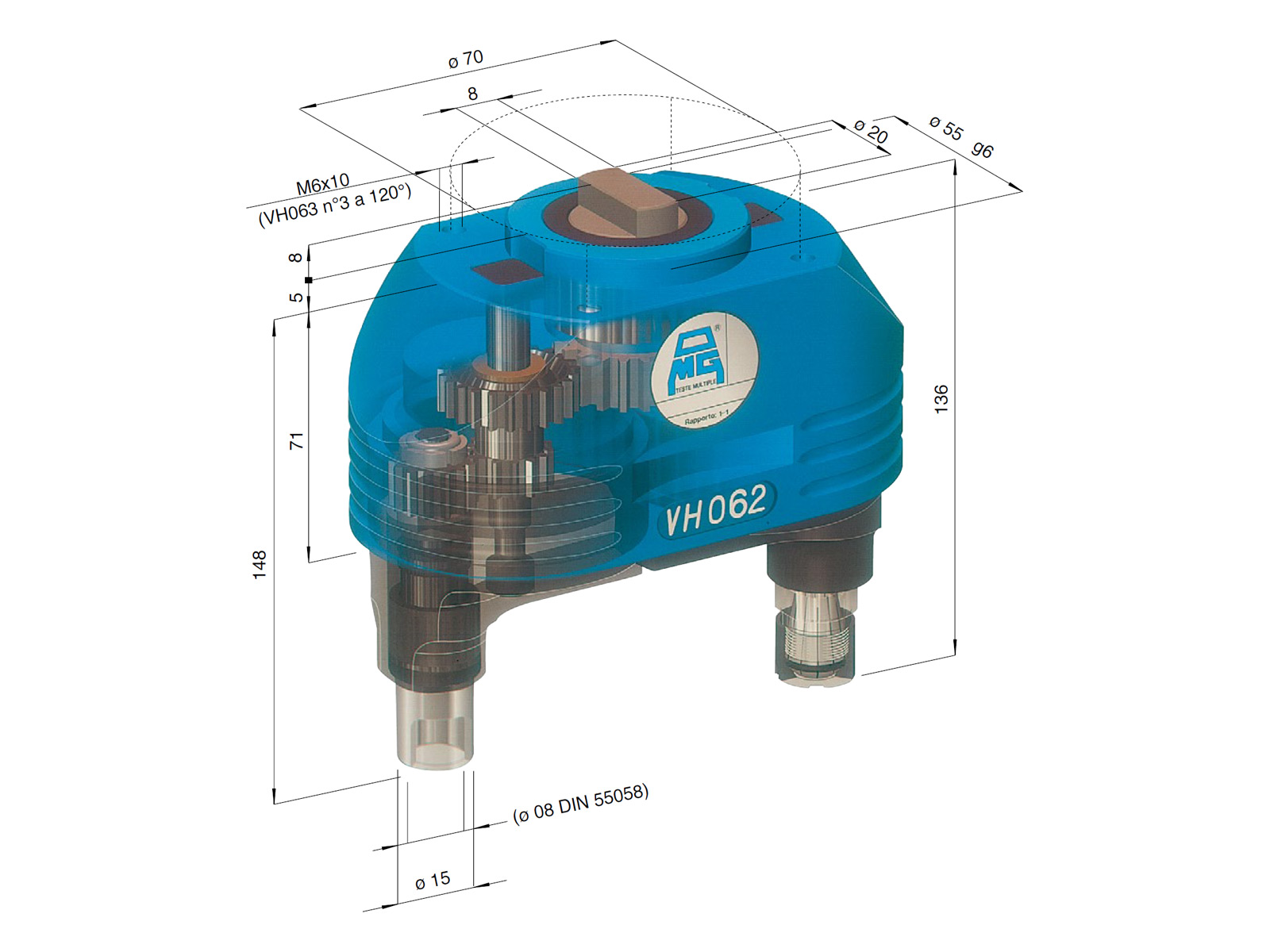

Technical Specifications – VH062
- Item Code: VH 062
- Spindle Type: ER16 – max Ø 10 mm
- Number of Spindles: 2
- Working Range – Center Distances [mm]: 19 + 19
- Maximum Center Distance [mm]: 130
- Drilling Capacity (Steel Rm 500 N/mm²): Ø 8 mm
- Drilling Capacity (Cast Iron GG25): Ø 10 mm
- Tapping Capacity: M8
- Gear Ratio: 1:1
- Maximum Speed [RPM]: 4,000
- Weight [kg]: 2.5
Technical Specifications – VH063L
- Item Code: VH 063L
- Spindle Type: ER16 – max Ø 10 mm
- Number of Spindles: 3
- Working Range – Center Distances [mm]: 19 + 19
- Maximum Center Distance [mm]: 76
- Drilling Capacity (Steel Rm 500 N/mm²): Ø 8 mm
- Drilling Capacity (Cast Iron GG25): Ø 10 mm
- Tapping Capacity: M8
- Gear Ratio: 1:1
- Maximum Speed [RPM]: 4,000
- Weight [kg]: 3.0
VH063
VH064
Technical Specifications – VH063
- Item Code: VH 063
- Spindle Type: ER16 – max Ø 10 mm
- Number of Spindles: 3
- Working Range – Center Distances [mm]: Ø 25.7
- Maximum Center Distance [mm]: Ø 108
- Drilling Capacity (Steel Rm 500 N/mm²): Ø 8 mm
- Drilling Capacity (Cast Iron GG25): Ø 10 mm
- Tapping Capacity: M8
- Gear Ratio: 1:1
- Maximum Speed [RPM]: 4,000
- Weight [kg]: 4.0
Technical Specifications – VH064
- Item Code: VH 064
- Spindle Type: ER16 – max Ø 10 mm
- Number of Spindles: 4
- Working Range – Center Distances [mm]: Ø 36.5
- Maximum Center Distance [mm]: Ø 120
- Drilling Capacity (Steel Rm 500 N/mm²): Ø 8 mm
- Drilling Capacity (Cast Iron GG25): Ø 10 mm
- Tapping Capacity: M8
- Gear Ratio: 1:1
- Maximum Speed [RPM]: 4,000
- Weight [kg]: 4.5
| Model | Spindle Count |
Center Distance (Min-Max) |
Drilling Capacity |
Tapping Capacity |
Max RPM |
Weight |
|---|---|---|---|---|---|---|
| VH 042 | 2 | 12 mm – 72 mm | 4 mm | M3 | 4,000 | 0.95 kg |
| VH 043 L | 3 | 12 mm + 12 mm 42 mm + 42 mm |
4 mm | M3 | 4,000 | 1.05 kg |
| VH 043 | 3 | 0 mm – 785 mm | 4 mm | M3 | 4,000 | 1.4 kg |
| VH 044 | 4 | 0 mm – 895 mm | 4 mm | M3 | 4,000 | 1.9 kg |
| VH 062 | 2 | 17 mm – 93 mm | 6 mm | M5 | 4,000 | 1.65 kg |
| VH 063 L | 3 | 175 mm + 175 mm 555 mm + 555 mm |
6 mm | M5 | 4,000 | 1.95 kg |
| VH 063 | 3 | 0 mm – 103 mm | 6 mm | M5 | 4,000 | 2.3 kg |
| VH 064 | 4 | 0 mm – 117 mm | 6 mm | M5 | 4,000 | 3.1 kg |
| VH 082 | 2 | 24 mm – 108 mm | 8 mm | M6 | 4,000 | 2.2 kg |
| VH 083 L | 3 | 24 mm + 24 mm 66 mm + 66 mm |
8 mm | M6 | 4,000 | 2.9 kg |
| VH 083 | 3 | 0 mm – 120 mm | 8 mm | M6 | 4,000 | 3.4 kg |
| VH 084 | 4 | 0 mm – 137 mm | 8 mm | M6 | 4,000 | 4.6 kg |
| VH 102 | 2 | 28 mm – 120 mm | 10 mm | M8 | 3,500 | 3.5 kg |
| VH 103 L | 3 | 28 mm + 28 mm 74 mm + 74 mm |
10 mm | M8 | 3,500 | 4.9 kg |
| VH 103 | 3 | 0 mm – 132 mm | 10 mm | M8 | 3,500 | 4.9 kg |
| VH 104 | 4 | 0 mm – 152 mm | 10 mm | M8 | 3,500 | 7.2 kg |
| VH 132 | 2 | 35 mm – 151 mm | 13 mm | M10 | 3,000 | 5.3 kg |
| VH 133 L | 3 | 35 mm + 35 mm 93 mm + 93 mm |
13 mm | M10 | 3,000 | 7.2 kg |
| VH 133 | 3 | 0 mm – 167 mm | 13 mm | M10 | 3,000 | 7.7 kg |
| VH 134 | 4 | 0 mm – 191 mm | 13 mm | M10 | 3,000 | 10.8 kg |
| VH 181 | 2 | 41 mm – 173 mm | 18 mm | M14 | 2,500 | 8.3 kg |
| VH 182 | 2 | 41 mm – 173 mm | 18 mm | M14 | 2,500 | 10.75 kg |
| VH 183 L | 3 | 41 mm + 41 mm 107 mm + 107 mm |
18 mm | M14 | 2,500 | 12 kg |
| VH 183 | 3 | 0 mm – 191 mm | 18 mm | M14 | 2,500 | 15.75 kg |
| VH 184 | 4 | 0 mm – 218 mm | 18 mm | M14 | 2,500 | 19.75 kg |
| VH 201 | 2 | 45 mm – 184 mm | 20 mm | M16 | 2,500 | 9.2 kg |
| VH 202 | 2 | 45 mm – 184 mm | 20 mm | M16 | 2,500 | 12.3 kg |
| VH 203 L | 3 | 45 mm + 45 mm 110 mm + 110 mm |
20 mm | M16 | 2,500 | 13.8 kg |
| VH 203 | 3 | 0 mm – 206 mm | 20 mm | M16 | 2,500 | 17.3 kg |
| VH 204 | 4 | 0 mm – 229 mm | 20 mm | M16 | 2,500 | 21.3 kg |
| VH 251 | 2 | 50 mm – 208 mm | 25 mm | M20 | 2,000 | 10.7 kg |
| VH 252 | 2 | 50 mm – 208 mm | 25 mm | M20 | 2,000 | 13.7 kg |
| VH 253 L | 3 | 50 mm + 50 mm 110 mm + 110 mm |
25 mm | M20 | 2,000 | 15.7 kg |
| VH 253 | 3 | 0 mm – 229 mm | 25 mm | M20 | 2,000 | 19.7 kg |
| VH 254 | 4 | 0 mm – 253 mm | 25 mm | M20 | 2,000 | 23.7 kg |
How These Devices Attach to the Drill Press
The VH series heads are designed to be compatible with standard pillar drills using several standardized attachment methods to ensure secure and efficient operation. The attachment mechanisms follow DIN standards, which dictate the type of tooling interfaces that can be used. Below is an explanation of the DIN standards that are applicable and how they affect the attachment of the device to the drill press:
Installation and Setup
The VH series heads are designed for quick and easy installation on standard drill presses.
- Quick Installation: Tooling interfaces like collet chucks and drill sleeves allow for rapid installation of the VH series heads. Operators can swiftly change out heads as needed, enabling different operations without significant delays.
- Easy Setup: Once the appropriate attachment method (sleeve, collet chuck, or steep taper) is selected, aligning and securing the VH series head is straightforward. This ensures repeatability in positioning and operational accuracy.
Heavy-duty 2–4 spindle drill heads with ER16 interfaces and reinforced design for high-torque, high-speed production drilling.
