VH25 Series Multi‑Spindle Drill Heads
Product Code: VH252 / VH253L / VH253 / VH254The VH25 Series delivers heavy‑duty, synchronized multi‑spindle drilling for demanding production cells. Available in 2‑, 3‑ and 4‑spindle configurations (linear or radial layouts), these compact heads achieve precise, repeatable hole patterns with a maximum drilling capacity icon of ⌀28 shown in the catalog. Typical applications include transfer lines, CNC gantries, and fixture‑mounted stations.
Please contact for prices
- Description
- Additional Info

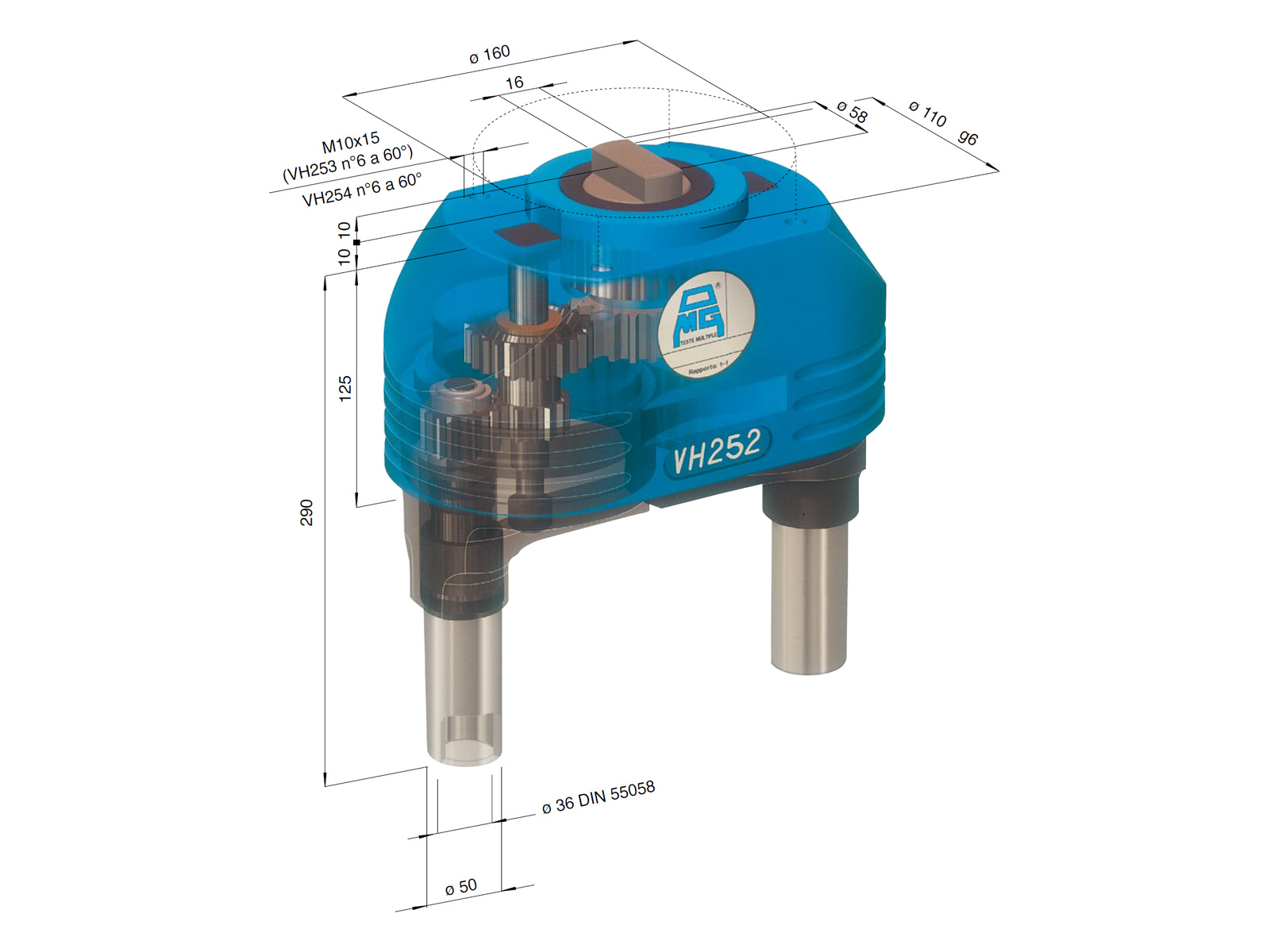

Each VH25 head uses a precision gear train for constant, equal spindle speed and accurate center‑to‑center holding. The catalog page provides dimensional references (body collar, spindle pattern drawings) and the DIN 55058 spindle interface callout (⌀36) used for tooling/adapter fitment. Model variants (VH252, VH253L, VH253, VH254) and weights are listed directly on the same page.
VH252 L
VH253 L
Technical Specifications – VH252
- Item Code: VH252
- Number of Spindles: 2
- Spindle Interface (tool side): DIN 55058 – Ø36
- Layout: Linear
- Series Drilling Capacity (catalog icon): Ø28
- Transmission: Equal‑speed synchronized gear train
- Typical Use: CNC cells, transfer lines, fixture stations
- Weight [kg]: 27
Technical Specifications – VH253L
- Item Code: VH253L
- Number of Spindles: 3
- Spindle Interface (tool side): DIN 55058 – Ø36
- Layout: Linear (L)
- Series Drilling Capacity (catalog icon): Ø28
- Transmission: Equal‑speed synchronized gear train
- Typical Use: CNC cells, transfer lines, fixture stations
- Weight [kg]: 20
VH253
VH254
Technical Specifications – VH253
- Item Code: VH253
- Number of Spindles: 3
- Spindle Interface (tool side): DIN 55058 – Ø36
- Layout: Radial
- Series Drilling Capacity (catalog icon): Ø28
- Transmission: Equal‑speed synchronized gear train
- Typical Use: CNC cells, transfer lines, fixture stations
- Weight [kg]: 38
Technical Specifications – VH254
- Item Code: VH254
- Number of Spindles: 4
- Spindle Interface (tool side): DIN 55058 – Ø36
- Layout: Radial
- Series Drilling Capacity (catalog icon): Ø28
- Transmission: Equal‑speed synchronized gear train
- Typical Use: CNC cells, transfer lines, fixture stations
- Weight [kg]: 52
| Model | Spindle Count |
Center Distance (Min-Max) |
Drilling Capacity |
Tapping Capacity |
Max RPM |
Weight |
|---|---|---|---|---|---|---|
| VH 042 | 2 | 12 mm – 72 mm | 4 mm | M3 | 4,000 | 0.95 kg |
| VH 043 L | 3 | 12 mm + 12 mm 42 mm + 42 mm |
4 mm | M3 | 4,000 | 1.05 kg |
| VH 043 | 3 | 0 mm – 785 mm | 4 mm | M3 | 4,000 | 1.4 kg |
| VH 044 | 4 | 0 mm – 895 mm | 4 mm | M3 | 4,000 | 1.9 kg |
| VH 062 | 2 | 17 mm – 93 mm | 6 mm | M5 | 4,000 | 1.65 kg |
| VH 063 L | 3 | 175 mm + 175 mm 555 mm + 555 mm |
6 mm | M5 | 4,000 | 1.95 kg |
| VH 063 | 3 | 0 mm – 103 mm | 6 mm | M5 | 4,000 | 2.3 kg |
| VH 064 | 4 | 0 mm – 117 mm | 6 mm | M5 | 4,000 | 3.1 kg |
| VH 082 | 2 | 24 mm – 108 mm | 8 mm | M6 | 4,000 | 2.2 kg |
| VH 083 L | 3 | 24 mm + 24 mm 66 mm + 66 mm |
8 mm | M6 | 4,000 | 2.9 kg |
| VH 083 | 3 | 0 mm – 120 mm | 8 mm | M6 | 4,000 | 3.4 kg |
| VH 084 | 4 | 0 mm – 137 mm | 8 mm | M6 | 4,000 | 4.6 kg |
| VH 102 | 2 | 28 mm – 120 mm | 10 mm | M8 | 3,500 | 3.5 kg |
| VH 103 L | 3 | 28 mm + 28 mm 74 mm + 74 mm |
10 mm | M8 | 3,500 | 4.9 kg |
| VH 103 | 3 | 0 mm – 132 mm | 10 mm | M8 | 3,500 | 4.9 kg |
| VH 104 | 4 | 0 mm – 152 mm | 10 mm | M8 | 3,500 | 7.2 kg |
| VH 132 | 2 | 35 mm – 151 mm | 13 mm | M10 | 3,000 | 5.3 kg |
| VH 133 L | 3 | 35 mm + 35 mm 93 mm + 93 mm |
13 mm | M10 | 3,000 | 7.2 kg |
| VH 133 | 3 | 0 mm – 167 mm | 13 mm | M10 | 3,000 | 7.7 kg |
| VH 134 | 4 | 0 mm – 191 mm | 13 mm | M10 | 3,000 | 10.8 kg |
| VH 181 | 2 | 41 mm – 173 mm | 18 mm | M14 | 2,500 | 8.3 kg |
| VH 182 | 2 | 41 mm – 173 mm | 18 mm | M14 | 2,500 | 10.75 kg |
| VH 183 L | 3 | 41 mm + 41 mm 107 mm + 107 mm |
18 mm | M14 | 2,500 | 12 kg |
| VH 183 | 3 | 0 mm – 191 mm | 18 mm | M14 | 2,500 | 15.75 kg |
| VH 184 | 4 | 0 mm – 218 mm | 18 mm | M14 | 2,500 | 19.75 kg |
| VH 201 | 2 | 45 mm – 184 mm | 20 mm | M16 | 2,500 | 9.2 kg |
| VH 202 | 2 | 45 mm – 184 mm | 20 mm | M16 | 2,500 | 12.3 kg |
| VH 203 L | 3 | 45 mm + 45 mm 110 mm + 110 mm |
20 mm | M16 | 2,500 | 13.8 kg |
| VH 203 | 3 | 0 mm – 206 mm | 20 mm | M16 | 2,500 | 17.3 kg |
| VH 204 | 4 | 0 mm – 229 mm | 20 mm | M16 | 2,500 | 21.3 kg |
| VH 251 | 2 | 50 mm – 208 mm | 25 mm | M20 | 2,000 | 10.7 kg |
| VH 252 | 2 | 50 mm – 208 mm | 25 mm | M20 | 2,000 | 13.7 kg |
| VH 253 L | 3 | 50 mm + 50 mm 110 mm + 110 mm |
25 mm | M20 | 2,000 | 15.7 kg |
| VH 253 | 3 | 0 mm – 229 mm | 25 mm | M20 | 2,000 | 19.7 kg |
| VH 254 | 4 | 0 mm – 253 mm | 25 mm | M20 | 2,000 | 23.7 kg |
How These Devices Attach to the Drill Press
The VH series heads are designed to be compatible with standard pillar drills using several standardized attachment methods to ensure secure and efficient operation. The attachment mechanisms follow DIN standards, which dictate the type of tooling interfaces that can be used. Below is an explanation of the DIN standards that are applicable and how they affect the attachment of the device to the drill press:
Installation and Setup
The VH series heads are designed for quick and easy installation on standard drill presses.
- Quick Installation: Tooling interfaces like collet chucks and drill sleeves allow for rapid installation of the VH series heads. Operators can swiftly change out heads as needed, enabling different operations without significant delays.
- Easy Setup: Once the appropriate attachment method (sleeve, collet chuck, or steep taper) is selected, aligning and securing the VH series head is straightforward. This ensures repeatability in positioning and operational accuracy.
