C Series from ERLO • Floor Standing • Manual Feed • V-Belt Drive • Drilling 18-30 mm • Tapping M14-M25 • MT3

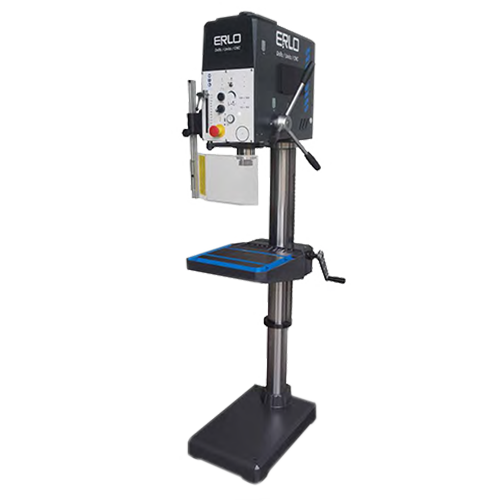

Product Code: C-SERIES-ERLOThe ERLO C.30 Column Industrial Metal Drill is a versatile and powerful drill that is ideal for a variety of industrial applications. It features a V-belt drive for smooth and precise operation, a manual feed for accurate control, and a maximum drilling capacity of 30 mm. It also has a number of safety features, such as a spindle lock and a reversing switch.
The ERLO C.30 is a sturdy and reliable drill that is built to last. It is made from high-quality materials and features a number of features that make it easy to use and maintain.
Some key benefits of the ERLO C.30 Column Drill for drilling applications are a V-belt drive for smooth and precise operation, manual feed for accurate metal drilling operatoins, a maximum drilling capacity of 30 mm, integrated safety features, a sturdy and reliable construction, ease of use, and it is very easy to maintain.
Please contact for prices
- Description
- Additional Info
| Tapping Capacity: | M14 | M18 | M25 |
| Drive: | V-Belt | V-Belt | V-Belt |
| Speed Range (10) (w/o variator) (rpm): | 245 to 4000 | 245 to 4000 | 245 to 4000 |
| Speed Range (A,B,C,D,E) (w/ variator) (rpm): | 120 to 6000 | 120 to 6000 | 120 to 6000 |
| Feed: | Manual | Manual | Manual |
| Motor(w/o variator) (hp): | 0.68 / 1.4 | 0.95 / 1.8 | 1.2 / 2 |
| Motor(w/ variator) (hp): | 1.5 | 2 | 2 |
| Spindle cone: | MT3 | MT3 | MT3 |
| Spindle stroke (mm): | 120 | 120 | 120 |
| Spindle stroke with hydroblock (mm): | 90 | 90 | 90 |
| Distance spindle-column (mm): | 250 | 250 | 250 |
| Spindle to Table (Min/Max mm): | 85 / 635 | 85 / 635 | 85 / 635 |
| Spindle to Base (Min/Max mm): | 1195 | 1195 | 1195 |
| Column (Ø mm): | 100 | 100 | 100 |
| Table with 2 T-Slots (mm): | 270 x 300 | 270 x 300 | 270 x 300 |
| Base without T-Slots and coolant (mm): | 600 x 380 | 600 x 380 | 600 x 380 |
| Base with T- slots and coolant (mm): | 665 x 400 | 665 x 400 | 665 x 400 |
| CE Certified: | Yes | Yes | Yes |
| Weight Net / Gross (kg): | 260 / 320 | 260 / 320 | 260 / 320 |
| Shipping Dimensions (mm): | 2110 x 570 x 800 | 2110 x 570 x 800 | 2110 x 570 x 800 |
Features
- Manual Feed
- V-Belt Drive
- Fixed Headstock
- Moveable Table
- Adjustable depth
- Lighting equipment
- Tool ejector
- Belt cover with Micro-Switch
- Motor Guard
- E-Stop
- Main switch
- Turning sense selector
- Electrical equipment at low voltage
- Electrical equipment in a separate cabinet
- Drill Guard with Micro-Switch
- Fixed table
- Drill Guard with Micro-Switch
- CE Certified
Optional Equipment
- Frontal wheel for fine sensitive feed (V – 10020)
- Speed digital reader (for models with electronic variator) (TAK – 10021)
- Depth digital reader (LBC – 10022)
- Extra price for electronic variator (VE – 10023)
- Manual tapping system ir/rs (IR/RS – 10042)
- Manual tapping system ir/rs (for models with variator) (IR/RS (VE) – 10043)
- Automatic tapping system by lead screw (includes one tapping pitch) (RHP – 20070)
- Rotating table (MG – 20082)
- Cycles counter (for machines with hidroblock) (CC – 10085)
- Column supplement 200 mm. (SC – 10110)
- Extra price for hydroblock equipment (HB – 10120)
- Coolant equipment (ERB – 91118)
Erlo: Tradition and Innovation in Drilling and Tapping Machines
Erlo is a leading manufacturer of drilling and tapping machines, with over 50 years of experience in the industry. ERLO is known for reliable and durable machines, which are made with high-quality materials and components. ERLO’s machines are also easy to use and maintain, making them a good choice for machinists and metal fabricators of all levels of experience.
In addition to the standard range of drilling and tapping machines, also offered are customized solutions for specific applications are designed with a deep understanding of the custoer’s needs and the machine designs meet those needs perfectly.
It is the belief that tradition and innovation go hand-in-hand and ERLO has a committment to providing their customers with the latest technology and also value the traditional values of craftsmanship and quality.
If you are looking for a reliable and innovative drilling and tapping machine, Erlo is the perfect choice for you. Contact us today to learn more about our products and services.
ERLO products are proudly sold by The Workshop Press Company UK based in Kenilworth, Warwickshire.
