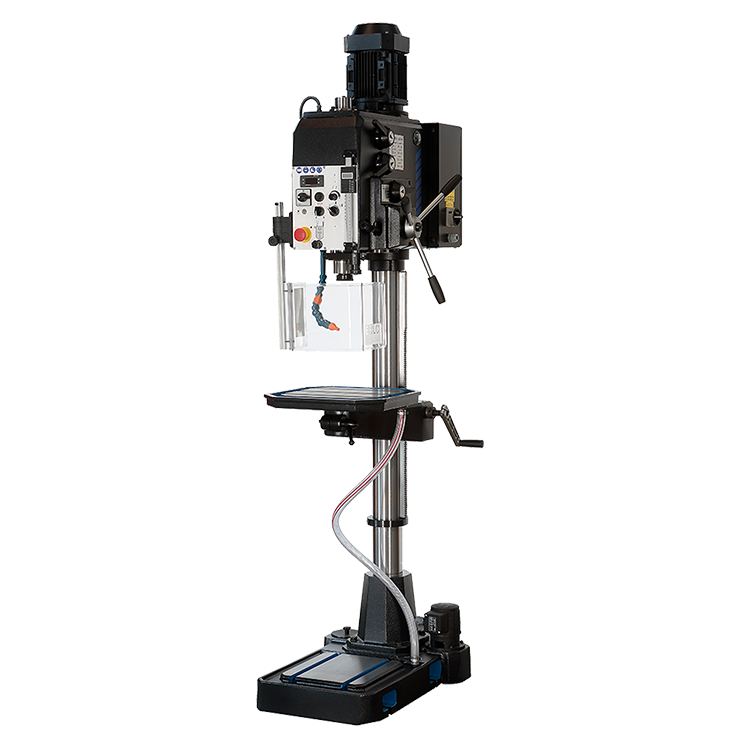

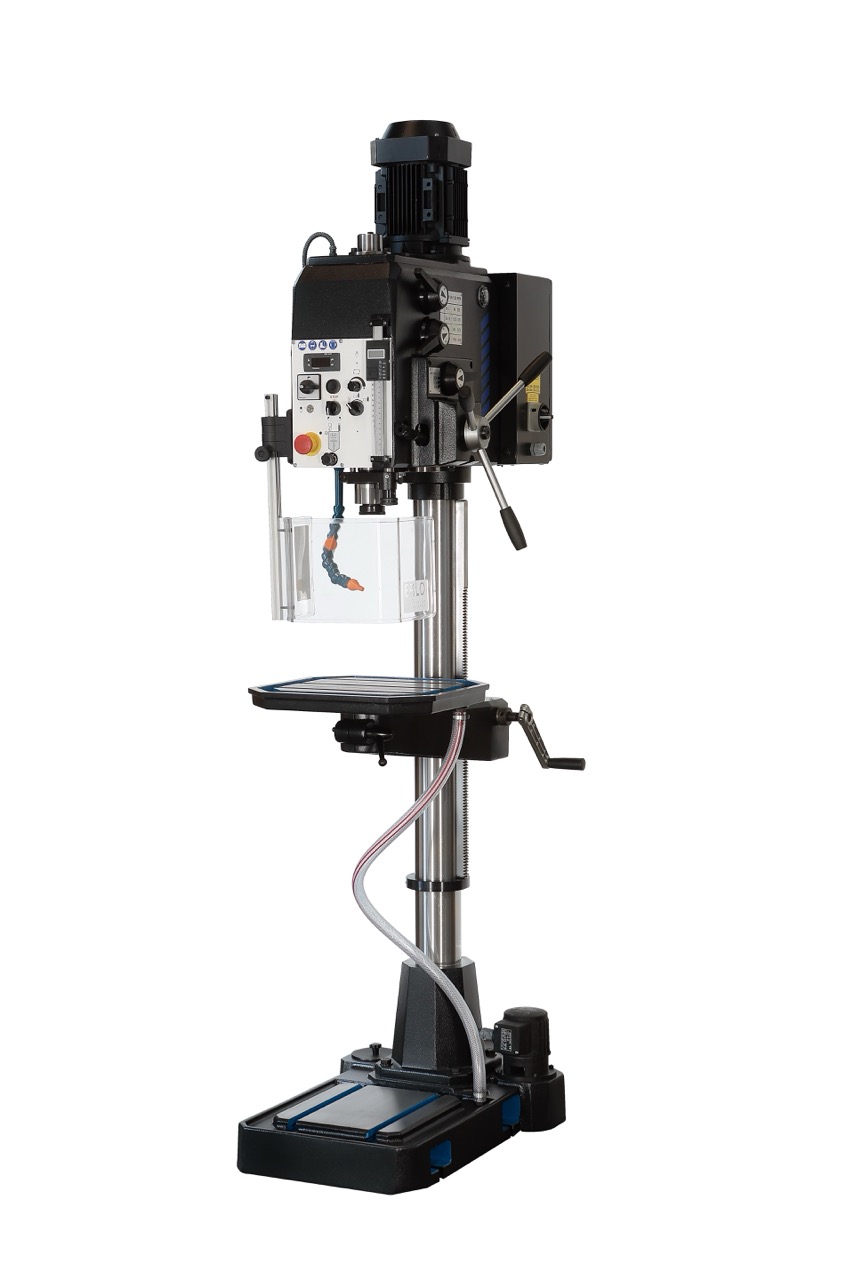

ERLO TS.30 Pillar Drill • Gear Driven • Manual Feed • 30 mm Drilling • 25 mm Tapping
Product Code: TS.30The TS-30 Column Pillar Drill is a powerful and versatile drill that is designed and built in the EU to enhance precision and efficiency in your drilling tasks.

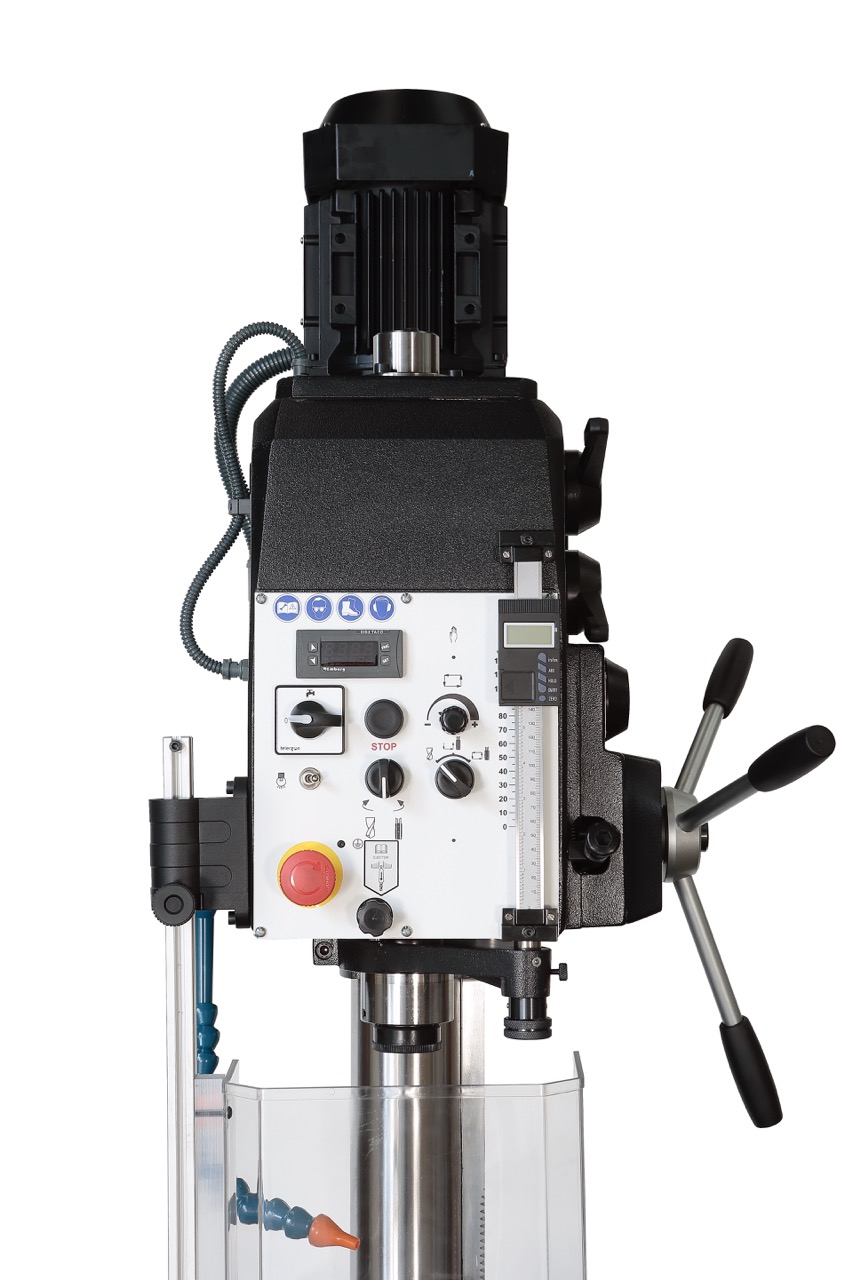

It is equipped with a wide range of features to meet all your drilling needs, including a precise manual feed for seamless control, a geare transmission or optimal power, a rotating headstock for easy adjustment of the drilling angle, a moveable table for enhanced flexibility, an adjustable depth end for controlled drilling depths, a built-in lighting equipment for clear visibility, a tool ejector for easy removal of drill bits, a motor guard, an emergency E-Stop push button along with a main switch for safety.
The TS.30 industrial column pillar drill has a turning sense selector for efficient drilling in both directions, low-voltage electrical equipment for safe operation, a separate cabinet for the electrical equipment, adrill guard with a micro-switch for operator safety, and a table that is stable and durable.
The TS.30 Industrial Drill for Metal is CE certified meeting stringent European safety standards.
Upgrade your drilling capabilities with our feature-rich, reliable, and CE-certified Column Pillar Drill. Experience enhanced precision, efficiency, and safety in all your drilling endeavors.
Original price was: £6,205.00.£5,995.00Current price is: £5,995.00. (£5,995.00 ex VAT)
- Description
- Additional Info
Specifications
- Drilling capacity (mild steel): 30 mm
- Tapping capacity (mild steel): M25
- Transmission: Gear
- Speed number and range (without variator): (8) 65 – 125 – 185 – 365 – 540 – 1.055 – 1.560 – 3.060 rpm.
- Speed number and range (with variator): A )45-125 B) 125-370 C) 380-1070 D) 1100-3100 rpm.
- Feed: Manual
- Main motor power (without variator) motor 1500/3000 rpm.: 1.5/1.9 HP
- Main motor power (with variator) motor 1500 rpm.: 2 HP
- Spindle cone: MT3
- Spindle stroke: 120 mm
- Spindle stroke with hydro block (series ts): 90 mm
- Distance spindle-column: 250 mm
- Distance spindle-table: Mín 170 / Max 660 mm
- Distance spindle-base: 1216 mm
- Column diameter: 100 mm
- Dimensions of the table (with 2 T-Slots): 270 x 300 mm
- Dimensions of the base without T-Slots (without coolant): 600 x 380 mm
- Dimensions of the base with T-Slots (with coolant): 665 x 400 mm
- CE Certified: Yes
- Weight: net / gross kg.: 260 / 320 Kg.
- Packaging dimensions and volume: 2200 x 600 x 900 mm / 1.18 m3
Features
- Manual feed – TS series
- Gear Driven
- Rotating Headstock
- Moveable Table
- Adjustable depth end
- Lighting equipment
- Tool ejector
- Motor guard and emergency push button
- Main switch
- Turning sense selector
- Electrical equipment at low voltage
- Electrical equipment in a separate cabinet
- Drill Guard with Micro-Switch
- Fixed table
- CE Certified
Optional Equipment
- Frontal wheel for fine sensitive feed (only for ts serie) (V – 10020)
- Speed digital reader (for models with electronic variator) (TAK – 10021)
- Depth digital reader (LBC – 10022)
- Extra price for electronic variator (VE – 10023)
- Manual tapping system ir/rs (IR/RS – 10042)
- Manual tapping system ir/rs (for models with variator) (IR/RS (VE) – 10043)
- Automatic tapping system by lead screw (includes one tapping pitch) (RHP – 20070)
- Rotating table (MG – 20082)
- Cycles counter (for machines with hidroblock) (CC – 10085)
- Column supplement 200 mm. (SC – 10110)
- Extra price for hydroblock equipment (only for ts serie) (HB – 10120)
- Coolant equipment (ERB – 91118)
Erlo: Tradition and Innovation in Drilling and Tapping Machines
Erlo is a leading manufacturer of drilling and tapping machines, with over 50 years of experience in the industry. ERLO is known for reliable and durable machines, which are made with high-quality materials and components. ERLO’s machines are also easy to use and maintain, making them a good choice for machinists and metal fabricators of all levels of experience.
In addition to the standard range of drilling and tapping machines, also offered are customized solutions for specific applications are designed with a deep understanding of the custoer’s needs and the machine designs meet those needs perfectly.
It is the belief that tradition and innovation go hand-in-hand and ERLO has a committment to providing their customers with the latest technology and also value the traditional values of craftsmanship and quality.
If you are looking for a reliable and innovative drilling and tapping machine, Erlo is the perfect choice for you. Contact us today to learn more about our products and services.
ERLO products are proudly sold by The Workshop Press Company UK based in Kenilworth, Warwickshire.
