Tube and Pipe Notcher – 150RB

Product Code: 430234156

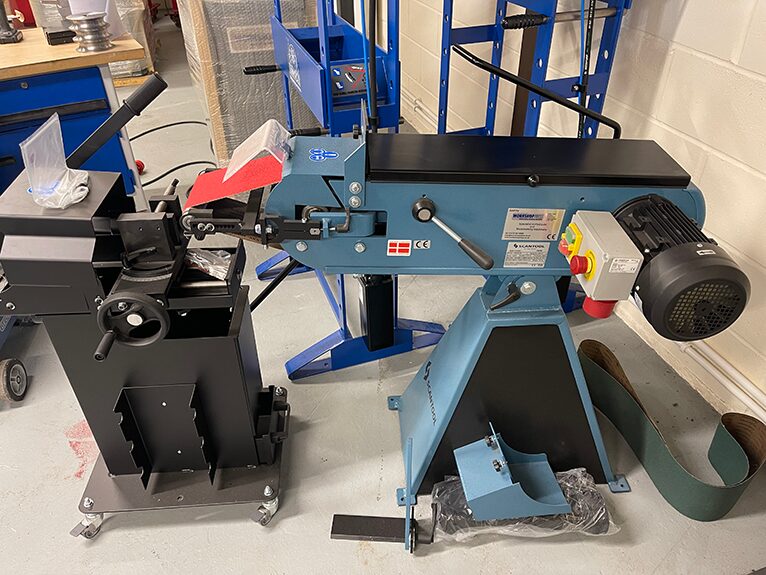

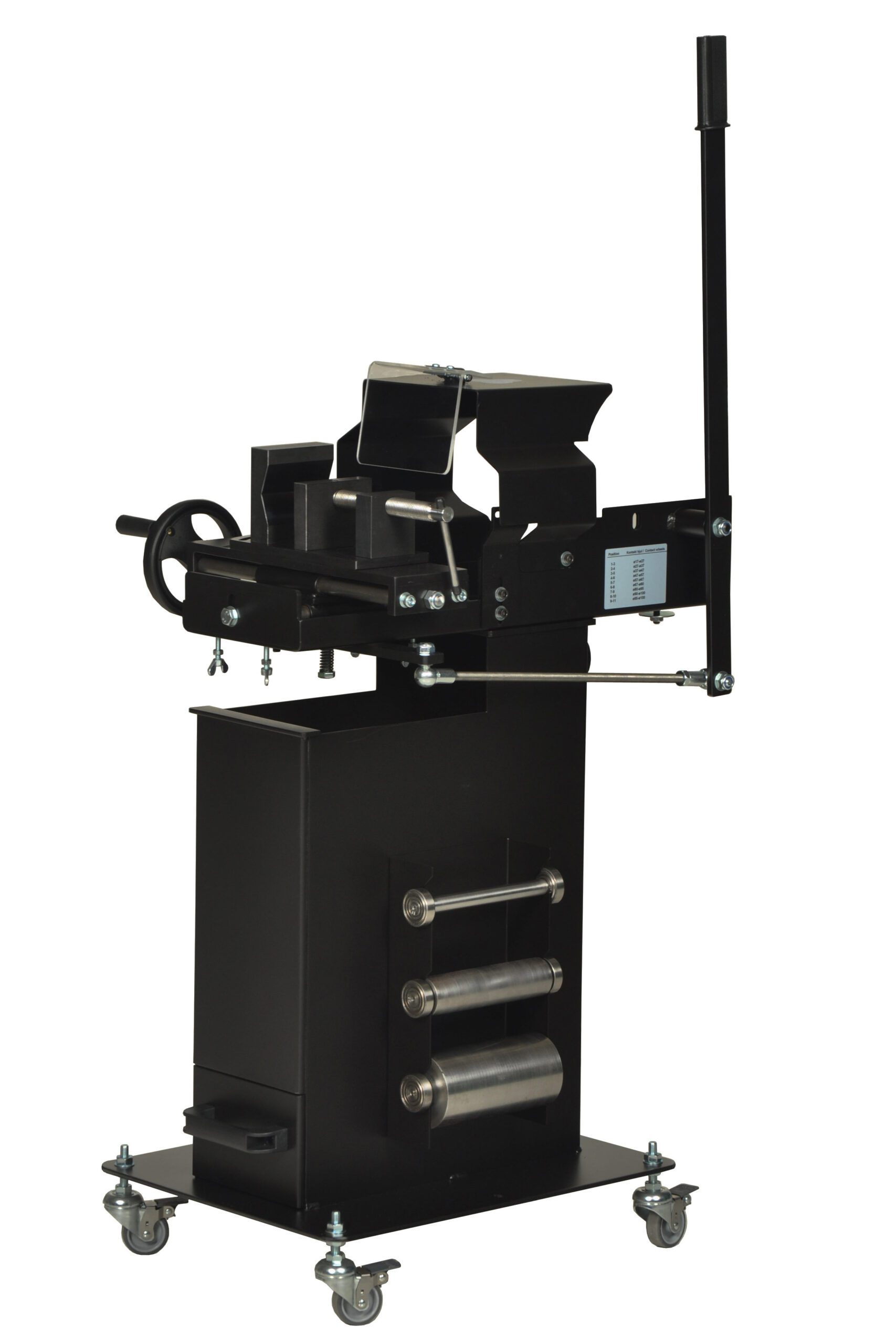

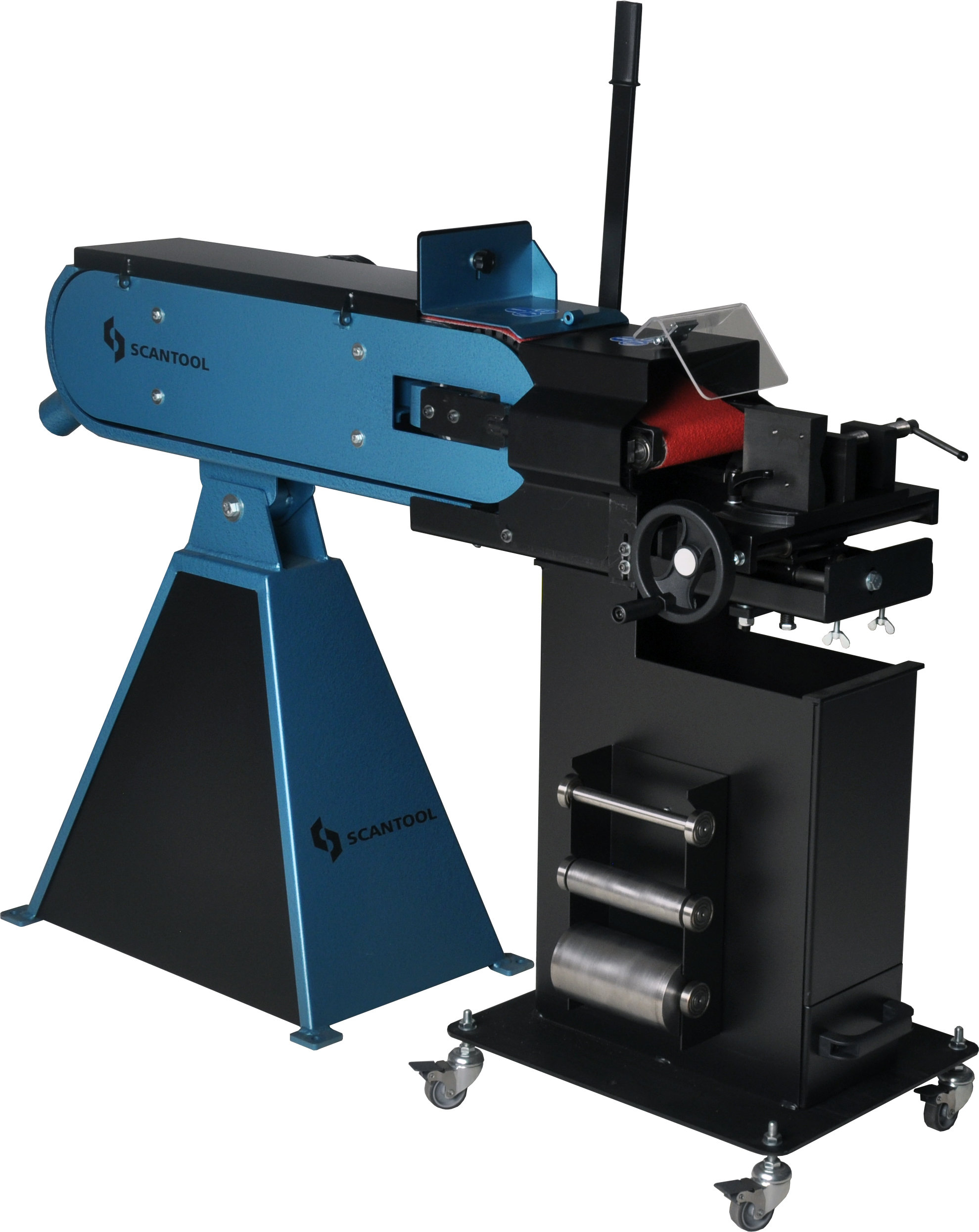

Scantool 150RB is, first and foremost, a pipe notcher which grind pipes of all types (round, square, solid) and with diameters of between 17 mm and 100 mm.
However, the RB and RBX models are more than just efficient pipe grinders.
It can be converted into a normal belt sander in just minutes when all pipe grinding tasks are finished. It can then be used for standard grinding tasks.
If you need to grind the pipes with a centreless grinder, you can attach the centreless unit onto the 75 model: 3 grinding processes in one machine.

This machine is CE Certified and comes with a 2 years Guarantee.

    Specification Sheet Download Here
    PRODUCT VIDEO
    Tube and Pipe Notcher - 150RB
    PRODUCT ENQUIRY
    • Description
    • Additional Info

    Technical specification for Tube and Pipe Notcher – 150RB

    • On Pedestal
    • Without exhaust
    • Grinding angles 0-60°
    • Grinding belt (mm) 150×2250 / 150×2000
    • Grinding table (mm) 150×605
    • Machine height (mm) 1020
    • Machine length (mm) 1350
    • Machine width (mm) 570
    • Motor (HP) 4,8
    • Net weight (kg) 140
    • Number of spindle speeds 1
    • Pipe dimension (ø mm) 17-100
    • Rpm 2800/3300
    • Saw speed (m/min) 30
    • Voltage 3×400/440V-50/60 Hz



    Tube & Pipe Notchers

    Tube notchers are an essential bit of equipment especially in a workshop were handrails, roll cages, and tubular structures are manufactured. A high-quality tube notcher can save a business time and money and at the same time improve the quality of products produced.
