C-Frame Press • PPCT-100 • 100 Ton • Upper Table • Lower Table • Touchscreen Control • **In Stock**

Product Code: PPCT-100

The RHTC PPCT-100 model is a 100 ton C-frame press with high speeds, and is designed to carry out tasks involving deep-drawing, stamping and forming in medium and high volumes. Also suitable to incorporate in automated production lines.

The T-Series C-frame presses were designed for high speeds and standard pressing capacities from 30 to 250 tons. Bespoke models are available. The PPCT series C-Frame Presses are designed to carry out metal pressing operations that involve deep-drawing, stamping and forming and is suitable for medium to high volume production runs. The standard configuration is suitable to be incorporated in automated production lines.

RHTC designed these Profi Press C-Frames with upper- and lower tables with DIN-650 T-grooves for quick and easy mounting of your toolsets. These presses are equipped with a ram cylinder and two auxiliary cylinders to achieve the high speeds. The hydraulic unit has an integrated air-oil cooling system.

This hydraulic C-frame press with comes with standard sliding side curtains and integrated light curtains. This control system permits programming the power, the cylinder stroke, speeds and pressure-time. The machine operator operates this hydraulic press by means of two-hands push buttons. The PPCT-100 also comes standard with a high quality Beijer X2 pro 7 HMI controller featuring a 7 inch TFT-LCD touch screen with 1.5 GB of application memory. This control system permits programming the tonnage, the cylinder stroke, speeds and pressure-time. The machine operator operates this hydraulic press by means of two-hands push buttons.

All T-Series C-Frame presses are manufactured according to the most current directives and norms and are CE Certified.

    • Description
    • Additional Info
    Technical specifications
    • Force [tn]: 100
    • Motor power [kw]: 11
    • Working speed [mm/sec]: 10
    • Approaching speed [mm/sec]: 105
    • Return speed [mm/sec]: 160
    • Maximum pressure [bar]: 250
    • Piston stroke [mm]: 400
    • Electrical Requirements: 400V, 50Hz, 3-Phase
    • Oil Requirement: Shell Tellus 46 or similar
    • Oil Requirment [Litres]: 200
    • Table size [mm]: 800 x 500
    • Vertical Daylight [mm]: 500
    • Total length [mm]: 1600
    • Total width (frontal) [mm]: 1700
    • Overall height [mm]: 2930
    • Weight [kg]: 5500
    Features of this 30 ton C-frame press
    • Beijer X2 pro 7 HMI Touch Screen control panel to program the pressure, cylinder stroke and the cylinder speeds. With a capacity to save various working cycles

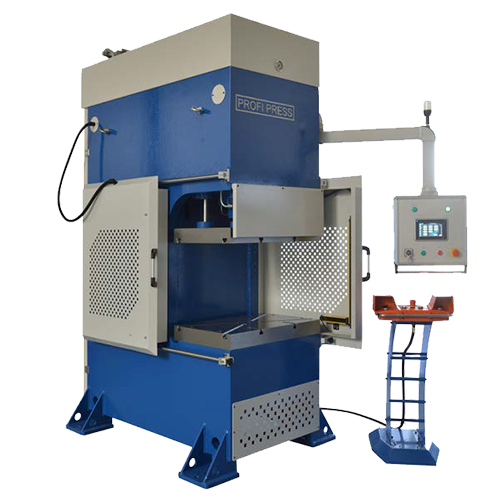

    • Lateral protection screens that slide open
    • Light guards
    • Chrome plated cylinder and a steel welded frame
    • Steel Welded Frame
    • T-slotted tables
    • One main cylinder and two auxiliary cylinders for high speeds
    • Hand button dual control operation
    • Speed: adjustable and variable and HMI controlled
    • Pressure: adjustable and variable and HMI controlled
    • Stroke of Piston: adjustable and variable and HMI controlled
    • Oil Pressure Gauge
    • Air cooling
    • CE Certified
    • User manual in English
    Optional accessories
    • Geometry adapted to your requirements (for example larger tables, a larger vertical light or a larger piston stroke)
    • HMI with Input and Output ports
    • Hydraulic ejector for bottom and side
    • Hydraulic cushion
    • Variable advance and return speeds
    • Single Phase power
    • 50 Hz and 60 Hz power

    C-Frame Hydraulic Presses PPCT Chart


    Welcome to the next level of metalworking excellence with our Profi Press C-Frame Press series. While this detailed blog post highlights the capabilities of the 100 Ton C-Frame Press (Model: PPCT-100), many of the features, specifications, and benefits apply to our other C-Frame Press models as well. Whether you’re working with a smaller or larger capacity press, you can expect the same precision, power, and efficiency that define the PPCT series. Dive into our comprehensive overview below to discover how these state-of-the-art machines can transform your metalworking capabilities and boost your productivity.

    Read the full blog post


    Beijer Controller Displaying Parameters for Upper Limit, Slow Down Limit, Lower Limit, Actual Position, Fast Speed Limit, Slow Speed Limit

    To learn more about the capabilities and advantages of the Beijer X2 Pro 7 HMI controller, read our detailed blog post..

    Read the full blog post.

    Find out how this advanced controller interacts with the PPCT Series C-Frame presses to enhance precision, efficiency, and operational ease.

    Suitable for various materials

    C-Frame Presses are useful in every factory or workshop and are not only useful for mild steel but a variety of other materials also such as copper, brass, stainless steel, and carbide.  C-Frame presses are used for punching, pressing, coining, straightening, forming, bending and, drawing and are useful in every industry.  The RHTC C Frame presses come equipped with standard tools, but custom tools are also available from WorkshopPress.co.uk and we can use our in-house 3D manufacturing capabilities to assist in the design of custom press tools to suit your application.

    The PPCT-100 C-Frame press is a powerful and versatile machine that can be used for a variety of metalworking applications. It has a pressing capacity of 100 tons, making it ideal for deep-drawing, stamping, and forming operations. The press also features a high-speed operation, making it ideal for high-volume production runs.

    The PPCT-100 C Frame press is also suitable for incorporation in automated production lines. It has a standard configuration that is suitable for automation, and it can be customized to meet the specific requirements of your production line.  All Profi Presses by RHTC are customisable, integrative, and have custom tools available.

    If you are looking for a powerful and versatile C-frame press that can help you improve your metalworking operations, then the PPCT-100 is the perfect choice for you.

    All of the RHTC Profi Press C Presses are manufactured in Europe according to the latest CE standards and are supplied directly from our warehouse with a CE certificate.  All components and materials are of the best possible quality which lends to the machines hefty weight of 5500 kg.

    This press comes with a standard 2-Year Warranty and a CE Certificate as standard.

    Please contact Workshoppress today with any questions by telephone at +44 (0) 800 999 1090, or by email at info@workshoppress.co.uk.
