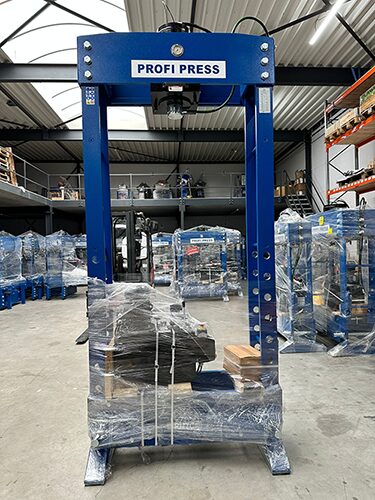

Workshop Press • Extended Vertical Daylight • Any Tonnage
Product Code: 10058-SPECIAL-2000mm-Vertical-DaylightEngineered for precision and durability, our 100-ton workshop press features a fixed head and an extended daylight of 2000 mm, making it ideal for industrial applications requiring deep press fits and straightening of long, heavy objects.
Please contact for prices
- Description
- Additional Info
Our customisable extended vertical daylight workshop press is a powerhouse in any workshop, designed for high-precision tasks across various industries. Whether you require high tonnage for heavy-duty operations or a lower tonnage for more delicate work, this press can be tailored to your specific needs. The extended vertical daylight allows for greater flexibility in handling larger or irregularly shaped workpieces. Manufactured in the EU from top-quality materials, this press features motorised hydraulic operation with dual-speed control, a movable and dual-acting main cylinder, and an adjustable working table. Additionally, it offers the option to switch to manual operation via a hand pump for detailed presswork. Optional accessories and custom tools are available to further enhance its capabilities, making it the ultimate choice for workshops that demand precision, versatility, and durability.
Technical specifications
- Tonnage Options: Customisable
- Maximum pressure: Up to 258 bar
- Piston stroke: Customisable
- Oil delivery: 5.64/17.2 ltr/min
- Oil capacity: 46 dm³
- Working speed: 3 mm/sec
- Approaching speed: Up to 10 mm/sec
- Return speed: Up to 12 mm/sec
- Motor power: varies by model
- Voltage: 400V, 3-Phase
- Frequency: 50 Hz
- Revolutions per minute: 3000 rpm
- Insulation protection: IP54
- Working width: Customisable
- Weight: Approx. 970 kg (varies by model)
Features
- Movable cylinder (left-right)
- Dual acting cylinder
- Integrated pressure manometer
- Pressure regulation

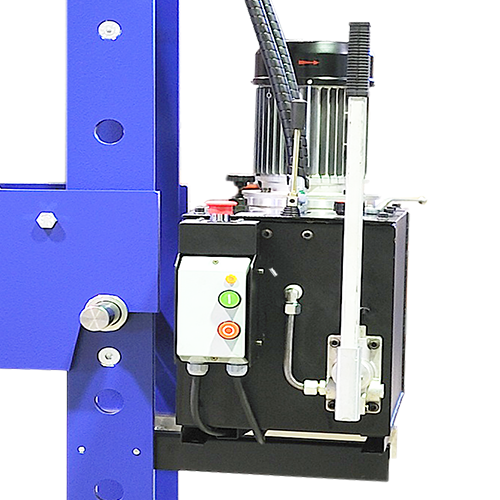

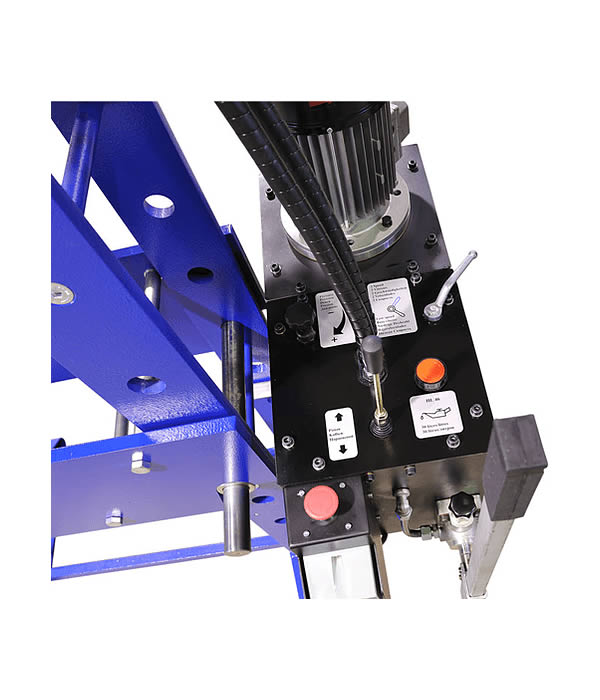

- Hydraulic unit with two speeds

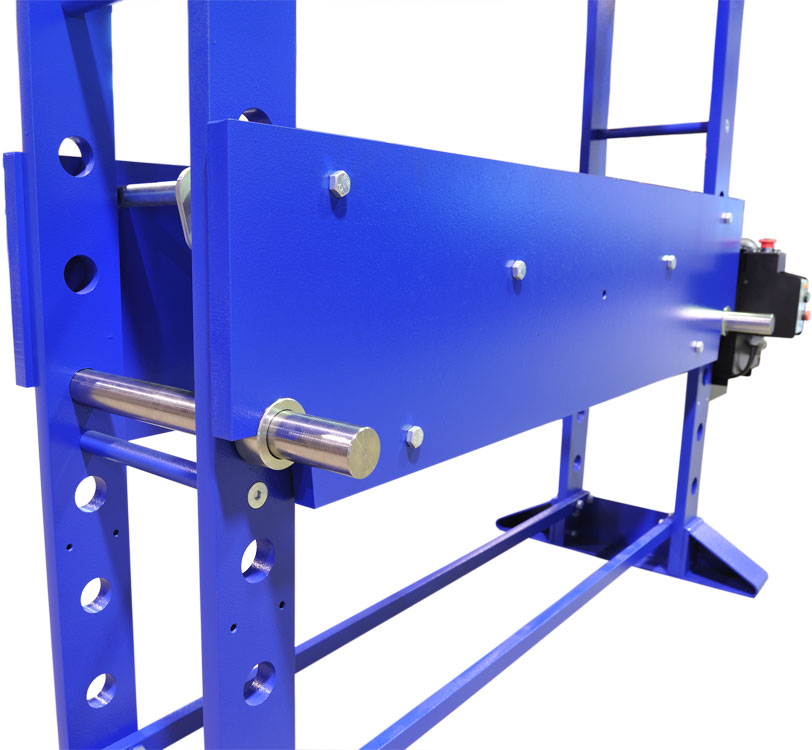

- In height adjustable working table
- Joystick for the control of the piston
- Hand pump for precise press work
Dimensions in mm
- A: 2140
- B: 1350
- C: 755
- D: 1100
- E: 300
- F: 1665
- G: 150
- H+I: 2000
- J: 865
- K: 250
Please refer to dimensional graphic above.
Diameters
- Inside diameter of cylinder [mm]: 220
- Diameter of piston rod [mm]: 90

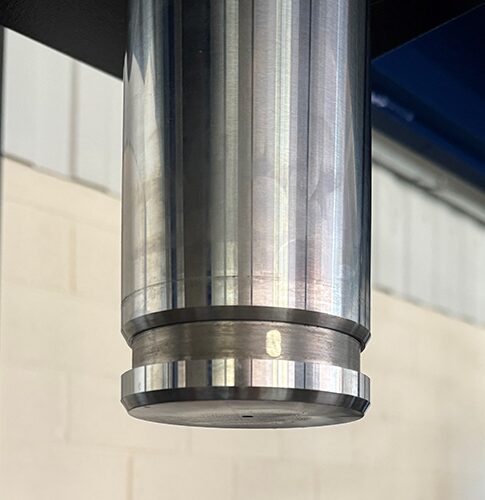

- Diameter of piston head [mm]: 120
Customisations & Modifcations
- 1-Phase Motor
- 60 Hz Motor
- Bespoke dimensions
- System Inetegrations
- Bespoke Applications
Optional Accessories & Tools
- V-Block sets
- foot pedals
- hand controls
- additional safety features
- system integrations
- mandrel sets
- corner rounding notchers
- corner wedge-shaped punches
- corner notchers
- hole punches of all shapes and sizes
- tube and pipe notching
- drain hole nibbler punch
- brake press tooling
- custom tools
Technical Features:
-
- Robust construction with a fixed head for maximum stability
- 2000 mm internal vertical daylight for large components
- 100-ton pressing capacity for heavy-duty applications
- Precision-engineered for optimal force distribution
- Adjustable pressure settings for versatile operation
- Integrated safety features for operator protection
- High-quality hydraulic system for consistent performance
- Easy to operate with manual and semi-automatic controls
- Durable construction for long-term industrial use
- Customizable to meet specific operational needs
Product Uses:
- Pressing bearings on long drive shafts
- Working with long tubes, pipes, and shafts
- Straightening large and lengthy objects
- Assembly and disassembly of heavy machinery components
- Maintenance and repair of industrial equipment
- Prototype development and testing
- Material compaction and shaping
- Automotive and aerospace component fabrication
- Structural fabrication and correction
- Research and development in engineering fields
Customisable workshop press with extended vertical daylight and tonnage options. Ideal for precision pressing, straightening, and other heavy-duty tasks. European-engineered, CE certified, and backed by a 2-year warranty.
