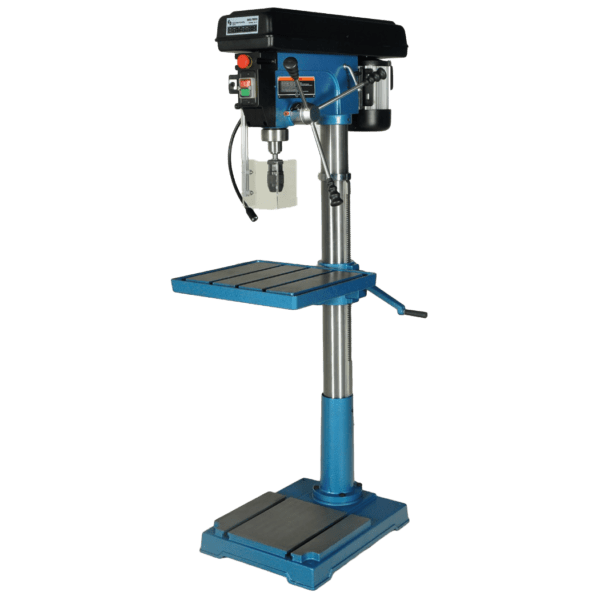

Scantool 25A • Pillar Drill • V-Belt Driven • 32 mm • MT4 • 3-Phase
Product Code: 100766000The SCANTOOL 25A V-belt driven drill press is a high-performance, professional-grade machine designed for workshops and industrial applications. Featuring a Morse Taper No. 4, reversible spindle rotation, and a large tilt-able working table, this drill press delivers precision, versatility, and reliability. With advanced safety features and robust construction, the SCANTOOL 25A is engineered to meet the demands of both home workshops and industrial environments.
- Description
- Additional Info

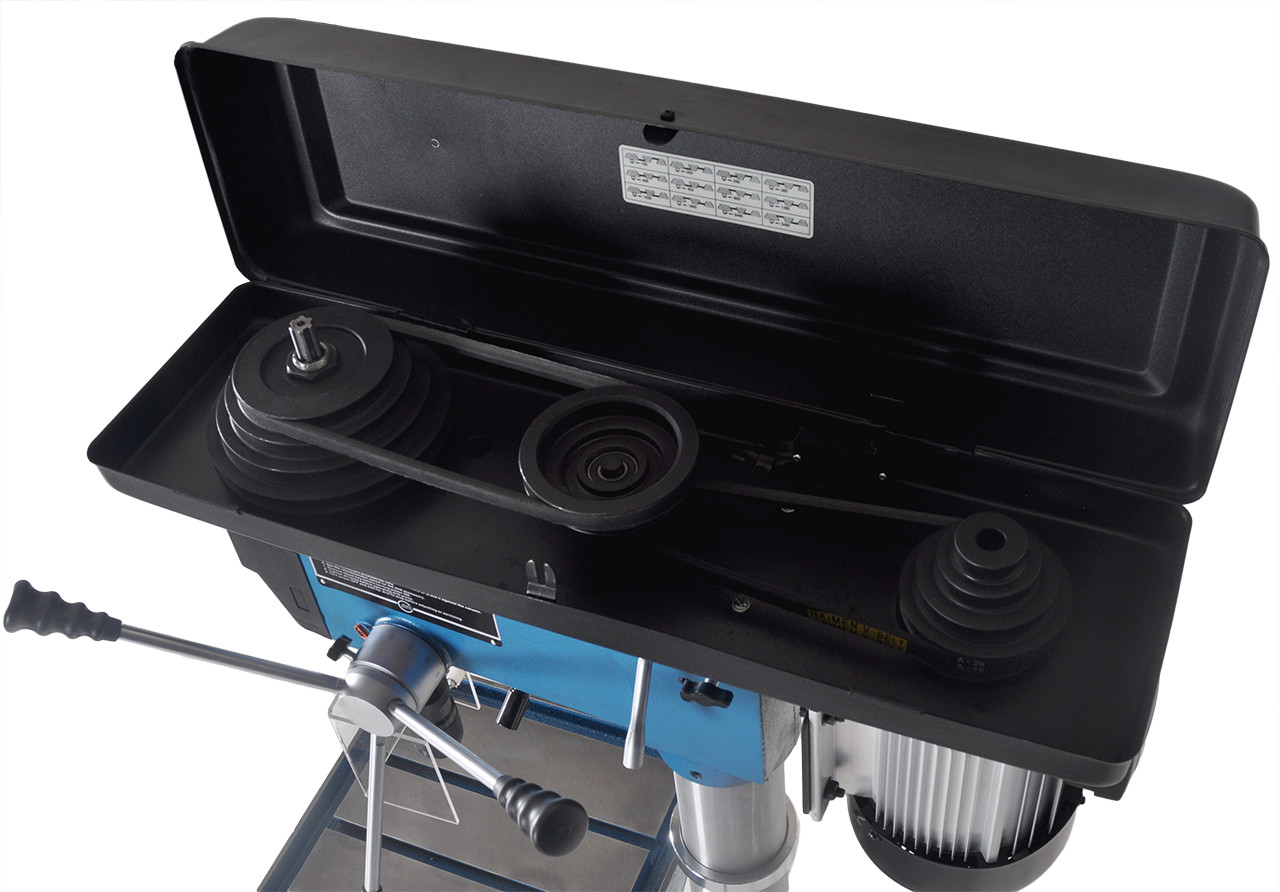

The SCANTOOL 25A V-belt driven drill press is an exceptional choice for professional workshops and industrial settings. This drill press is equipped with a Morse Taper No. 4 for versatile drilling applications and a reversible spindle rotation for enhanced functionality. The large working table is tilt-able with a degree scale, allowing for precise adjustments. Safety is a priority, with a separate emergency stop, working light, safety guard with a micro switch, and a safety switch for belt speed changes. Manufactured using advanced technology on semi-automatic production lines, the SCANTOOL 25A ensures high quality, easy operation, and long life. Competitively priced, this drill press offers outstanding value and performance.
Technical Specifications
- RPM: 120-3480
- Voltage: 3x400V – 50 Hz
- Motor: 1.5 HP / 1.1 kW
- Drilling Capacity: 1-32 mm diameter
- Taper: MT4
- Drill Chuck: 16/B16 mm
- Max. Spindle Travel: 120 mm
- Throat Depth: 254 mm
- Swing Capacity: 550 mm
- Max. Distance Spindle/Table: 710 – 1180 mm
- Table Size: 475 x 425 mm
- Base Size: 575 x 445 mm
- Max. Tilt of Table: +/- 45°
- Number of Spindle Speeds: 12
- Reversible: Yes
- On Pedestal: Yes
- Height: 1700 mm
- Net Weight: 125 kg
Features and Uses
- Morse Taper No. 4 for versatile drilling applications
- Reversible spindle rotation for increased functionality
- Large, tilt-able working table with degree scale
- Auto lock chuck for secure bit holding

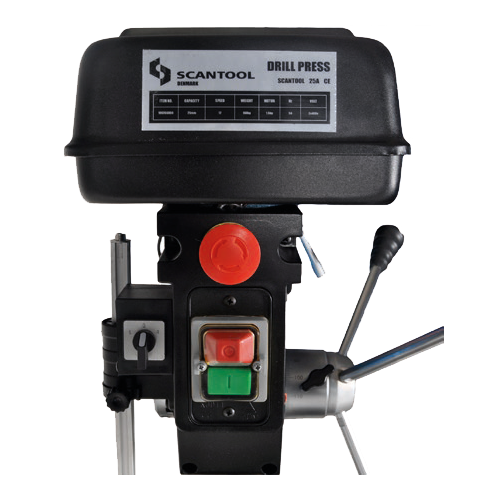

- Separate emergency stop and working light for enhanced safety
- Safety guard complete with micro switch
- Designed for both home workshops and industrial use
- Manufactured using advanced technology on semi-automatic production lines
- Simple construction for high quality and long life
- Competitively priced for professional use
Industries and Their Uses
- Metal Fabrication: Precision drilling for metal components
- Manufacturing: High-volume drilling in production lines
- Automotive: Drilling and maintenance tasks for vehicle parts
- Aerospace: Precision drilling for aircraft components
- Construction: Versatile drilling for building and structural components
- Home Workshops: High-quality drilling for DIY and small-scale projects
Professional-grade SCANTOOL 25A V-belt driven drill press with Morse Taper No. 4, reversible spindle, large working table, and advanced safety features. Ideal for workshops and industrial use.
