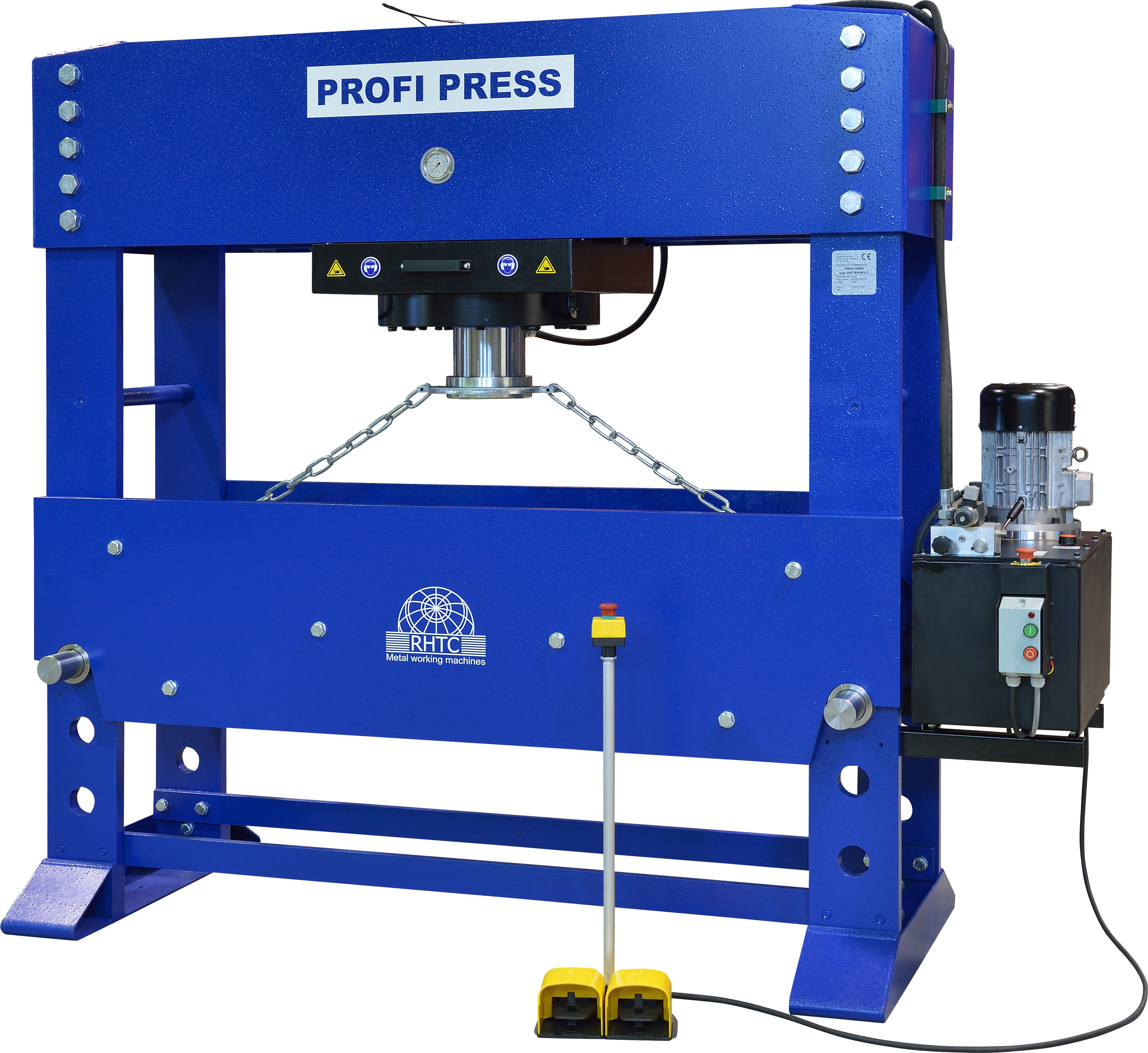

Workshop Press • 300 Ton • Motorised / Manual • Movable Cylinder • 2 Speeds • 1750 mm working width
Product Code: 10090-300T-WSPThis press is built in the EU and is a 300-ton press (2943 kN) that is constructed of top-quality steel and hydraulic components and is supplied with an adjustable cylinder (left and right) and an adjustable working table with a width of 1750 mm and with vertical positions in increments of 150mm. The primary cylinder is a top-quality double-acting (dual-acting) cylinder.
The press is supplied with a pressure regulator allowing accurate control of pressing pressure and the main cylinder can be controlled either manually with a hand pump or when in motorized mode with a joystick. 2 speeds are available, and the speed is easily changed with a hand lever.
Profi Motorised Workshop Presses are manufactured in the EU and are CE Certified and are readily available from our stock. This machine has a 2-year warranty.
Please contact for prices
- Description
- Additional Info
Technical specifications
- Pressure force [kN]: 2943
- Maximum pressure [bar]: 260
- Piston stroke [mm]: 480
- Oil delivery [ltr/min]: 12/33
- Oil capacity [dm³]: 100
- Working speed [mm/sec]: 1.80
- Approaching speed [mm/sec]: 4.90
- Return speed [mm/sec]: 6.20
- Motor power [kW]: 5.5
- Voltage [V]: 400/3
- Frequency [Hz]: 50/60
- Revolutions per minute [rpm]: 2800
- Insulation protection [IP]: 54
- Working width [mm]: 1750
- Weight [kg]: 3150
Features
- Movable cylinder (left-right)
- Dual acting cylinder
- Integrated pressure manometer
- Pressure regulation
- Hydraulic unit with two speeds
- In height adjustable working table
- Joystick for the control of the piston
- Hand pump for precise press work
- 2 year warranty
Dimensions
- A: 2250
- B: 2120
- C: 985
- D: 1750
- E: 500
- F: 2550
- G: 177
- H: 180
- I: 531
- J: 1085
- K: 420
Diameters
- Inside diameter of cylinder [mm]: 380
- Diameter of piston rod [mm]: 180
- Diameter of piston head [mm]: 215
Customisations & Modifcations
- 1-Phase Motor
- 60 Hz Motor
- Bespoke dimensions
- System Inetegrations
- Bespoke Applications
Optional Accessories & Tools
- V-Block sets
- foot pedals
- hand controls
- additional safety features
- system integrations
- mandrel sets
- corner rounding notchers
- corner wedge-shaped punches
- corner notchers
- hole punches of all shapes and sizes
- tube and pipe notching
- drain hole nibbler punch
- brake press tooling
- custom tools
What is a Workshop Press
A Hydraulic Workshop Press is a pressing machine that implements hydraulics to compress materials in a variety of applications. Like most shop equipment, hydraulic presses range in quality from basic models but WorkshopPress.co.uk only offers top quality RHTC hydraulic workshop presses. When purchasing an RHTC Hydraulic Press from us it will contribute to your company’s profitability. In addition, when a workshop, maintenance, manufacturing, or assembly area implements hydraulic workshop press machinery your capabilities are tremendously expanded and you then have the ability to perform a wide variety of different pressing processes and forming processes as well as folding, straightening, forming, riveting, and pressing work. RHTC presses offer usefulness, durability, reliability, functionality, and stability enabling the ability to get more use out of it, and more things are done efficiently saving you time and most importantly money.
Workshop Press Uses
Some Typical Shop Press Uses include: metalwork bending and folding, holding welding projects steady, punching, straightening uneven metal parts, bearing pressing, flattening warped parts, separating rusted parts, compressing, crushing used oil filters to remove excess oil, automobile part construction, jewelry-making, ammunition, and bracket bending.
