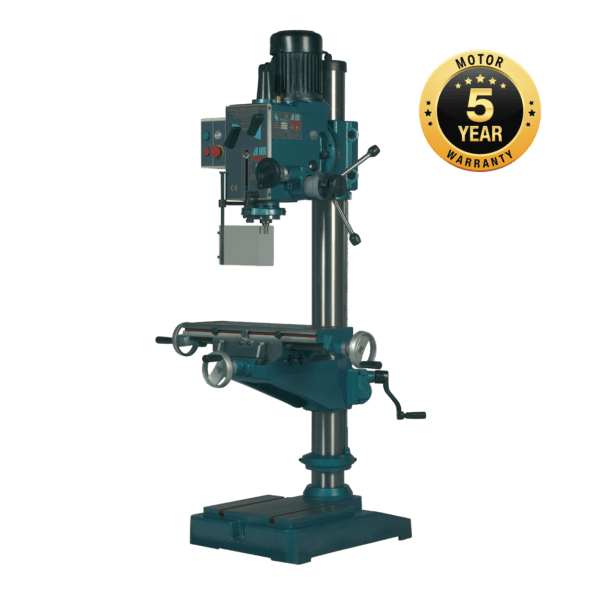

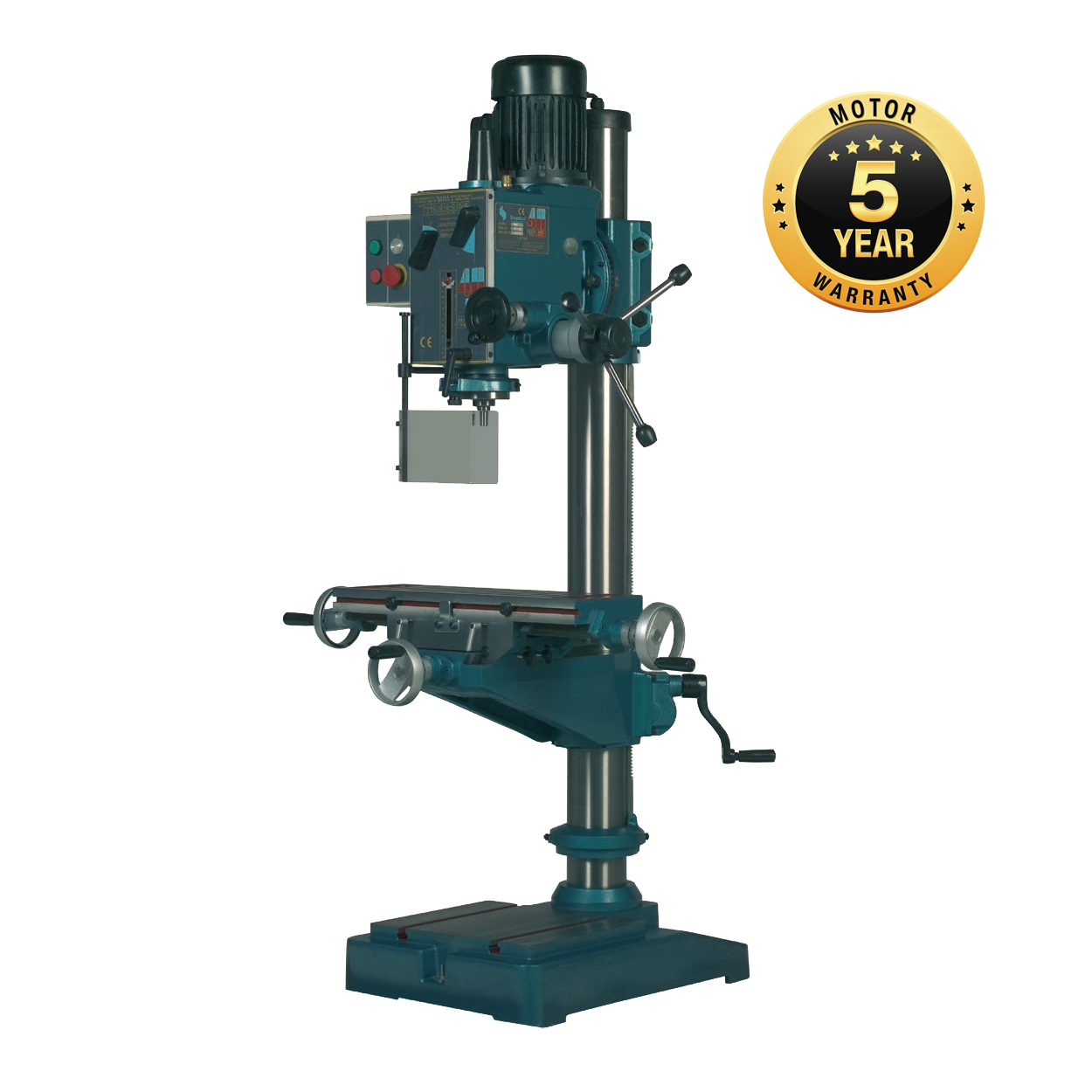

Scantool 40K AUT • Mill Drill Machine-Autofeed • Gear Driven • Drilling Capacity: 40 mm • Table 585 x 190 mm • MT4
Product Code: 100721101The Scantool 40K AUT is a heavy-duty milling and drilling machine designed for industrial applications. This machine features a geared head, automatic feed, and a tilting head, providing versatility and precision in milling and drilling tasks. With its robust construction and noiseless operation, the 40K AUT ensures reliable performance. It is equipped with a 2-speed motor offering 12 spindle speeds and a reversible function for operational flexibility. Quick delivery and competitive prices make it an excellent choice for demanding tasks.
Please contact for prices
- Description
- Additional Info
The Scantool 40K AUT milling and drilling machine is engineered for high performance in industrial settings. It features a geared head design with automatic feed, providing seamless operation for various drilling and milling tasks. The machine operates quietly and includes a 2-speed motor offering 12 spindle speeds. Its sturdy construction ensures durability, while the reversible function enhances versatility. This model is known for its reliability, quick delivery, and competitive pricing, making it an excellent choice for demanding milling and drilling applications.
Technical Specifications:
- RPM: 50 – 2500
- Voltage: 3x400V – 50 Hz
- Motor Power: 1 HP (0.75 kW)
- Drilling Capacity: 40 mm
- Morse Taper: MT3
- Column Diameter: 115 mm
- Feed Rates: 0.12 / 0.18 / 0.25 mm/s
- Cross Table Size: 585 x 190 mm
- Distance Between Table & Spindle: 470 mm
- Throat Depth: 260 mm
- Tapping Capacity: M22
- Number of Spindle Speeds: 12
- Speed Numbers – Motor: 2
- Automatic Feed: Yes
- Reversible: Yes
- On Pedestal: Yes
- Height: 1960 mm
- Net Weight: 300 kg
Features and Uses:
- Geared head type for precise operations
- Automatic feed for enhanced productivity
- Sturdy construction ensuring durability
- Noiseless operation for a better working environment
- Tilting head for versatile positioning
- 2-speed motor with 12 spindle speeds for varied tasks
- Reversible function for operational flexibility
- Quick delivery and competitive pricing
Industries Using the Machine and Their Uses:
- Metalworking Shops: Precision drilling and milling
- Manufacturing Plants: Heavy-duty milling operations
- Educational Institutions: Teaching tool for machining
- Maintenance Departments: Repair and fabrication tasks
Heavy-duty geared head milling and drilling machine with automatic feed, 12 spindle speeds, and robust construction.
