LT 360/1000 Precision Metal Lathe • Swing 360 mm • Centres 1000 mm

Product Code: 36001022

The LT 360/1000 metal lathe is engineered for precision and robust performance with a swing over bed of 360mm and a distance between centers of 1000mm. Featuring a Ø52mm spindle bore and the advanced Spindlenose Camlock D1-8, this lathe is designed for versatility and high accuracy in metalworking. Equipped with a heavy-duty bed width of 187mm and a multi-toolholder system, the LT 360/1000 is ideal for handling medium to large projects with ease.

Experience unparalleled precision and efficiency with our LT 360/1000 Industrial Metal Lathe. Designed to handle even the most demanding tasks, this lathe is perfect for industries requiring high accuracy and robust performance. To learn more about how our lathes can transform your machining processes and boost your productivity, check out our detailed guide on precision metal lathes here.

    • Description
    • Additional Info

    This lathe offers variable spindle speeds from 70-2000 rpm, allowing for a flexible machining approach to suit different materials and tasks. It includes a range of metric and imperial threading capabilities, making it suitable for various industrial applications, including automotive, engineering, and manufacturing sectors.

    Technical Specifications:

    • Part Number: 36001022
    • Swing over Bed [mm]: 360mm
    • Swing over Gap [mm]: 502mm
    • Swing over Cross Slide [mm]: 160mm
    • Tail Diameter [ø mm]: 42mm
    • Tail Height [mm]: 180mm
    • Spindlenose Camlock: D1-8
    • Distance Between Centers [mm]: 1000mm
    • Width of Bed [mm]: 187mm
    • Spindle Bore [mm]: 52mm
    • Spindlenose Taper: MK-6
    • Number of Spindle Speeds: 8
    • Range of Spindle Speeds [rpm]: 70-2000rpm
    • Metric Threads [mm]: 0.4-7.0mm
    • Imperial Threads: 4~56 T.P.I.
    • Range of Longitudinal Feed [mm]: 0.05~1.39mm

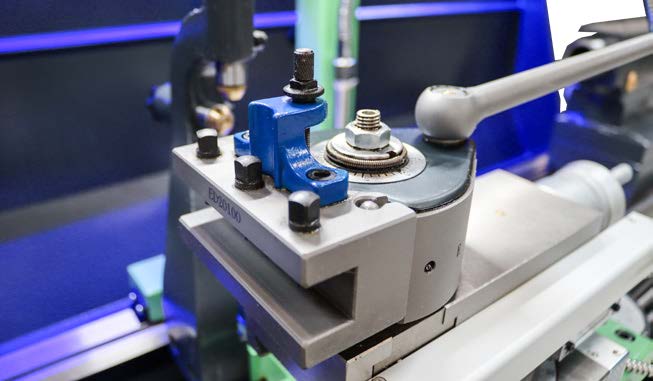

    • Type of Toolholder: Multi
    • Max. Travel of Compound Slide [mm]: 95mm
    • Max. Travel of Cross Slide [mm]: 160mm
    • Max. Travel of Main Slide [mm]: 1000mm
    • Tailstock Spindle Travel [mm]: 100mm
    • Taper in Tailstock Spindle: MK-3
    • Voltage: 3 Ph, 400V, 50 Hz
    • Motor [Kw]: 1.5 kW
    • Length [mm]: 1930mm
    • Width [mm]: 760mm
    • Height [mm]: 1600mm
    • Weight [kg]: 510kg

    Features and Uses:

    • High-precision digital readout for accurate machining
    • Engineered for prolonged industrial use with minimal downtime
    • Multi-toolholder system enables swift tool changes, optimizing workflow
    • Excellently suited for processing large and elongated materials
    • Ideal for fabricating oversized industrial parts in mining and marine industries
    • Supports intensive manufacturing processes in the heavy equipment sector
    • Provides educational opportunities in technical schools for advanced machining practices
    • Crucial for the production of structurally critical components in aerospace and automotive industries

    Robust and precise, the LT 360/1000 metal lathe supports complex machining needs with exceptional accuracy and stability.
